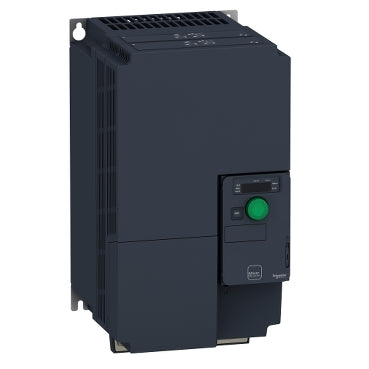

ATV320D11M3C | Schneider Electric | Variable speed drive
ATV320D11M3C | Schneider Electric | Variable speed drive
Part #: ATV320D11M3C Manufactured by: Schneider Electric

ATV320D11M3C | Schneider Electric | Variable speed drive

Regular price
$2,442.00
Sale price
$2,442.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The Altivar Machine ATV320 is a variable speed drive tailored for Original Equipment Manufacturers (OEMs), offering enhanc...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV320D11M3C
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV320D11M3C | Schneider Electric | Variable speed drive
    ATV320D11M3C | Schneider Electric | Variable speed drive
ATV320D11M3C | Schneider Electric | Variable speed drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV320D11M3C

Description / Specifications

Description

The Variable Speed Drive, Altivar Machine ATV320, is part of a range designed specifically for Original Equipment Manufacturers (OEMs). With a compact design, it allows for vertical stacking of drives within machine frames. Operating at a rated power of up to 11kW / 15hp and a rated voltage range from 200V to 240V AC, it is suitable for various applications.

Featuring robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive can withstand harsh environmental conditions, including ambient temperatures of up to 60°C without additional cooling. It offers functions tailored for common applications, such as torque and speed accuracy at very low speeds, high dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors.





Technical Specifications



Specifications





Part Number

ATV320D11M3C

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive ALTIVAR 320 SERIES

Motor Compatibility

Asynchronous and Synchronous

Power Rating Multiplier

-1

Power Rating

11 kW (15 hp)

Supply Voltage

200-240 VAC

Frequency

50/60 Hz

Form Factor

Compact





Information About ATV320D11M3C



The Altivar Machine ATV320 series presents variable speed drives tailored for Original Equipment Manufacturers (OEMs). Its compact design facilitates vertical stacking within machine frames. Operating within a power range of up to 11 kW / 15 hp, it accepts voltages ranging from 200V to 240V AC. Engineered with robustness in mind, its IEC 60721-3-3 class 3C3 coated printed circuit boards ensure machine availability in harsh environments, enduring temperatures of up to 60°C sans additional cooling.

Equipped with features ideal for various applications, including torque and speed precision at low speeds, dynamic performance with flux vector control sans sensor, and an extended frequency range for high-speed motors, the ATV320 series also enables parallel connection of motors and special drives, employing the voltage/frequency ratio. It provides static speed accuracy and energy-saving functionality for open-loop synchronous motors.

Weighing 6.8 kg and measuring 180mm wide, 330mm high, and 198mm deep, the ATV320 series integrates five safety functions into its software, aiding machines in meeting safety standards with or without a Preventa safety module. Configuration of these functions is facilitated through the SoMove software.

Tailored for OEMs, the Altivar Machine ATV320 suits both simple and advanced applications, spanning packaging, material handling, textile, material working, mechanical actuators, and hoisting. It conforms to IEC, UL, TUV, KC, and other international standards.

Supplementary mounting accessories and external options, including braking resistors, line chokes, motor chokes, and additional EMC filters, are available, contingent upon the drive rating. Delivered as a single package, it is designed for vertical mounting (+/- 10 °) on a panel, facilitated by four fixing holes.
