ATV320D11N4C | Schneider Electric Variable speed drive
- Regular price
- $877.00
- Sale price
- $877.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

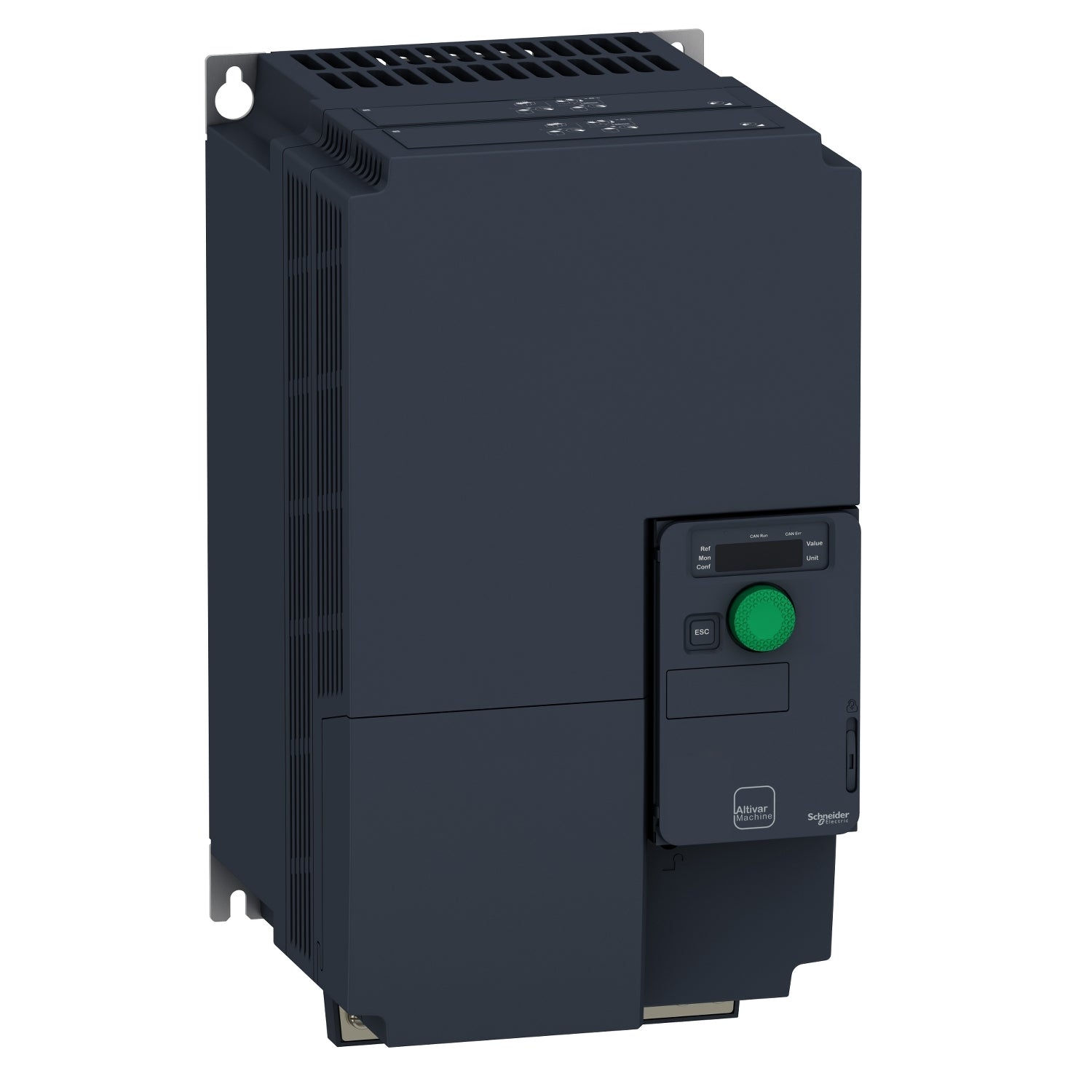

Product Description P/N: ATV320D11N4C
Description
The ATV320D11N4C is a variable speed drive belonging to the Altivar Machine ATV320 series, tailored for Original Equipment Manufacturers (OEMs). Featuring a compact design, it facilitates vertical stacking within machine frames. Operating with a rated power of 11 kW and a voltage range spanning from 380V to 500V AC, it ensures efficient performance in various applications.
Constructed with robust IEC 60721-3-3 class 3C3 coated printed circuit boards, the ATV320D11N4C offers durability in harsh environmental conditions, capable of operating at temperatures up to 60°C without additional cooling. Equipped with advanced functionalities such as torque and speed accuracy at low speeds, flux vector control without sensors, and parallel connection capabilities for motors and specialized drives, it caters to diverse operational needs.
Weighing 6.8kg and measuring 180mm wide, 330mm high, and 192mm deep, the ATV320D11N4C meets application requirements across various sectors, including packaging, material handling, textiles, mechanical actuators, and hoisting. It complies with international standards such as IEC, UL, TUV, KC, and others, ensuring adherence to quality and safety regulations.
Technical Specifications
|
Part # |
ATV320D11N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Controls & Indicators |
|
Subcategory |
Frequency Converter Range of Product |
|
Product or component type |
Variable Speed Drive |
|
Product specific application |
Complex Machines |
|
Variant |
Standard Version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall Mount |
|
Rated supply voltage (Us) |
380...500 V - 15...10% |
|
Nominal output current |
27.7 A |
|
Motor power kW |
11 kW (Heavy Duty) |
|
EMC filter |
Integrated |
|
IP degree of protection |
IP20 |
|
Minimum switching current |
Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
|
Method of access |
Slave CANopen |
|
4 quadrant operation possible |
True |
|
Synchronous motor control profile |
Vector Control without Sensor |
|
Transient overtorque |
170…200% of Nominal Motor Torque |
|
Maximum output frequency |
0.599 kHz |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC Injection |
|
Integrated brake chopper |
True |
|
Maximum input current |
36.6 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
22.2 kVA at 500 V (Heavy Duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5% |
|
Prospective line Isc |
22 kA |
|
Base load current at high overload |
27.7 A |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
156.0 m³/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID Regulator |
|
Speed accuracy |
+/- 10% of Nominal Slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70°C |
Information About ATV320D11N4C
The ATV320D11N4C, belonging to the Altivar Machine ATV320 series, represents a variable speed drive solution tailored specifically for Original Equipment Manufacturers (OEMs). Characterized by its compact form factor, it enables vertical stacking within machine frames, optimizing space utilization.
Operating with a rated power of up to 11 kW or 15 hp and a rated voltage ranging from 380V to 500V AC, the ATV320D11N4C ensures efficient performance across various applications. Its robust design, featuring IEC 60721-3-3 class 3C3 coated printed circuit boards, enhances machine availability in harsh environmental conditions, capable of withstanding ambient temperatures of up to 60°C without supplemental cooling.
Equipped with functionalities tailored for common applications, including precise torque and speed control at low speeds, dynamic performance with sensorless flux vector control, and an extended frequency range suitable for high-speed motors, the ATV320D11N4C offers versatility and reliability. Additionally, it supports parallel connection of motors and special drives through voltage/frequency ratio control, static speed accuracy, and energy-saving features tailored for open-loop synchronous motors.
Weighing 6.8 kg and measuring 180 mm wide, 330 mm high, and 192 mm deep, the ATV320D11N4C is designed to meet diverse application requirements, spanning industries such as packaging, material handling, textiles, material working, mechanical actuators, and hoisting.
Adhering to international standards including IEC, UL, TUV, KC, and others, the ATV320D11N4C guarantees compliance with quality and safety regulations. Mounting accessories and external options such as braking resistors, line chokes, motor chokes, and additional EMC filters are available, tailored to the drive rating.
