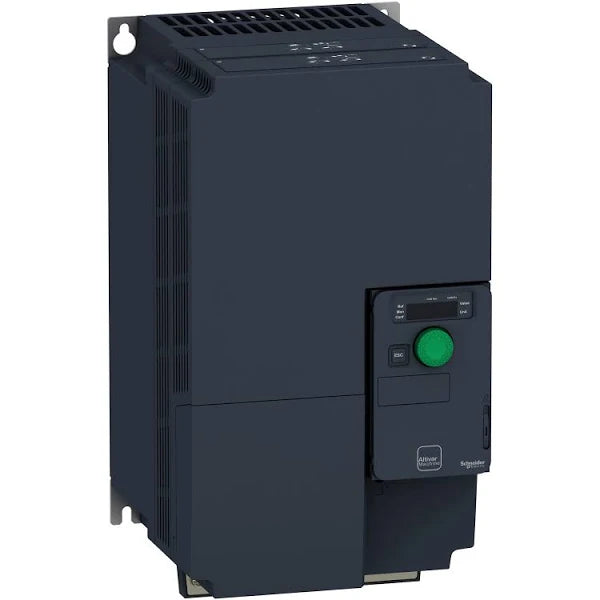

ATV320D15M3C | Schneider Electric | Drive
- Regular price
- $2,347.00
- Sale price
- $2,347.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320D15M3C
Description
The Schneider Electric ATV320D15M3C AC Drive, part of the Altivar Machine ATV320 range, is specifically tailored for Original Equipment Manufacturers (OEMs) seeking variable speed drive solutions. With its compact design, the ATV320 series enables vertical stacking within machine frames, optimizing space utilization.
Operating at a rated power of up to 15 kW (20 hp) and a rated voltage ranging from 200V to 240V AC, the ATV320D15M3C drive offers robust performance suitable for various industrial applications. Its IEC 60721-3-3 class 3C3 coated printed circuit boards enhance durability, allowing operation in harsh environmental conditions, including temperatures up to 60°C without additional cooling.
Technical Specifications
Specifications
|
Part Number |
ATV320D15M3C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Altivar 320 Series |
|
Type |
Variable Speed |
|
Motor Compatibility |
Asynchronous and Synchronous |
|
Power Rating Multiplier |
-1 |
|
Power Rating |
15 kW |
|
Three Phase Supply Voltage |
200-240 VAC |
|
Frequency |
50/60 Hz |
|
Form Factor |
Compact |
|
Weight |
6.9 kg |
|
Dimensions (W x H x D) |
180 mm x 330 mm x 198 mm |
|
Cooling |
Integrated heatsink and forced ventilation |
|
Protection |
IP20 rated enclosure |
|
Communication Protocols |
Modbus RTU, CANopen |
|
Safety Functions |
STO, SS1, SLS, SMS, GDL |
Information About ATV320D15M3C
The Schneider Electric ATV320D15M3C AC Drive belongs to the compact ATV320 series, designed specifically for Original Equipment Manufacturers (OEMs) seeking variable speed drives. With a power rating of up to 15kW / 20hp and a supply voltage range of 200V to 240V AC, it provides versatile functionality for a wide array of applications.
Featuring a compact form factor, the ATV320 series allows for vertical stacking within machine frames, optimizing space utilization. Its robust design, including IEC 60721-3-3 class 3C3 coated printed circuit boards, enhances durability, enabling operation in harsh environments with ambient temperatures of up to 60°C without requiring additional cooling mechanisms.
The drive incorporates advanced functions suitable for various applications, including torque and speed accuracy at low speeds, dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors. Additionally, it supports parallel connection of motors and special drives, offering energy-saving capabilities for open-loop synchronous motors.
Weighing 6.9kg and measuring 180mm wide, 330mm high, and 198mm deep, the ATV320D15M3C is compact yet powerful. Its drive software includes five safety functions, configurable using SoMove software, ensuring compliance with safety requirements even without a Preventa safety module.
Designed to meet the needs of OEMs across industries such as packaging, material handling, textile, material working, mechanical actuators, and hoisting, the ATV320 series conforms to IEC, UL, TUV, KC, and other international standards.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
