ATV320D15N4B | Schneider Electric | Variable speed drive
- Regular price
- $917.00
- Sale price
- $917.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320D15N4B
Description

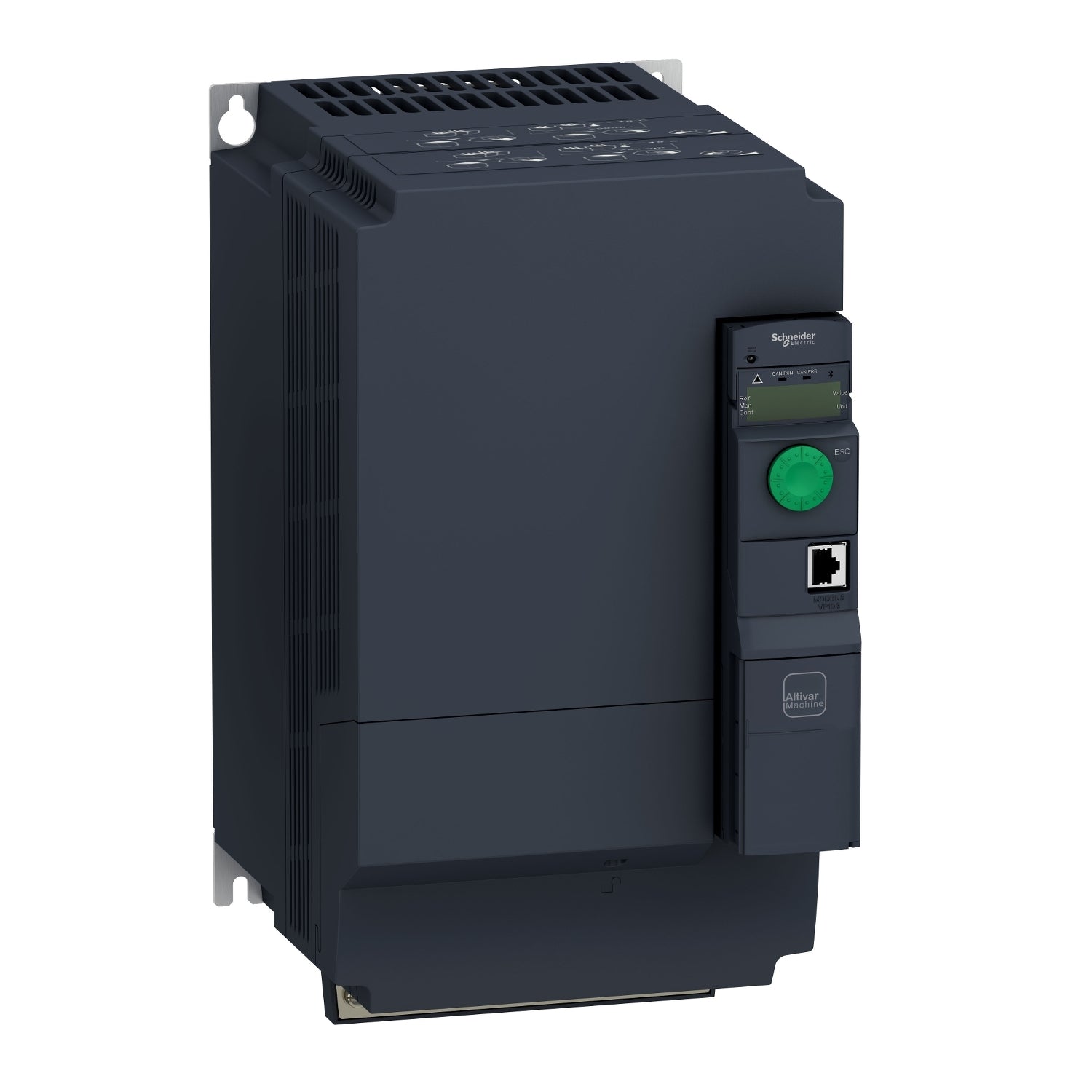

The ATV320D15N4B is a variable speed drive from the Altivar Machine ATV320 series, engineered to power 3-phase synchronous and asynchronous motors. Its book form factor facilitates a straightforward and space-efficient installation within automation cabinets. Operating at a rated power of up to 15kW / 20hp and a rated voltage range of 380V to 500V AC, it ensures versatile performance across various applications.
Featuring robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive ensures extended machine availability even in challenging environmental conditions, such as ambient temperatures of up to 60°C, without requiring additional cooling measures. It incorporates a range of functions tailored for common applications, including precise torque and speed control at low speeds, dynamic performance with flux vector control without sensor, and an expanded frequency range for high-speed motors.
Technical Specifications
|
Part # |
ATV320D15N4B |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Controls & Indicators |
|
Subcategory |
Frequency Converter |
|
Range of Product |
Altivar Machine ATV320 |
|
Product or Component Type |
Variable speed drive |
|
Product Specific Application |
Complex machines |
|
Variant |
Standard version |
|
Format of the drive |
Book |
|
Mounting Mode |
Wall mount |
|
Us rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
33.0 A |
|
Motor power kW |
15.0 kW heavy duty |
|
EMC filter |
Class C3 EMC filter integrated |
|
IP degree of protection |
IP20 |
|
Minimum switching current |
Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
|
Method of access |
Slave CANopen |
|
4 quadrant operation possible |
True |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Switching frequency |
2...16 kHz adjustable |
|
|
4...16 kHz with derating factor |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Line current |
47.3 A 380 V heavy duty |
|
|
33.3 A 500 V heavy duty |
|
Maximum Input Current per Phase |
47.3 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
28.8 kVA 500 V heavy duty |
|
Network Frequency |
50-60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
22 kA |
|
Base load current at high overload |
4 A |
|
Power dissipation in W |
Fan 452.0 W 380 V 4 kHz |
|
With safety function Safely Limited Speed (SLS) |
True |
|
Operating position |
Vertical +/- 10 degree |
|
Environmental class (during operation) |
Class 3C3 according to IEC 60721-3-3 |
|
|
Class 3S2 according to IEC 60721-3-3 |
|
Maximum acceleration under shock impact |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
41211.58 Gal/hr(US) (156.0 m3/h) |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-13…158 °F (-25…70 °C) |
|
Ambient air temperature for operation |
14…122 °F (-10…50 °C) without derating |
|
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATV320D15N4B
The ATV320D15N4B is a variable speed drive belonging to the Altivar Machine ATV320 series. Designed to power 3-phase synchronous and asynchronous motors, its book form factor facilitates a straightforward and space-efficient installation within automation cabinets. Operating within a power range of up to 15 kW / 20 hp and a voltage range spanning from 380V to 500V AC, this drive is suitable for various industrial applications.
Its robust design, featuring IEC 60721-3-3 class 3C3 coated printed circuit boards, ensures operational reliability even in harsh environmental conditions, including ambient temperatures of up to 60°C, eliminating the need for supplementary cooling mechanisms. The drive encompasses a range of functions tailored for diverse applications, including precise torque and speed control at low speeds, dynamic performance enhancement through flux vector control without sensor, and an extended frequency range catering to high-speed motors.
Furthermore, the ATV320D15N4B supports parallel connection of motors and specialized drives utilizing voltage/frequency ratio, static speed accuracy, and energy-saving features for open-loop synchronous motors. Safety is paramount, with the drive software incorporating five safety functions that enable compliance with safety requirements, either independently or in conjunction with a Preventa safety module. These functions are configured using SoMove software.
Primarily intended for Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 meets application requirements across various sectors such as packaging, material handling, textile, material working, mechanical actuators, and hoisting. It adheres to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions.
Certified by CE, UL, CSA, NOM, EAC, and RCM, the drive offers compatibility with a range of mounting accessories and external options, including braking resistors, line chokes, motor chokes, and additional EMC filters, tailored to the drive rating. It is designed for vertical mounting on panels using four fixing holes and seamlessly integrates into Schneider Electric’s EcoStruxure Machine through DTM.
