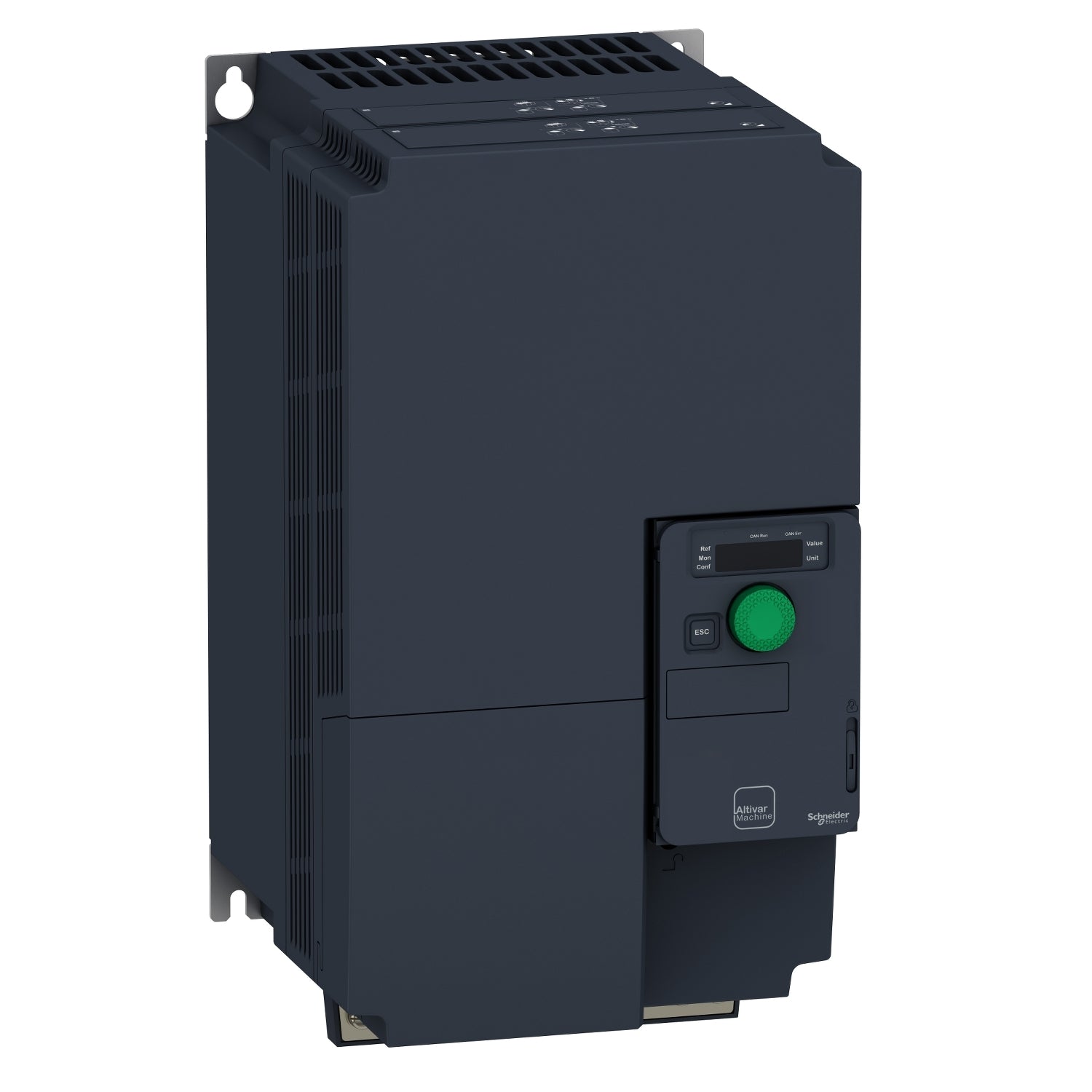

ATV320D15N4C | Schneider Electric Variable speed drive
- Regular price
- $937.00
- Sale price
- $937.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320D15N4C
Description
Technical Specifications
|
Part # |
ATV320D15N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of produc |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
Variant |
Standard version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall mount |
|
Communication port protocol |
Modbus serial |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
33.0 A |
|
Motor power kW |
15.0 kW for heavy duty |
|
EMC filter |
Integrated |
|
IP degree of protection |
IP20 |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Switching frequency |
2...16 kHz adjustable |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Line current |
47.3 A at 380 V (heavy duty) |
|
Maximum input current |
47.3 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
28.8 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
22 kA |
|
Base load current at high overload |
33.0 A |
|
Power dissipation in W |
Fan: 452.0 W at 380 V, switching frequency 4 kHz |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
156.0 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for operation |
-10…50 °C without derating |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320D15N4C
The ATV320D15N4C is a variable speed drive belonging to the Altivar Machine ATV320 series, specifically tailored for Original Equipment Manufacturers (OEMs). Offering a compact design, it facilitates vertical stacking within machine frames. Operating within a power range of up to 15 kW / 20hp, it functions within a voltage range of 380V to 500V AC, accommodating 3 phases.
Designed with robustness in mind, it features IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring durability in harsh environmental conditions. Withstanding temperatures up to 60°C without requiring supplementary cooling enhances machine availability.
Incorporating functionalities suited for various applications, it ensures torque and speed accuracy even at low speeds. Its high dynamic performance, facilitated by flux vector control without sensors, caters to diverse operational demands. Additionally, it offers an extended frequency range suitable for high-speed motors.
Enabling parallel connection of motors and specialized drives through voltage/frequency ratio, it ensures static speed accuracy and energy efficiency, particularly with open-loop synchronous motors.
Weighing 6.9 kg and with dimensions of 180mm (width) x 330mm (height) x 192mm (depth), the Altivar Machine ATV320 is versatile, meeting the requirements of industries such as packaging, material handling, textiles, material working, mechanical actuators, and hoisting.
Conforming to international standards including IEC, UL, TUV, and KC, it ensures compatibility and reliability across different regulatory frameworks. Mounting accessories and external options such as braking resistors, line chokes, motor chokes, and additional EMC filters are available, tailored to specific drive ratings.
Delivered in two packages, the product is designed for vertical mounting on panels, facilitated by four fixing holes. Full integration within Schneider Electric’s EcoStruxure Machine ecosystem through DTM streamlines configuration, control, and diagnostics.
Direct configuration, control, and diagnostics are possible through SoMachine and SoMove software, utilizing the same software brick (DTM), enhancing operational efficiency.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
Technical Specifications
|
Part # |
ATV320D15N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of produc |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
Variant |
Standard version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall mount |
|
Communication port protocol |
Modbus serial |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
33.0 A |
|
Motor power kW |
15.0 kW for heavy duty |
|
EMC filter |
Integrated |
|
IP degree of protection |
IP20 |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Switching frequency |
2...16 kHz adjustable |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Line current |
47.3 A at 380 V (heavy duty) |
|
Maximum input current |
47.3 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
28.8 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
22 kA |
|
Base load current at high overload |
33.0 A |
|
Power dissipation in W |
Fan: 452.0 W at 380 V, switching frequency 4 kHz |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
156.0 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for operation |
-10…50 °C without derating |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320D15N4C
The ATV320D15N4C is a variable speed drive belonging to the Altivar Machine ATV320 series, specifically tailored for Original Equipment Manufacturers (OEMs). Offering a compact design, it facilitates vertical stacking within machine frames. Operating within a power range of up to 15 kW / 20hp, it functions within a voltage range of 380V to 500V AC, accommodating 3 phases.
Designed with robustness in mind, it features IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring durability in harsh environmental conditions. Withstanding temperatures up to 60°C without requiring supplementary cooling enhances machine availability.
Incorporating functionalities suited for various applications, it ensures torque and speed accuracy even at low speeds. Its high dynamic performance, facilitated by flux vector control without sensors, caters to diverse operational demands. Additionally, it offers an extended frequency range suitable for high-speed motors.
Enabling parallel connection of motors and specialized drives through voltage/frequency ratio, it ensures static speed accuracy and energy efficiency, particularly with open-loop synchronous motors.
Weighing 6.9 kg and with dimensions of 180mm (width) x 330mm (height) x 192mm (depth), the Altivar Machine ATV320 is versatile, meeting the requirements of industries such as packaging, material handling, textiles, material working, mechanical actuators, and hoisting.
Conforming to international standards including IEC, UL, TUV, and KC, it ensures compatibility and reliability across different regulatory frameworks. Mounting accessories and external options such as braking resistors, line chokes, motor chokes, and additional EMC filters are available, tailored to specific drive ratings.
Delivered in two packages, the product is designed for vertical mounting on panels, facilitated by four fixing holes. Full integration within Schneider Electric’s EcoStruxure Machine ecosystem through DTM streamlines configuration, control, and diagnostics.
Direct configuration, control, and diagnostics are possible through SoMachine and SoMove software, utilizing the same software brick (DTM), enhancing operational efficiency.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
