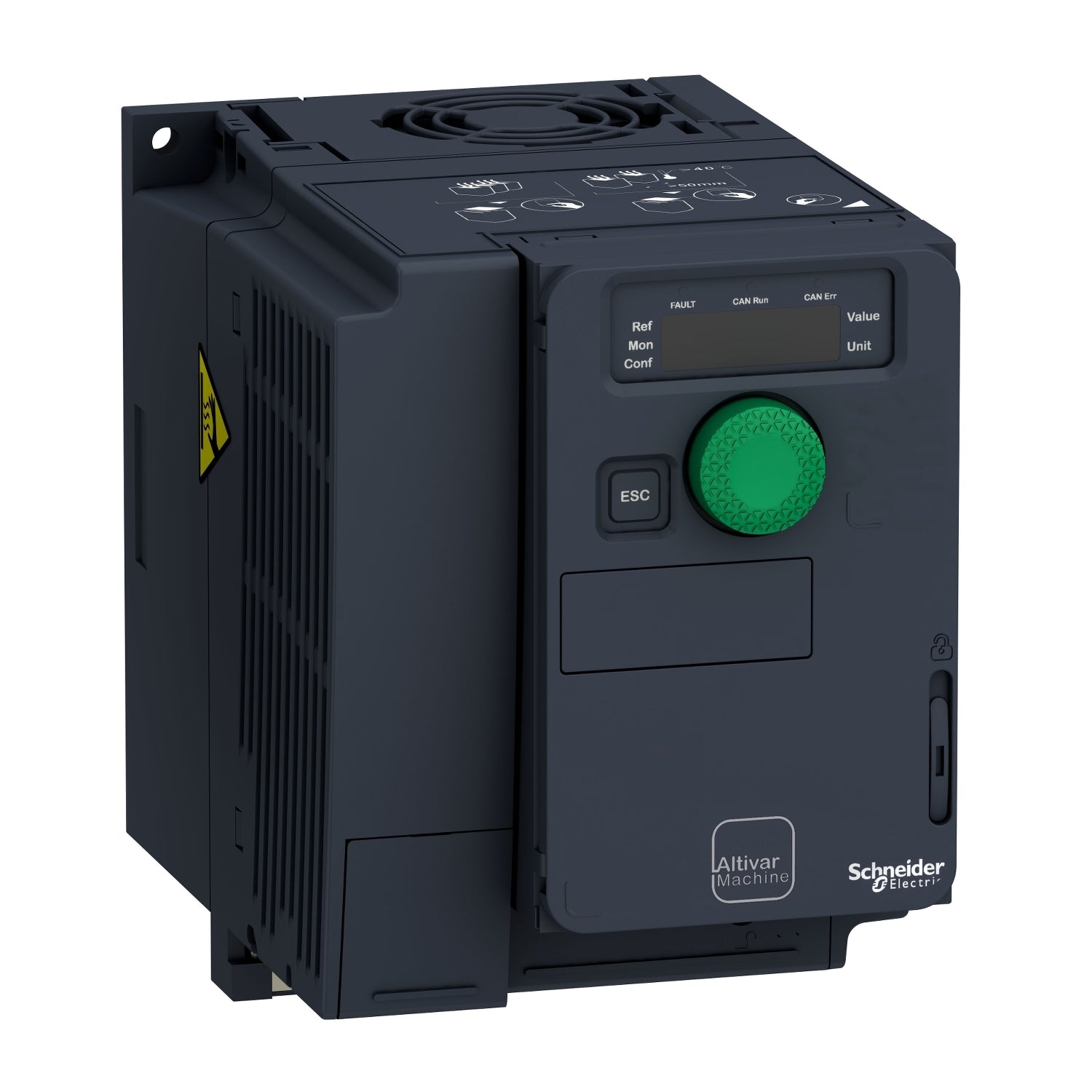

Product Description P/N: ATV320U04N4C
Description
The ATV320U04N4C is a variable speed drive from the Altivar Machine ATV320 series, designed to power 3-phase synchronous and asynchronous motors. Its compact form factor enables vertical stacking of drives within machine frames. Operating within a rated power range of up to 0.37kW / 0.5hp and a rated voltage of 380V to 500V AC, this drive features robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards, extending machine availability in harsh environmental conditions, including ambient temperatures of up to 60°C without additional cooling requirements.
Incorporating functions suitable for diverse applications, such as torque and speed accuracy at low speeds, high dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors, the ATV320U04N4C provides parallel connection of motors and special drives using the voltage/frequency ratio, static speed accuracy, and energy savings for open-loop synchronous motors.
Technical Specifications
|
Part # |
ATV320U04N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Controls & Indicators |
|
Subcategory |
Frequency Converter |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
1.5 A |
|
Motor power kW |
0.37 kW for heavy duty |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP20 |
|
Minimum switching current |
Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
|
Method of access |
Slave CANopen |
|
4 quadrant operation possible |
True |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Line current |
2.1 A at 380 V (heavy duty) |
|
Maximum input current |
2.1 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
1.4 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
5 kA |
|
Base load current at high overload |
27.5 A |
|
Power dissipation in W |
Fan: 23.0 W at 380 V, switching frequency 4 kHz |
|
With safety function Safely Limited Speed (SLS) |
True |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
18.0 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for operation |
-10…50 °C without derating |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320U04N4C
The ATV320U04N4C is a variable speed drive belonging to the Altivar Machine ATV320 series, engineered to power 3-phase synchronous and asynchronous motors. Its compact form factor enables vertical stacking of drives within machine frames. Operating at a rated power of up to 0.37kW / 0.5hp and a rated voltage ranging from 380V to 500V AC, this drive boasts a robust design featuring IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring extended machine availability even in harsh environmental conditions, such as ambient temperatures of up to 60°C, without requiring additional cooling mechanisms.
Incorporating functions tailored for diverse applications, including torque and speed accuracy at low speeds, high dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors, the ATV320U04N4C facilitates parallel connection of motors and special drives using the voltage/frequency ratio, static speed accuracy, and energy savings for open-loop synchronous motors.
The drive software encompasses 5 safety functions aiding machines in meeting safety requirements, whether used independently or in conjunction with a Preventa safety module. Configuration of these safety functions is facilitated through the SoMove software.
Designed to cater to Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 series satisfies both simple and advanced application requirements across various sectors, including packaging, material handling, textiles, material working, mechanical actuators, and hoisting.
Compliance with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions is ensured, with certifications from CE, UL, CSA, NOM, EAC, and RCM.
Mounting accessories and external options, including braking resistors, line chokes, motor chokes, and additional EMC filters, are available for Altivar Machine ATV320 drives, tailored according to drive rating specifications.
