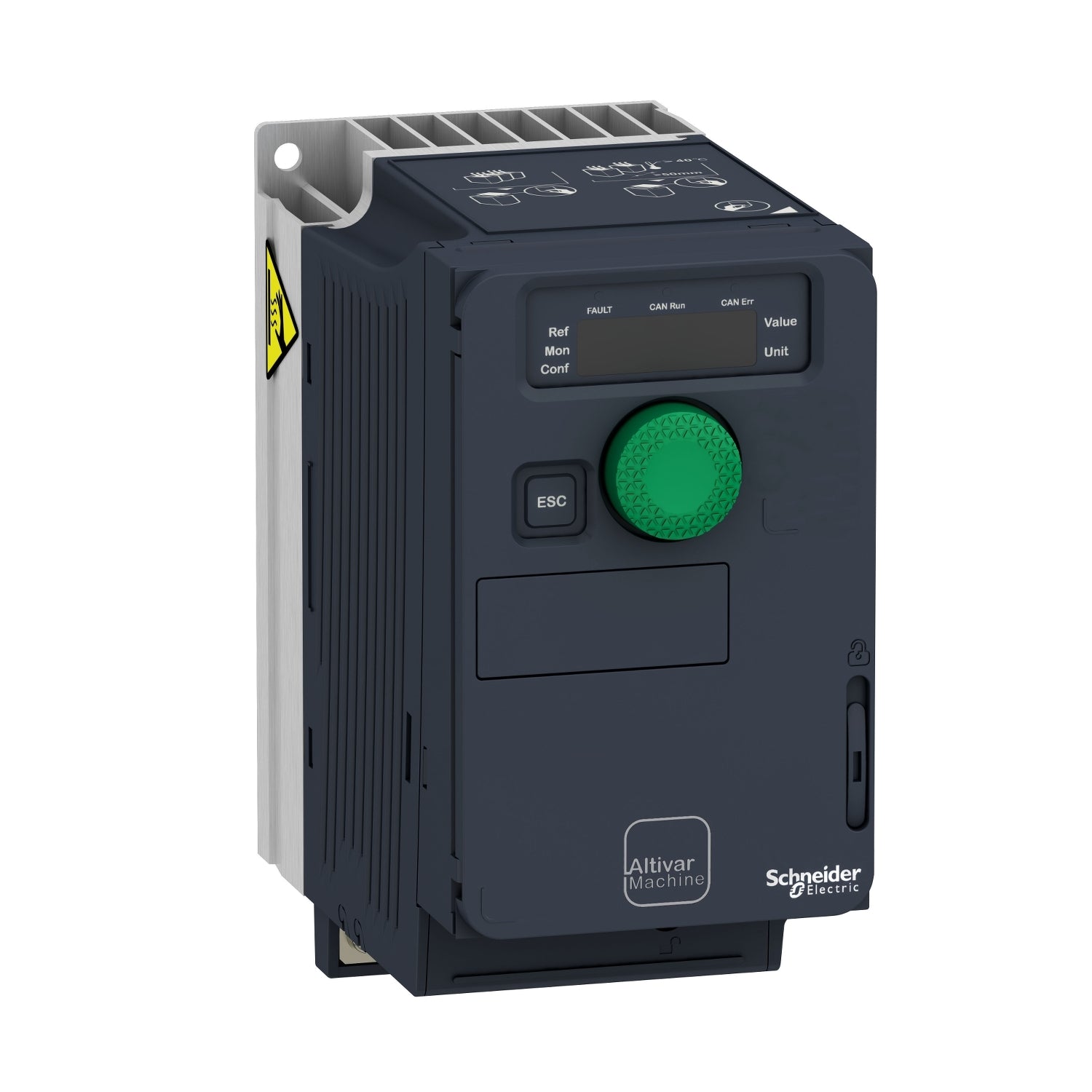

ATV320U07M2C | Schneider Electric Variable speed drive

Description

The ATV320U07M2C is a variable speed drive from the Altivar Machine ATV320 series, designed to power single-phase synchronous and asynchronous motors. Its compact design allows for vertical stacking of drives within machine frames. Operating at a rated power of up to 0.75 kW / 1 hp, and a rated voltage range of 200V to 240V AC, it offers versatility for various applications.

Featuring robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive ensures extended machine availability even in harsh environmental conditions, such as ambient temperatures of up to 60°C, without the need for additional cooling.

The ATV320U07M2C incorporates functions tailored for common applications, including precise torque and speed control at low speeds, high dynamic performance with sensorless flux vector control, and an extended frequency range for high-speed motors. Additionally, it supports parallel connection of motors and special drives, providing static speed accuracy and energy savings for open-loop synchronous motors.

Technical Specifications

Information About ATV320U07M2C

The ATV320U07M2C is a variable speed drive from the Altivar Machine ATV320 series, boasting a power rating of 0.75 kW and compatibility with single-phase synchronous and asynchronous motors. Operating within a voltage range of 200V to 240V AC, it offers compact dimensions suitable for vertical stacking within machine frames. Its design adheres to IEC 60721-3-3 standards, featuring class 3C3 coated printed circuit boards for enhanced durability, enabling operation in harsh environments with temperatures reaching up to 60°C without supplementary cooling.

Equipped with functionalities tailored for diverse applications, including precise torque and speed control at low speeds, dynamic performance with sensorless flux vector control, and extended frequency support for high-speed motors, the ATV320U07M2C facilitates efficient operation across various scenarios. Additionally, it supports parallel connection of motors and specialized drives using voltage/frequency ratio control, static speed accuracy, and energy-saving capabilities for open-loop synchronous motors.

Safety is paramount, with the drive incorporating five safety functions configurable via the SoMove software, facilitating compliance with safety standards even without a Preventa safety module. Targeting Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 series caters to both simple and advanced application requirements across industries such as packaging, material handling, textiles, mechanical actuators, and hoisting.

Conforming to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the ATV320U07M2C is certified with CE, UL, CSA, NOM, EAC, and RCM certifications. Various mounting accessories and external options, including braking resistors, line chokes, motor chokes, and additional EMC filters, are available, tailored to the specific drive rating.
