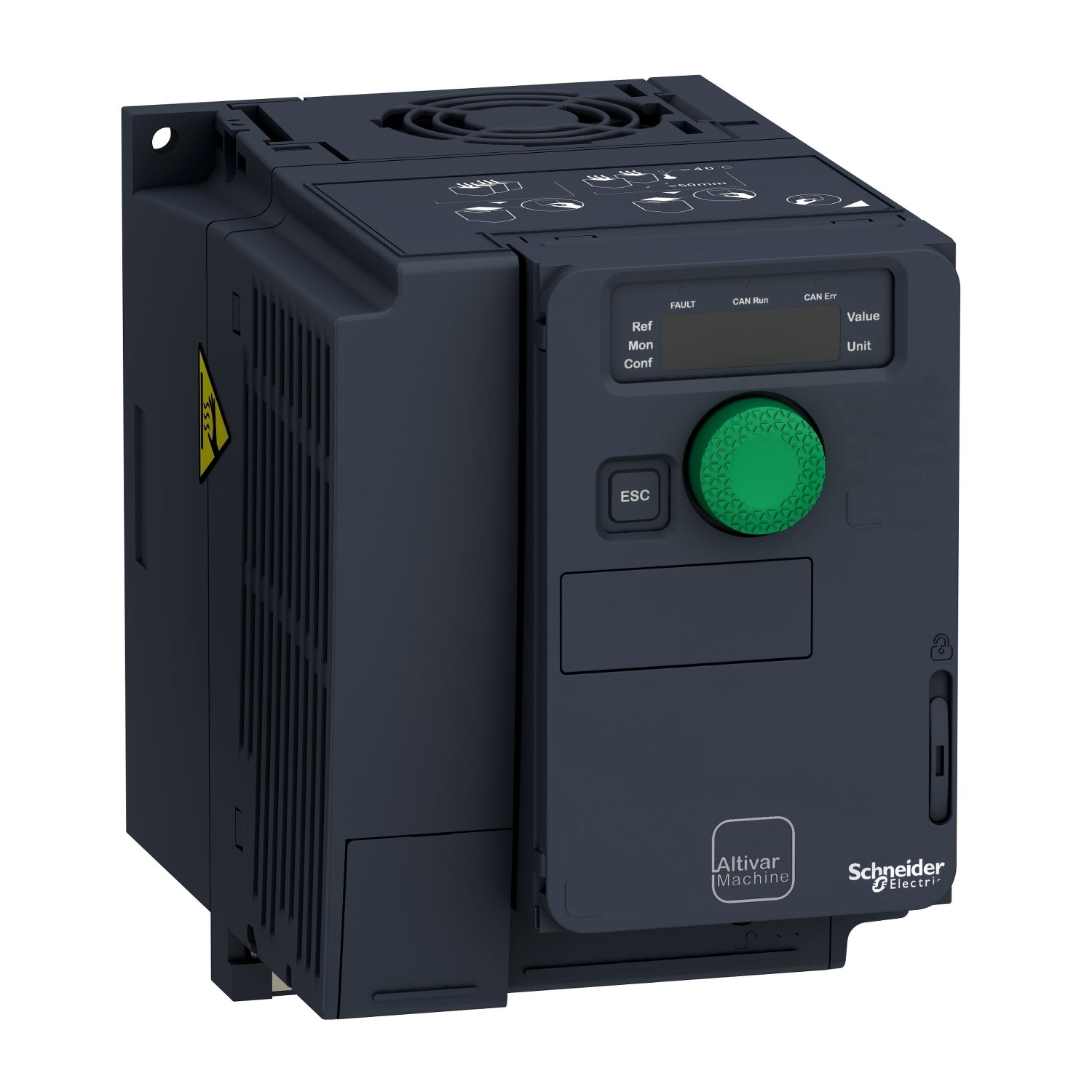

ATV320U11N4C | Schneider Electric | Variable speed drive
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320U11N4C
Description
Technical Specifications
|
Part # |
ATV320U11N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of production |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
Variant |
Standard version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall mount |
|
Communication port protocol |
Modbus serial |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
3.0 A |
|
Motor power kW |
1.1 kW for heavy duty |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP20 |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz witching frequency |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
Yes |
|
True Line current |
5.0 A at 380 V (heavy duty) |
|
Maximum input current |
5.0 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
3.3 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency |
5 % |
|
Prospective line Isc |
5 kA |
|
Base load current at high overload |
22.0 A |
|
Power dissipation in W |
Fan: 40 W at 380 V, switching frequency 4 kHz |
|
Maximum acceleration under shock impact |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
18.0 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for operation |
-10…50 °C without derating |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320U11N4C
The ATV320U11N4C is a variable speed drive from the Altivar Machine ATV320 series, designed for industrial applications requiring precise motor control. This drive is capable of feeding 3-phase synchronous and asynchronous motors, offering versatility in various machinery setups. Its compact form factor facilitates vertical stacking within machine frames, optimizing space utilization in industrial environments.
Operating within a voltage range of 380V to 500V AC, the ATV320U11N4C delivers a rated power of 1.1kW, equivalent to 1.5hp. Its robust design, featuring IEC 60721-3-3 class 3C3 coated printed circuit boards, ensures reliable performance even in harsh environmental conditions, withstanding temperatures of up to 60°C without additional cooling requirements.
Equipped with advanced functionalities, the ATV320U11N4C provides precise torque and speed accuracy, even at low speeds, enhancing operational efficiency across various applications. The drive incorporates flux vector control without sensors, offering high dynamic performance and an extended frequency range suitable for high-speed motors.
Safety is paramount in industrial settings, and the ATV320U11N4C includes five built-in safety functions to ensure compliance with safety regulations. These functions are configurable using the SoMove software, enabling seamless integration into existing safety systems.
Designed specifically for Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 series caters to both simple and advanced application requirements. It conforms to international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions. Additionally, it holds certifications including CE, UL, CSA, NOM, EAC, and RCM.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
