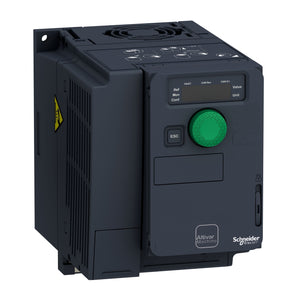

ATV320U15M2C | Schneider Electric Variable speed drive, Altivar Machine ATV320, 1.5kW, 200 to 240V, 1 phase, compact
- Regular price
- $271.00
- Sale price
- $271.00
- Regular price
-
Do you need more quantity?
Product Description P/N: ATV320U15M2C
Description
The Schneider Electric ATV320U15M2C is a compact variable speed drive from the Altivar Machine ATV320 series. With a power rating of 1.5kW, it's tailored for 1-phase systems at 200-240V, offering precise and efficient motor control in a space-saving design. Ideal for various industrial applications.
Technical Specifications
Brand | Schneider Electric |
Part Number | ATV320U15M2C |
Category | Controls & Indicators |
Subcategory | Frequency Converter |
Control / Drive Type | Variable Speed Drive |
Compatible Motor Type | Synchronous / Asynchronous Motors |
Power Rating | 1.5kW |
No. of Phases | Single Phase |
Output Current Max | 8A |
Supply Frequency | 50Hz / 60Hz |
IP Rating | IP20 |
Supply Voltage Min | 200VAC |
Supply Voltage Max | 240VAC |
Product Range | Altivar Machine ATV320 |
Information About ATV320U15M2C
This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
