ATV320U15M3C | Schneider Electric Variable speed drive
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320U15M3C
Description

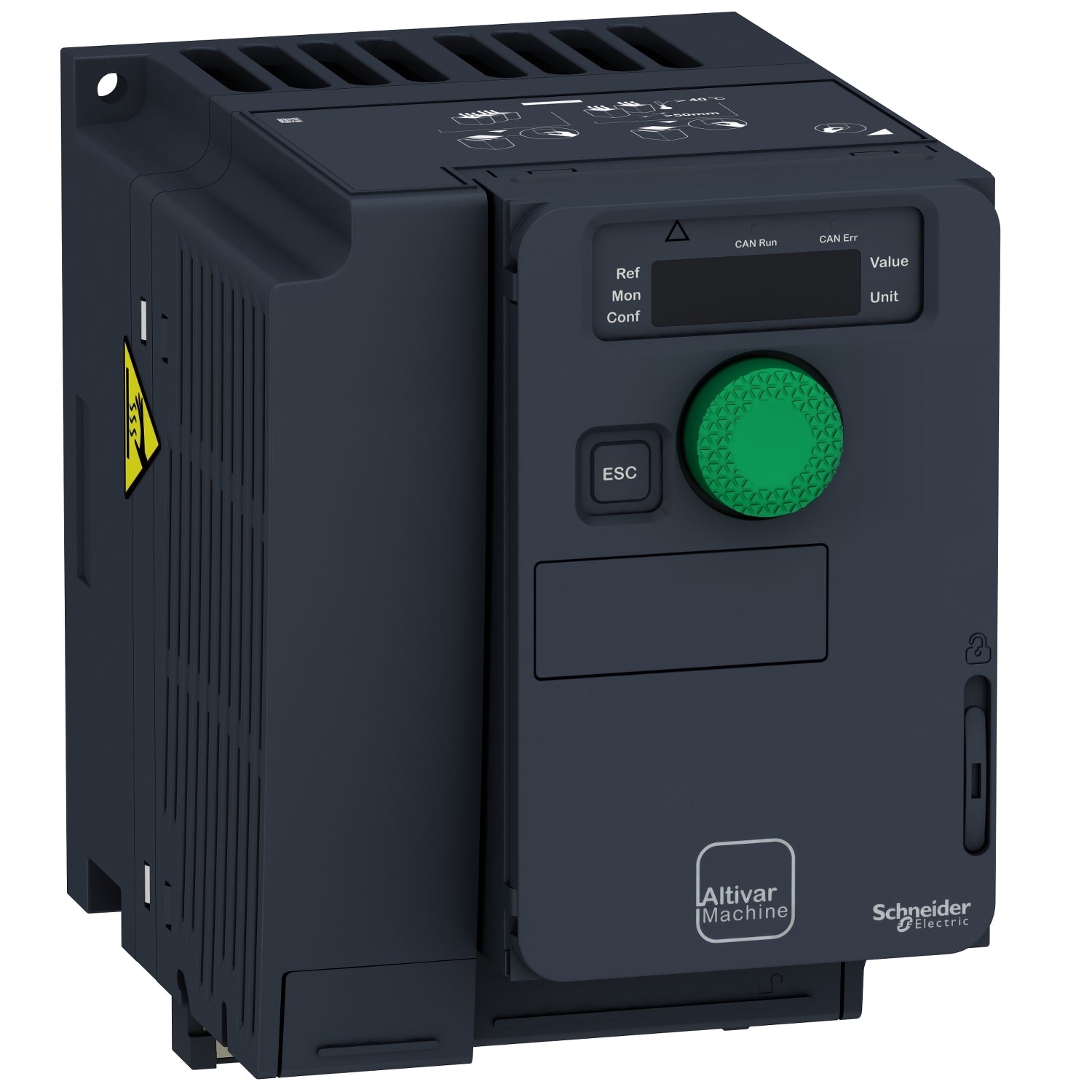

The ATV320U15M3C is a variable speed drive belonging to the Altivar Machine ATV320 range, specifically tailored for Original Equipment Manufacturers (OEMs). It operates at a rated power of 1.5kW / 2hp and a rated voltage from 200V to 240V AC, suitable for three-phase applications. This compact drive is designed to allow vertical stacking inside machine frames, optimizing space utilization.
Featuring robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards, the ATV320U15M3C ensures extended machine availability even in harsh environmental conditions, withstanding ambient temperatures of up to 60°C without requiring additional cooling measures.
Equipped with functions tailored for various applications, including torque and speed accuracy at low speeds, high dynamic performance with flux vector control without sensor, and an extended frequency range for high-speed motors, the ATV320U15M3C caters to diverse industrial needs.
Technical Specifications
|
Part # |
ATV320U15M3C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of produc |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
Variant |
Standard version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall mount |
|
[Us] rated supply voltage |
200...240 V - 15...10 % |
|
Nominal output current |
8.0 A |
|
Motor power kW |
1.5 kW heavy duty |
|
EMC filter |
Without EMC filter |
|
IP degree of protection |
IP20 |
|
Minimum switching current |
Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
|
Method of access |
Slave CANopen |
|
4 quadrant operation possible |
True |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Switching frequency |
2...16 kHz adjustable |
|
Maximum input current |
11.1 A |
|
Maximum output voltage |
240 V |
|
Apparent power |
3.9 kVA 240 V heavy duty |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
5 kA |
|
Base load current at high overload |
4 A |
|
Power dissipation in W |
Fan 72.0 W 200 V 4 kHz |
|
With safety function |
Safely Limited Speed (SLS) |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
3909.82 Gal/hr(US) (14.8 m3/h) |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-13…158 °F (-25…70 °C) |
|
Ambient air temperature for operation |
14…122 °F (-10…50 °C) without derating |
|
Ambient air temperature for storage |
-13…158 °F (-25…70 °C) |
Information About ATV320U15M3C
The ATV320U15M3C is a variable speed drive from the Altivar Machine ATV320 range, specifically designed for Original Equipment Manufacturers (OEMs). With a rated power of up to 1.5kW and a rated voltage ranging from 200V to 240V AC, it is suitable for various industrial applications.
Its compact form factor allows for vertical stacking of drives within machine frames, optimizing space utilization. The drive features robust design elements, including IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring extended machine availability even in harsh environmental conditions, such as ambient temperatures of up to 60°C, without requiring additional cooling mechanisms.
Equipped with advanced functions, the ATV320U15M3C ensures torque and speed accuracy even at very low speeds, offering high dynamic performance with flux vector control without the need for sensors. It supports parallel connection of motors and special drives using the voltage/frequency ratio, enabling energy-saving operation for open-loop synchronous motors.
Weighing 1.4kg and measuring 105mm wide, 143mm high, and 138mm deep, this variable speed drive is compact yet powerful. The drive software includes 5 safety functions that aid machines in meeting safety requirements, configurable using SoMove software.
Designed for OEMs, the Altivar Machine ATV320 range caters to both simple and advanced application requirements, including packaging, material handling, textile, material working, mechanical actuators, and hoisting. It conforms to various international standards such as IEC, UL, TUV, and KC.
