Product Description P/N: ATV320U15N4B
Description

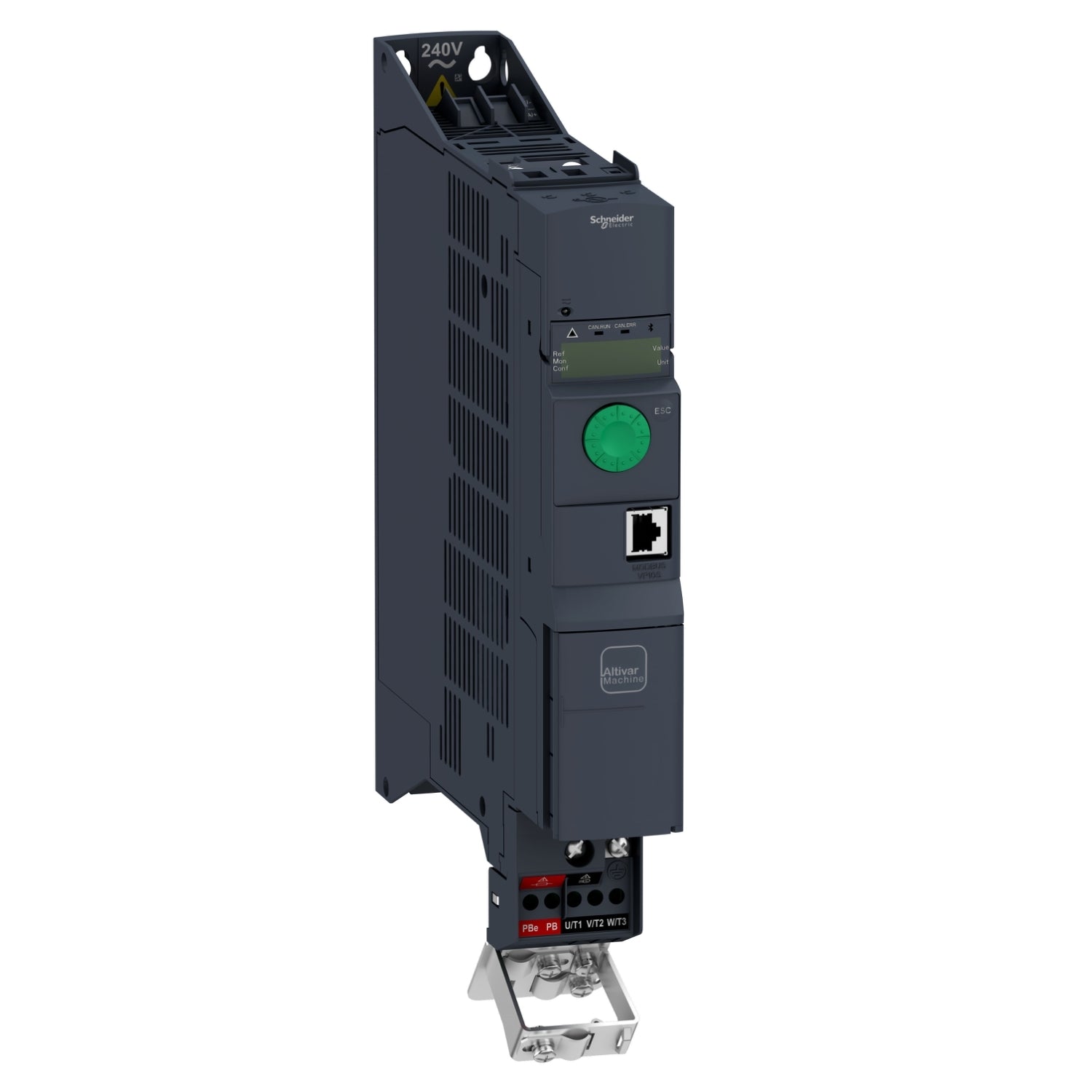

The Schneider Electric ATV320U15N4B is a 1.5 kW variable speed drive designed for three-phase motor control within the Altivar Machine ATV320 series. Operating on 380–500 V AC systems, it delivers precise speed and torque regulation for synchronous and asynchronous motors. Compact and panel-mounted, this drive provides efficient performance suited for industrial and OEM machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATV320U15N4B |
| Subcategory | Drive |
| Series | ATV320 Series |
| Power Rating | 1.5 kW |
| Horsepower Rating | 2 HP |
| Supply Voltage | 380–500 V AC (nominal 480 V AC) |
| Phase | 3-phase |
| Current Rating | 4.1 A |
| Output Frequency | 0.1 to 599 Hz |
| For Use With | 3-phase synchronous and asynchronous motors |
| Motor Control Type | Variable Frequency Drive (VFD) |
| IP Rating | IP20 |
| Mounting Type | Panel mount |
| Environmental Design | 3C3-coated PCBs |
| Operating Temperature | Up to 60°C (with conditions) |
| Certifications | CE, UL, CSA, NOM, EAC, RCM |
| Software Compatibility | SoMove / SoMachine via DTM |
| Special Features | Energy-saving modes, integrated safety functions |
| Accessories Support | Braking resistors, chokes, EMC filters (varies by drive rating) |
Information About ATV320U15N4B
The ATV320U15N4B is part of the Altivar Machine ATV320 family, built for high-performance motor control in automated systems. Its book-style form factor enables space-efficient installation, while its robust design—including 3C3-coated PCBs—supports operation in demanding environments up to 60°C. The drive offers advanced control functions such as open-loop flux vector control, extended frequency operation, and torque accuracy at low speeds. Typical applications include packaging, hoisting, material handling, mechanical actuators, textiles, and machinery requiring reliable motor regulation and safety-integrated functionality.
Key Features:
- 1.5 kW / 2 HP motor capacity: Suitable for a wide range of industrial motion applications.
- 380–500 V three-phase supply: Designed for global installations on standard industrial power systems.
- Advanced motor control: Supports synchronous and asynchronous motors with open-loop flux vector control.
- Wide frequency range: Adjustable output from 0.1 to 599 Hz.
- IP20 enclosure: Intended for panel-mount installation within protective cabinets.
- High environmental resilience: 3C3 coated PCBs for operation in harsh conditions up to 60°C.
- Integrated safety functions: Configurable via SoMove for enhanced machine protection.
- EcoStruxure integration: Native support for Schneider Electric software and automation architecture.
The ATV320U15N4B delivers the reliability and precision required for industrial variable-speed drive applications.
