ATV320U15N4C | Schneider Electric Variable speed drive
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

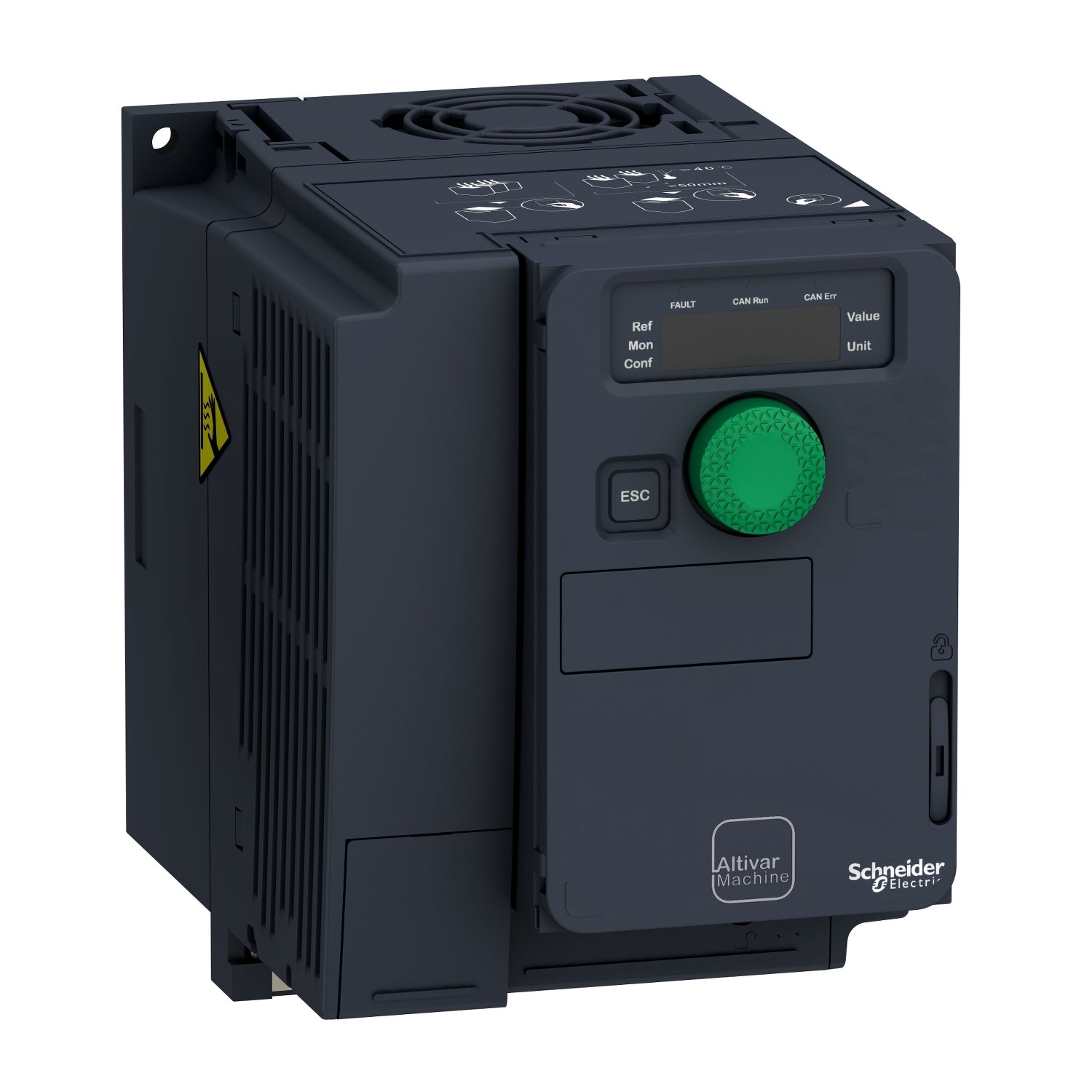

Product Description P/N: ATV320U15N4C
Description
The ATV320U15N4C is a variable speed drive from the Altivar Machine ATV320 series, designed to power 3-phase synchronous and asynchronous motors. Its compact form factor enables vertical stacking of drives within machine frames. Operating at a rated power of 1.5kW (equivalent to 2hp) and a voltage range of 380V to 500V AC, it boasts a robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring machine availability even in harsh environmental conditions, such as temperatures up to 60°C, without requiring additional cooling.
Equipped with functions tailored for various applications, including precise torque and speed accuracy at low speeds, dynamic performance with flux vector control without sensor, and an extended frequency range for high-speed motors, it supports parallel connection of motors and special drives through the voltage/frequency ratio and static speed accuracy, enhancing energy efficiency for open-loop synchronous motors.
Technical Specifications
|
Part # |
ATV320U15N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
DriveRange of produc |
|
Range of Product |
Altivar Machine ATV320 |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
Variant |
Standard version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall mount |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
4.1 A |
|
Motor power kW |
1.5 kW for heavy duty |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP20 |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Maximum input current |
6.4 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
4.2 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
5 kA |
|
Base load current at high overload |
3.0 A |
|
Power dissipation in W |
Fan: 56.0 W at 380 V, switching frequency 4 kHz |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
18.0 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for operation |
-10…50 °C without derating; 50…60 °C with derating factor |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320U15N4C
The ATV320U15N4C is a variable speed drive from the Altivar Machine ATV320 series, designed to power 3-phase synchronous and asynchronous motors. Featuring a compact form factor, it enables vertical stacking of drives within machine frames, optimizing space utilization. Operating within a voltage range of 380V to 500V AC, it delivers a rated power of 1.5kW or 2hp.
Constructed with IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive ensures robust performance even in challenging environmental conditions, such as ambient temperatures of up to 60°C, without requiring additional cooling mechanisms.
Equipped with advanced functionality, including torque and speed accuracy at low speeds, flux vector control without sensors, and an extended frequency range for high-speed motors, the ATV320U15N4C caters to diverse industrial applications.
Additionally, it supports parallel connection of motors and special drives, offering enhanced flexibility and efficiency. The drive software incorporates five safety functions, aiding in compliance with safety standards, and can be configured using SoMove software.
Designed primarily for Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 series meets both simple and complex application requirements, spanning industries such as packaging, material handling, textile, material working, mechanical actuators, and hoisting.
Compliant with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3, the drive holds certifications including CE, UL, CSA, NOM, EAC, and RCM, ensuring adherence to regulatory requirements.
Mounting accessories and external options, such as braking resistors, line chokes, motor chokes, and additional EMC filters, are available, tailored to specific drive ratings. Its design facilitates vertical mounting on panels, with four fixing holes for easy installation.
Fully integrated into Schneider Electric’s EcoStruxure Machine through DTM, the ATV320U15N4C allows seamless configuration, control, and diagnostics using SoMachine and SoMove software, utilizing a unified software brick (DTM).
