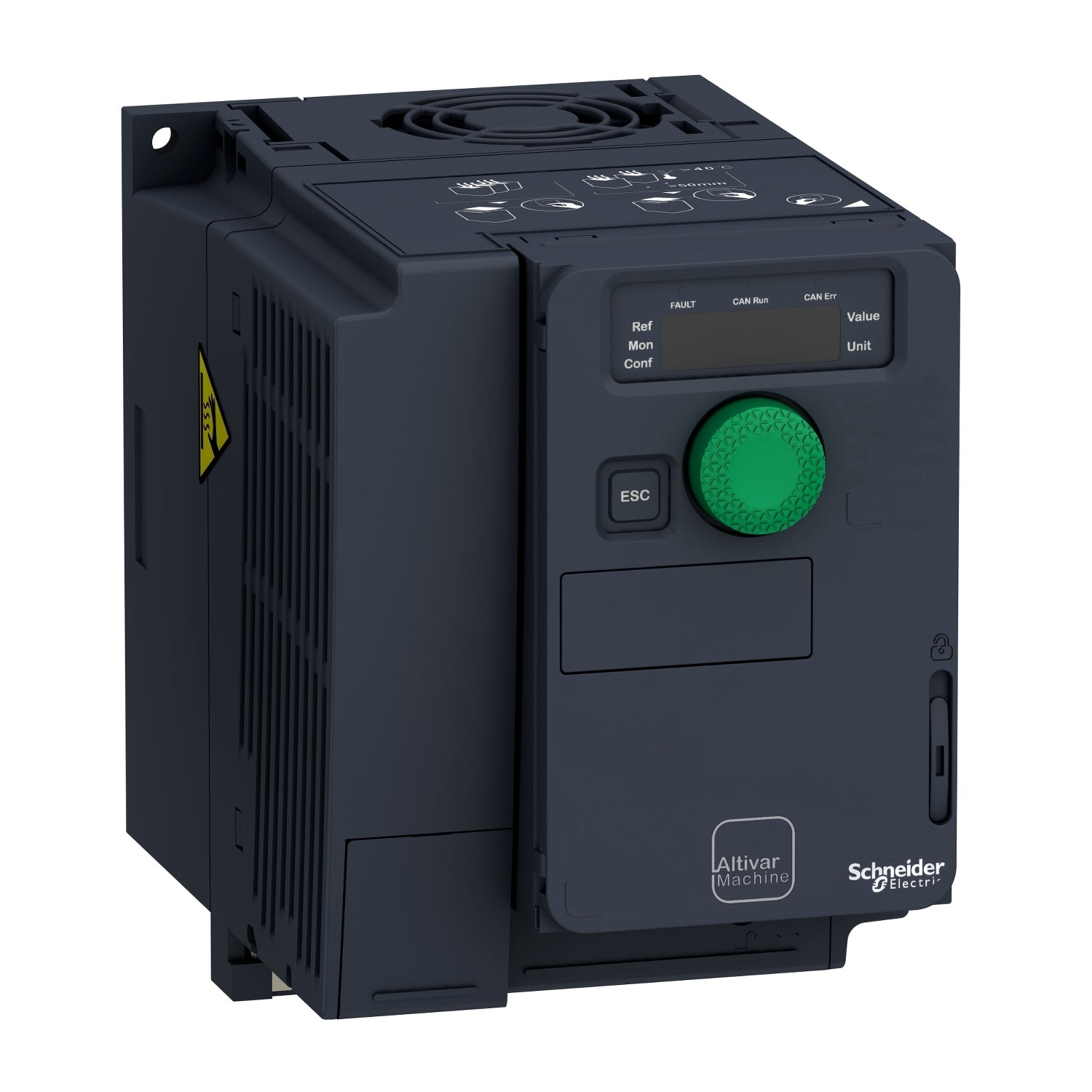

ATV320U22M2C | Schneider Electric Variable speed drive
ATV320U22M2C | Schneider Electric Variable speed drive
Part #: ATV320U22M2C Manufactured by: Schneider Electric

ATV320U22M2C | Schneider Electric Variable speed drive

Regular price
$389.00
Sale price
$389.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The ATV320U22M2C, a variable speed drive from the Altivar Machine ATV320 series, is engineered to power single-phase synch...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV320U22M2C
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV320U22M2C | Schneider Electric Variable speed drive
    ATV320U22M2C | Schneider Electric Variable speed drive
ATV320U22M2C | Schneider Electric Variable speed drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV320U22M2C

Description / Specifications

Description

The ATV320U22M2C is a variable speed drive belonging to the Altivar Machine ATV320 series. Designed for single-phase synchronous and asynchronous motors, this compact drive allows for vertical stacking within machine frames. Operating at a rated power of up to 2.2kW / 3hp and a voltage range of 200V to 240V AC, its robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards ensures reliability in harsh environmental conditions, including ambient temperatures up to 60°C without additional cooling.

Equipped with functions tailored for common applications, such as torque and speed accuracy at low speeds, flux vector control without sensor for high dynamic performance, and extended frequency range for high-speed motors, it also supports parallel connection of motors and special drives using the voltage/frequency ratio.

Technical Specifications

Part #

ATV320U22M2C

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Controls & Indicators

Subcategory

Frequency Converter

POWER FACTOR

POWER RATING MULTIPLIER - 0.1

POWER RATING

POWER RATING 22

SUPPLY VOLTAGE

Single phase supply voltage: 200-240 VAC, 50/60 Hz

Special

COMPACT FORM FACTOR variant

Standard version

Compact

Format of the drive

Wall mount

Communication port protocol

Modbus serial

[Us] rated supply voltage

200...240 V - 15...10 %

Nominal output current

11.0 A

Motor power kW

2.2 kW heavy duty

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP20

Minimum switching current

Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Method of access

Slave CANopen

4 quadrant operation possible

True

Synchronous motor control profile

True

Vector control without sensor

True

Transient overtorque

170…200 % of nominal motor torque

Maximum output frequency

0.599 kHz

Nominal switching frequency

4 kHz

Braking to standstill

By DC injection

Brake chopper integrated

True

Maximum Input Current per Phase

24.0 A

Maximum output voltage

240 V

Apparent power

4.8 kVA 240 V heavy duty

Network Frequency

50-60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line Isc

1 kA

Base load current at high overload

17.0 A

Power dissipation in W

Fan 99.0 W 200 V 4 kHz

With safety function Safely Limited Speed (SLS)

True

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum acceleration under vibrational stress (during operation)

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Permitted relative humidity (during operation)

Class 3K5 according to EN 60721-3

Volume of cooling air

4226.83 Gal/hr(US) (16.0 m3/h)

Overvoltage category

III

Regulation loop

Adjustable PID regulator

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Pollution degree

2

Ambient air transport temperature

-13…158 °F (-25…70 °C)



Information About ATV320U22M2C


The ATV320U22M2C is a variable speed drive from the Altivar Machine ATV320 series designed to power single-phase synchronous and asynchronous motors. Featuring a compact form factor, it enables vertical stacking within machine frames. Operating within a rated power range of up to 2.2kW / 3hp and a rated voltage of 200V to 240V AC, this drive boasts robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring machine availability even in harsh environments with temperatures of up to 60°C without additional cooling requirements.

Equipped with functionalities tailored for common applications, including torque and speed accuracy at very low speeds, high dynamic performance with flux vector control without sensor, and an extended frequency range for high-speed motors, the ATV320U22M2C also supports parallel connection of motors and special drives using the voltage/frequency ratio. Furthermore, it offers static speed accuracy and energy-saving capabilities for open-loop synchronous motors.

With built-in safety features configurable via SoMove software, this drive aids machines in meeting safety requirements, whether or not they are used alongside a Preventa safety module. Catering to the needs of Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 is suitable for various applications such as packaging, material handling, textile, material working, mechanical actuators, and hoisting.

Compliant with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the ATV320U22M2C holds certifications including CE, UL, CSA, NOM, EAC, and RCM. Additionally, it supports a range of mounting accessories and external options such as braking resistors, line chokes, motor chokes, and additional EMC filters, dependent on the drive rating.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The ATV320U22M2C is a variable speed drive belonging to the Altivar Machine ATV320 series. Designed for single-phase synchronous and asynchronous motors, this compact drive allows for vertical stacking within machine frames. Operating at a rated power of up to 2.2kW / 3hp and a voltage range of 200V to 240V AC, its robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards ensures reliability in harsh environmental conditions, including ambient temperatures up to 60°C without additional cooling.

Equipped with functions tailored for common applications, such as torque and speed accuracy at low speeds, flux vector control without sensor for high dynamic performance, and extended frequency range for high-speed motors, it also supports parallel connection of motors and special drives using the voltage/frequency ratio.

Technical Specifications

Part #

ATV320U22M2C

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Controls & Indicators

Subcategory

Frequency Converter

POWER FACTOR

POWER RATING MULTIPLIER - 0.1

POWER RATING

POWER RATING 22

SUPPLY VOLTAGE

Single phase supply voltage: 200-240 VAC, 50/60 Hz

Special

COMPACT FORM FACTOR variant

Standard version

Compact

Format of the drive

Wall mount

Communication port protocol

Modbus serial

[Us] rated supply voltage

200...240 V - 15...10 %

Nominal output current

11.0 A

Motor power kW

2.2 kW heavy duty

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP20

Minimum switching current

Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Method of access

Slave CANopen

4 quadrant operation possible

True

Synchronous motor control profile

True

Vector control without sensor

True

Transient overtorque

170…200 % of nominal motor torque

Maximum output frequency

0.599 kHz

Nominal switching frequency

4 kHz

Braking to standstill

By DC injection

Brake chopper integrated

True

Maximum Input Current per Phase

24.0 A

Maximum output voltage

240 V

Apparent power

4.8 kVA 240 V heavy duty

Network Frequency

50-60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line Isc

1 kA

Base load current at high overload

17.0 A

Power dissipation in W

Fan 99.0 W 200 V 4 kHz

With safety function Safely Limited Speed (SLS)

True

Maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

Maximum acceleration under vibrational stress (during operation)

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

Permitted relative humidity (during operation)

Class 3K5 according to EN 60721-3

Volume of cooling air

4226.83 Gal/hr(US) (16.0 m3/h)

Overvoltage category

III

Regulation loop

Adjustable PID regulator

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Pollution degree

2

Ambient air transport temperature

-13…158 °F (-25…70 °C)



Information About ATV320U22M2C


The ATV320U22M2C is a variable speed drive from the Altivar Machine ATV320 series designed to power single-phase synchronous and asynchronous motors. Featuring a compact form factor, it enables vertical stacking within machine frames. Operating within a rated power range of up to 2.2kW / 3hp and a rated voltage of 200V to 240V AC, this drive boasts robust construction with IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring machine availability even in harsh environments with temperatures of up to 60°C without additional cooling requirements.

Equipped with functionalities tailored for common applications, including torque and speed accuracy at very low speeds, high dynamic performance with flux vector control without sensor, and an extended frequency range for high-speed motors, the ATV320U22M2C also supports parallel connection of motors and special drives using the voltage/frequency ratio. Furthermore, it offers static speed accuracy and energy-saving capabilities for open-loop synchronous motors.

With built-in safety features configurable via SoMove software, this drive aids machines in meeting safety requirements, whether or not they are used alongside a Preventa safety module. Catering to the needs of Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 is suitable for various applications such as packaging, material handling, textile, material working, mechanical actuators, and hoisting.

Compliant with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the ATV320U22M2C holds certifications including CE, UL, CSA, NOM, EAC, and RCM. Additionally, it supports a range of mounting accessories and external options such as braking resistors, line chokes, motor chokes, and additional EMC filters, dependent on the drive rating.

Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
