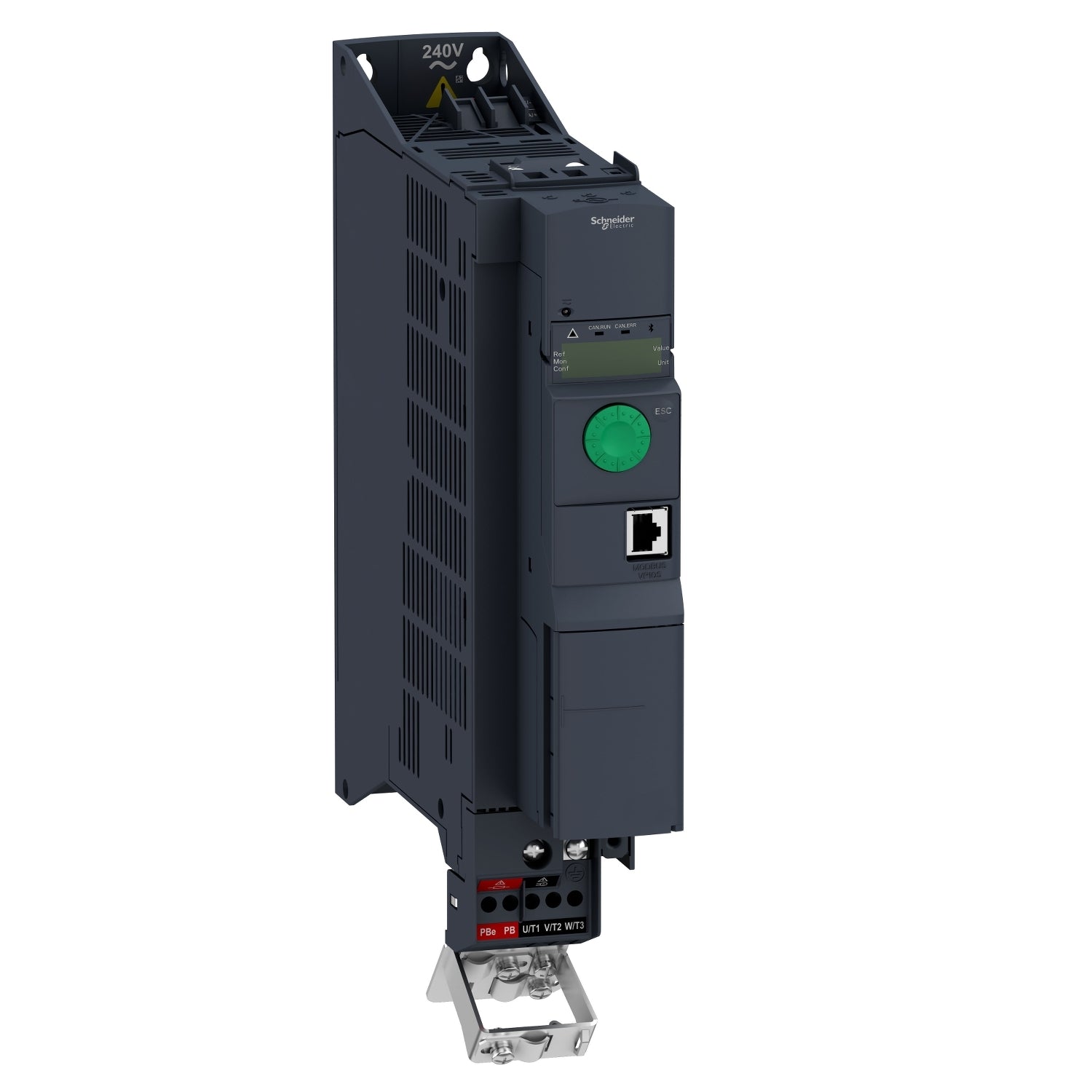

ATV320U22N4B | Schneider Electric Variable speed drive
ATV320U22N4B | Schneider Electric Variable speed drive
Part #: ATV320U22N4B Manufactured by: Schneider Electric

ATV320U22N4B | Schneider Electric Variable speed drive

Regular price
$347.00
Sale price
$347.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The ATV320U22N4B, part of the Altivar Machine ATV320 series, is a variable speed drive suitable for feeding 3-phase synchr...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV320U22N4B
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV320U22N4B | Schneider Electric Variable speed drive
    ATV320U22N4B | Schneider Electric Variable speed drive
ATV320U22N4B | Schneider Electric Variable speed drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV320U22N4B

Description / Specifications

Description

The ATV320U22N4B is a variable speed drive from the Altivar Machine ATV320 series, designed to power 3-phase synchronous and asynchronous motors. With its book form factor, it enables simple and compact installation within automation cabinets. Operating at a rated power of up to 2.2kW / 3hp and a rated voltage of 380V to 500V AC, it features robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring extended machine availability even in harsh environmental conditions of up to 60°C without requiring additional cooling.

Incorporating functions suitable for diverse applications, including precise torque and speed control at low speeds, high dynamic performance with flux vector control without sensors, and an expanded frequency range for high-speed motors, the ATV320U22N4B also supports parallel connection of motors and special drives using voltage/frequency ratios, static speed accuracy, and energy-saving measures for open-loop synchronous motors.

The drive software includes 5 safety functions to aid machines in meeting safety requirements, configurable via the SoMove software. Designed for Original Equipment Manufacturers (OEMs), it accommodates simple and advanced application needs across various industries, including packaging, material handling, textiles, mechanical actuators, and hoisting.


Technical Specifications

Part #

ATV320U22N4B

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

Range of Product

Altivar Machine ATV320

Product or Component Type

Variable speed drive

Product Specific Application

Complex machines

Variant

Standard version

Format of the drive

Book

Mounting Mode

Cabinet mount

[Us] rated supply voltage

380...500 V - 15...10 %

Nominal output current

5.5 A

Motor power kW

2.2 kW heavy duty

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP20

Minimum switching current

Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC

Method of access

Slave CANopen

4 quadrant operation possible

True

Synchronous motor control profile

Vector control without sensor

Transient overtorque

170…200 % of nominal motor torque

Maximum output frequency

0.599 kHz

Nominal switching frequency

4 kHz

Braking to standstill

By DC injection

Brake chopper integrated

True

Line current

8.7 A 380 V heavy duty, 6.6 A 500 V heavy duty

Maximum Input Current per Phase

8.7 A

Maximum output voltage

500 V

Apparent power

5.7 kVA 500 V heavy duty

Network Frequency

50-60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line Isc

5 kA

Base load current at high overload

4.8 A

Power dissipation in W

Fan: 74.0 W 380 V 4 kHz

Maximum acceleration under shock impact

150 m/s² at 11 ms

Maximum acceleration under vibrational stress

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load

1.5 mm at 2...13 Hz

Permitted relative humidity (during operation)

Class 3K5 according to EN 60721-3

Volume of cooling air

2985.20 Gal/hr(US) (11.3 m3/h)

Overvoltage category

III

Regulation loop

Adjustable PID regulator

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Pollution degree

2

Ambient air transport temperature

-13…158 °F (-25…70 °C)

Ambient air temperature for operation

14…122 °F (-10…50 °C) without derating


122…140 °F (50…60 °C) with derating factor

Ambient Air Temperature for Storage

-13…158 °F (-25…70 °C)



Information About ATV320U22N4B



The ATV320U22N4B is a variable speed drive from the Altivar Machine ATV320 series designed to power 3-phase synchronous and asynchronous motors. Its book form factor facilitates a straightforward and space-efficient installation within automation cabinets. Operating within a voltage range of 380V to 500V AC, this drive delivers a rated power of up to 2.2kW (equivalent to 3hp).

Featuring IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive boasts a robust design that enhances machine availability even in harsh environmental conditions, such as ambient temperatures of up to 60°C, without requiring additional cooling mechanisms.

Equipped with a range of functions tailored for common applications, including precise torque and speed control at low speeds, dynamic performance with flux vector control sans sensor, and an extended frequency range suitable for high-speed motors, the ATV320U22N4B ensures versatility and efficiency.

Moreover, it supports parallel connection of motors and specialized drives through the voltage/frequency ratio, static speed accuracy, and energy-saving features tailored for open-loop synchronous motors.

Safety is paramount, with the drive's software incorporating five functions to meet safety standards, whether utilized independently or in conjunction with a Preventa safety module, configured via SoMove software.

Designed specifically for Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 is adept at addressing both simple and advanced application needs across various sectors including packaging, material handling, textile, material working, mechanical actuators, and hoisting.

Compliant with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the ATV320U22N4B holds certifications including CE, UL, CSA, NOM, EAC, and RCM.

Mounting accessories and external options like braking resistors, line chokes, motor chokes, and additional EMC filters are available, tailored to the specific rating of the drive. Its design allows for vertical mounting (+/- 10°) on panels using four fixing holes.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
