Product Description P/N: ATV320U40N4B

Description / Specifications

Description

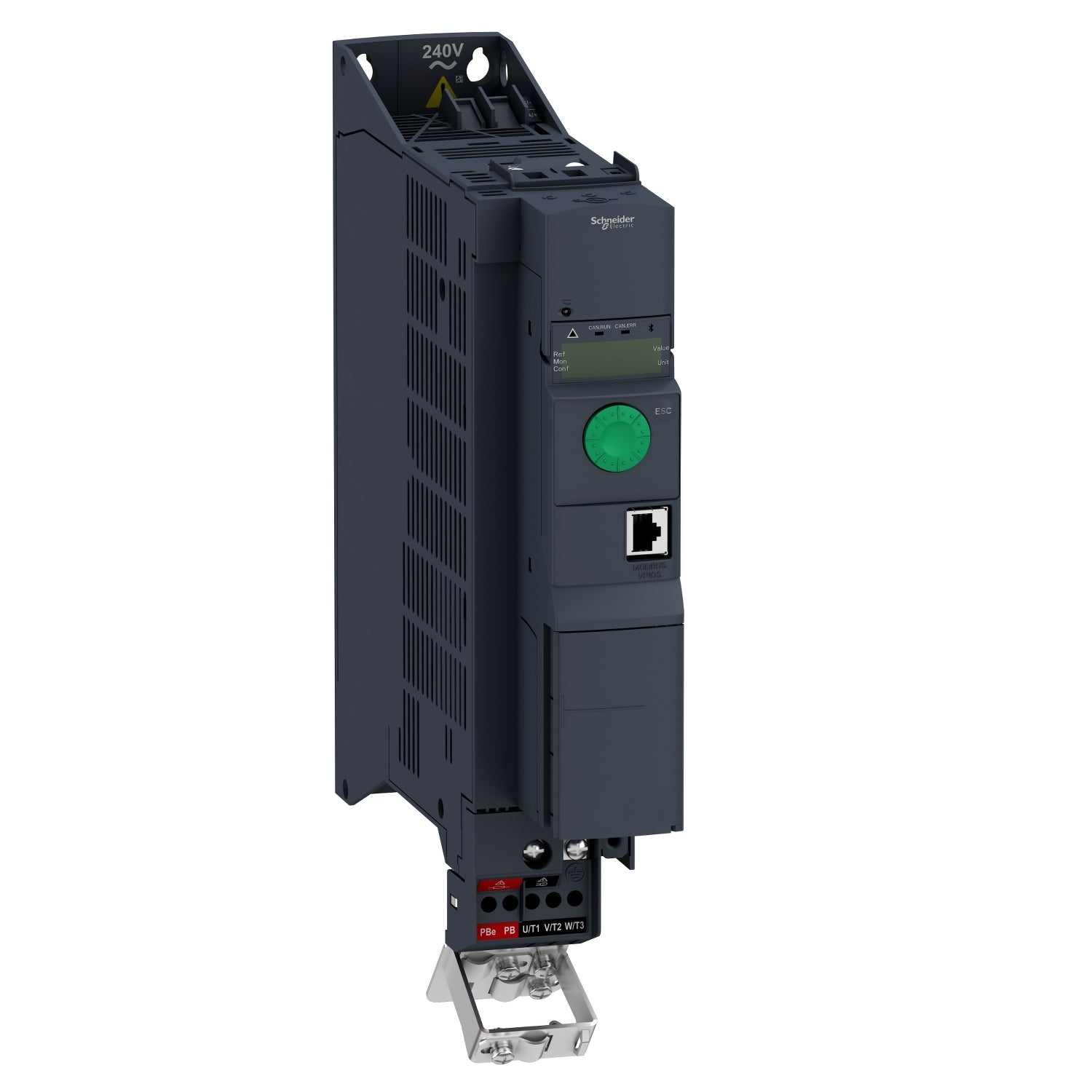

The ATV320U40N4B is a variable speed drive from the Altivar Machine ATV320 series, capable of powering 3-phase synchronous and asynchronous motors. Featuring a book form factor, it enables straightforward and space-efficient installation within automation cabinets. Operating at a rated power of up to 4kW / 5hp and a rated voltage range of 380V to 500V AC, it offers versatility for various applications.

Constructed with IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive ensures robustness, extending machine availability even in harsh environmental conditions such as ambient temperatures up to 60°C, without requiring additional cooling mechanisms.


Technical Specifications


Part #

ATV320U40N4B

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive Range of produc

Product or component type

Variable speed drive

Product specific application

Complex machines

Variant

Standard version

Format of the drive

Book

Mounting mode

Cabinet mount

Us rated supply voltage

380...500 V - 15...10 %

Nominal output current

9.5 A

Motor power kW

4.0 kW for heavy duty

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP20

Minimum switching current

Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC

Method of access

Slave CANopen

4 quadrant operation possible

True

Synchronous motor control profile

Vector control without sensor

Transient overtorque

170…200 % of nominal motor torque

Maximum output frequency

0.599 kHz

Switching frequency

2...16 kHz adjustable

Switching frequency

4...16 kHz with derating factor

Nominal switching frequency

4 kHz

Braking to standstill

By DC injection

Brake chopper integrated

True

Line current

13.7 A at 380 V (heavy duty)

Line current

10.5 A at 500 V (heavy duty)

Maximum input current

13.7 A

Maximum output voltage

500 V

Apparent power

9.1 kVA at 500 V (heavy duty)

Network frequency

50...60 Hz

Relative symmetric network frequency tolerance

5 %

Prospective line Isc

5 kA

Base load current at high overload

9.5 A

Power dissipation in W

Fan: 111 W at 380 V, switching frequency 4 kHz

With safety function Safely Limited Speed (SLS)

True

Maximum acceleration under shock impact

150 m/s² at 11 ms

Maximum acceleration under vibrational stress

10 m/s² at 13...200 Hz

Maximum deflection under vibratory load

1.5 mm at 2...13 Hz

Permitted relative humidity

Class 3K5 according to EN 60721-3

Volume of cooling air

11.3 m3/h

Overvoltage category

III

Regulation loop

Adjustable PID regulator

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Pollution degree

2

Ambient air transport temperature

-25…70 °C

Ambient air temperature for operation

-10…50 °C without derating

Ambient air temperature for storage

-25…70 °C



Information About ATV320U40N4B

The ATV320U40N4B is a variable speed drive from the Altivar Machine ATV320 series, capable of powering 3-phase synchronous and asynchronous motors. Featuring a book form factor, it enables simple and compact installation within automation cabinets. Operating at a rated power of up to 4kW / 5hp and a rated voltage range of 380V to 500V AC, it offers versatility for various applications.

Constructed with IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive ensures machine availability in harsh environmental conditions, such as ambient temperatures up to 60°C, without requiring additional cooling mechanisms.

Incorporating functions suitable for common applications, including torque and speed accuracy at very low speeds, high dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors, it offers comprehensive functionality. It also supports parallel connection of motors and special drives using the voltage/frequency ratio, static speed accuracy, and energy-saving features for open-loop synchronous motors.

The drive software includes 5 safety functions to aid in meeting safety requirements, configurable using SoMove software. Designed for Original Equipment Manufacturers (OEMs), it meets both simple and advanced application requirements in various sectors, including packaging, material handling, and hoisting.
