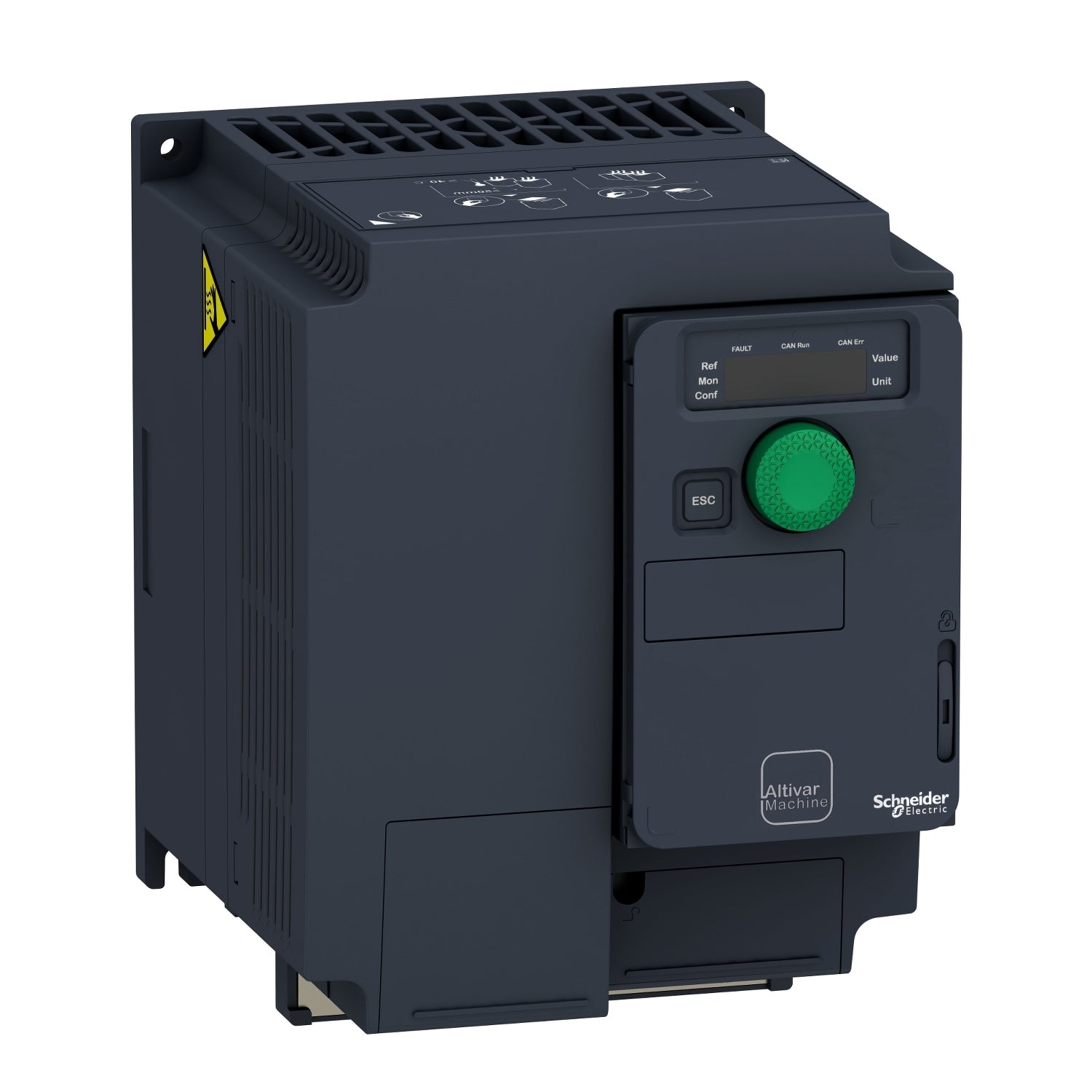

ATV320U40N4C | Schneider Electric Variable speed drive
- Regular price
- $409.00
- Sale price
- $409.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320U40N4C
Description
Technical Specifications
|
Part # |
ATV320U40N4C |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
POWER FACTOR |
POWER RATING MULTIPLIER - 0.1 |
|
POWER RATING |
POWER RATING 40 |
|
SUPPLY VOLTAGE |
Three phase supply voltage: 380-500 VAC, 50/60 Hz |
|
special |
COMPACT FORM FACTOR Range of produc |
|
Altivar Machine ATV320 |
|
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
variant |
Standard version |
|
Format of the drive |
Compact |
|
Mounting mode |
Wall mount |
|
communication port protocol |
Modbus serial |
|
|
CANopen |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
9.5 A |
|
Motor power kW |
4.0 kW for heavy duty |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP20 |
|
Synchronous motor control profile |
Vector control without sensor |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Switching frequency |
2...16 kHz adjustable |
|
|
4...16 kHz with derating factor |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Maximum input current |
13.7 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
9.2 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
5 kA |
|
Base load current at high overload |
9.5 A |
|
Power dissipation in W |
Fan: 111 W at 380 V, switching frequency 4 kHz |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
37.7 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for operation |
-10…50 °C without derating |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320U40N4C
The ATV320U40N4C is a variable speed drive within the Altivar Machine ATV320 series, engineered to accommodate 3-phase synchronous and asynchronous motors. Featuring a compact form factor, it enables vertical stacking within machine frames. Operating within a power range of 4kW / 5hp and a rated voltage of 380V to 500V AC, it boasts a robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring prolonged machine availability even in demanding environmental conditions, such as temperatures up to 60°C without supplementary cooling.
Equipped with functionalities tailored for diverse applications, including torque and speed accuracy at low speeds, high dynamic performance utilizing flux vector control without sensors, and an extended frequency range catering to high-speed motors, it caters to a wide range of operational requirements. Additionally, it supports parallel connection of motors and specialized drives via the voltage/frequency ratio, ensuring static speed accuracy and energy efficiency, particularly for open-loop synchronous motors.
The drive software incorporates 5 safety functions, aiding in meeting safety requirements, whether independently or in conjunction with a Preventa safety module, configurable using SoMove software.
Designed with Original Equipment Manufacturers (OEMs) in mind, the Altivar Machine ATV320 meets application requirements spanning packaging, material handling, textiles, material working, mechanical actuators, and hoisting. Conforming to international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, it holds certifications including CE, UL, CSA, NOM, EAC, and RCM.
Mounting accessories and external options, including braking resistors, line chokes, motor chokes, and additional EMC filters, are available, tailored to drive ratings. Designed for vertical mounting on panels with four fixing holes, it seamlessly integrates within Schneider Electric’s EcoStruxure Machine ecosystem through DTM, facilitating configuration, control, and diagnostics via SoMachine and SoMove software utilizing the same software brick (DTM).
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
