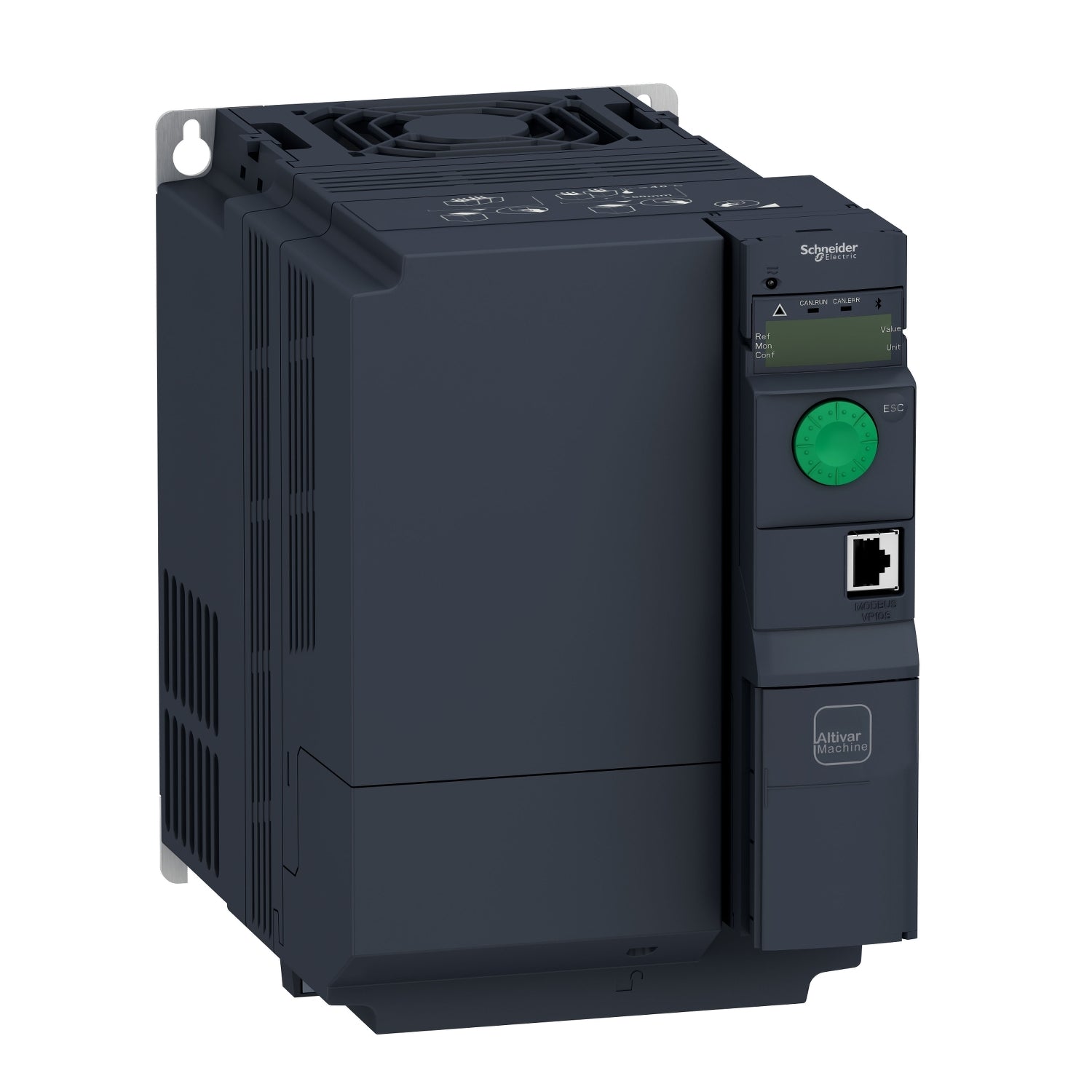

Product Description P/N: ATV320U55N4B
Description
The ATV320U55N4B is a variable speed drive from the Altivar Machine ATV320 series, designed to power 3-phase synchronous and asynchronous motors. Its book form factor facilitates a straightforward and space-saving installation within automation cabinets. Operating at a rated power of up to 5.5 kW / 7.5 hp and a rated voltage range of 380V to 500V AC, it offers robust performance suitable for diverse industrial applications.
Featuring IEC 60721-3-3 class 3C3 coated printed circuit boards, this drive ensures extended machine availability even in harsh environmental conditions, withstanding ambient temperatures of up to 60°C without requiring additional cooling. It incorporates various functions tailored for common applications, including torque and speed accuracy at low speeds, high dynamic performance with flux vector control without sensors, and an extended frequency range for high-speed motors.
Technical Specifications
|
Part # |
ATV320U55N4B |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
POWER FACTOR |
POWER RATING MULTIPLIER - 0.1 |
|
POWER RATING |
POWER RATING 55 |
|
SUPPLY VOLTAGE |
Three phase supply voltage: 380-500 VAC, 50/60 Hz |
|
special |
BOOK FORM FACTOR Range of produc |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Complex machines |
|
variant |
Standard version |
|
Format of the drive |
Book |
|
Mounting mode |
Wall mount |
|
[Us] rated supply voltage |
380...500 V - 15...10 % |
|
Nominal output current |
14.3 A |
|
Motor power kW |
5.5 kW for heavy duty |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP20 |
|
Minimum switching current |
Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC |
|
Method of access |
Slave CANopen |
|
4 quadrant operation possible |
True |
|
Synchronous motor control profile |
True |
|
Vector control without sensor |
True |
|
Transient overtorque |
170…200 % of nominal motor torque |
|
Maximum output frequency |
0.599 kHz |
|
Nominal switching frequency |
4 kHz |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
True Maximum input current |
20.7 A |
|
Maximum output voltage |
500 V |
|
Apparent power |
12.6 kVA at 500 V (heavy duty) |
|
Network frequency |
50...60 Hz |
|
Relative symmetric network frequency tolerance |
5 % |
|
Prospective line Isc |
22 kA |
|
Base load current at high overload |
14.3 A |
|
Maximum acceleration under shock impact |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
60 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-25…70 °C |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV320U55N4B
The ATV320U55N4B is a variable speed drive from the Altivar Machine ATV320 series designed to supply power to 3-phase synchronous and asynchronous motors. Featuring a book form factor, it offers a straightforward and space-saving installation in automation cabinets. Operating at a rated power of up to 5.5 kW (or 7.5 hp) and a rated voltage range of 380V to 500V AC, it caters to various industrial applications.
Its robust design, equipped with IEC 60721-3-3 class 3C3 coated printed circuit boards, ensures machine availability even in harsh environmental conditions, such as ambient temperatures of up to 60°C, eliminating the need for additional cooling mechanisms.
The ATV320U55N4B incorporates functions tailored for diverse applications, including torque and speed accuracy at low speeds, dynamic performance with flux vector control without sensor, and an extended frequency range for high-speed motors. It supports parallel connection of motors and special drives, utilizing the voltage/frequency ratio and static speed accuracy, enhancing energy efficiency for open-loop synchronous motors.
Safety is paramount, with the drive software offering five safety functions to meet safety requirements, adaptable with or without a Preventa safety module, configured using SoMove software.
Designed for Original Equipment Manufacturers (OEMs), the Altivar Machine ATV320 is suitable for simple to advanced applications in various industries such as packaging, material handling, textile, material working, mechanical actuators, and hoisting.
