ATV320U75M3C | Schneider Electric | Variable speed drive
ATV320U75M3C | Schneider Electric | Variable speed drive
Part #: ATV320U75M3C Manufactured by: Schneider Electric

ATV320U75M3C | Schneider Electric | Variable speed drive

Regular price
$1,384.00
Sale price
$1,384.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview

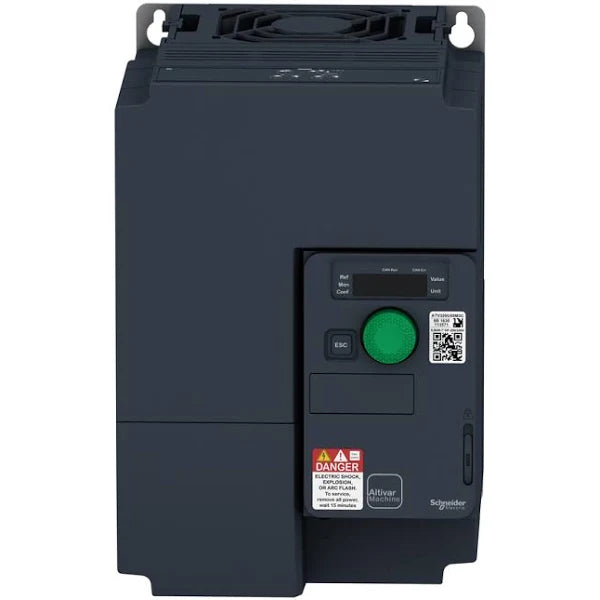

The Altivar Machine ATV320 is a variable speed drive tailored for Original Equipment Manufacturers (OEMs). Its compact des...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV320U75M3C
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV320U75M3C | Schneider Electric | Variable speed drive
    ATV320U75M3C | Schneider Electric | Variable speed drive
ATV320U75M3C | Schneider Electric | Variable speed drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV320U75M3C

Description / Specifications

Description



The Variable Speed Drive, Altivar Machine ATV320, is part of a range designed specifically for Original Equipment Manufacturers (OEMs). With a compact design, it allows vertical stacking of drives within machine frames. Operating at a rated power of up to 7.5kW / 10hp and a rated voltage ranging from 200V to 240V AC, it is suitable for various industrial applications.

Featuring robust design elements such as IEC 60721-3-3 class 3C3 coated printed circuit boards, it ensures extended machine availability even in harsh environmental conditions, including ambient temperatures of up to 60°C without additional cooling requirements.





Technical Specifications



Specifications





Part #

ATV320U75M3C

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive variant

Standard version

Format of the drive

Mounting Mode

Wall mount

Communication Port Protocol

Modbus serial

[Us] Rated Supply Voltage

200...240 V - 15...10 %

Nominal Output Current

33.0 A

Motor Power kW

7.5 kW heavy duty

EMC Filter

Without EMC filter

IP Degree of Protection

IP20

Discrete Input Number

7

Discrete Input Type

STO safe torque off, 24 V DC1.5 kOhm

Discrete Input Logic

Positive logic (source)

 Discrete Input Logic

Negative logic (sink)

Discrete Output Number

3

Discrete Output Type

Open collector DQ+ 0…1 kHz 30 V DC 100 mA

Analogue Input Number

3

Analogue Input Type

AI1 voltage 0...10 V DC 30 kOhm 10 bits

Analogue Output Number

1

Analogue Output Type

Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits

Relay Output Type

Configurable relay logic R1A 1 NO 100000 cycles

Maximum Switching Current

Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC

Minimum Switching Current

Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Method of Access

Slave CANopen

4 Quadrant Operation Possible

True

Asynchronous Motor Control Profile

Voltage/frequency ratio, 5 points

Synchronous Motor Control Profile

Vector control without sensor

Transient Overtorque

170…200 % of nominal motor torque

Maximum Output Frequency

0.599 kHz

Acceleration and Deceleration Ramps

Linear

Ramp Switching

Acceleration/deceleration ramp adaptation

Motor Slip Compensation

Automatic whatever the load

Switching Frequency

2...16 kHz adjustable

Nominal Switching Frequency

4 kHz

Braking to Standstill

By DC injection

Line Current

45.3 A 200 V heavy duty)

 Line Current

38.2 A 240 V heavy duty)

Maximum Input Current per Phase

45.3 A

Maximum Output Voltage

240 V

Apparent Power

15.9 kVA 240 V heavy duty)





Information About ATV320U75M3C



The Altivar Machine ATV320 is a variable speed drive catering specifically to Original Equipment Manufacturers (OEMs). Engineered with a compact design, it enables vertical stacking within machine frames, optimizing space utilization. Operating within a voltage range of 200V to 240V AC, it delivers a rated power of up to 7.5kW or 10hp across three phases.

Crafted with robustness in mind, the Altivar Machine ATV320 features IEC 60721-3-3 class 3C3 coated printed circuit boards, ensuring reliability even in harsh environmental conditions, such as temperatures of up to 60°C, without necessitating additional cooling measures.

This versatile drive incorporates functionalities tailored to common industrial applications, including precise torque and speed control at low speeds, dynamic performance enhancement via flux vector control without sensors, and an extended frequency range for high-speed motors. It supports parallel connection of motors and special drives using the voltage/frequency ratio, alongside offering static speed accuracy and energy-saving features for open-loop synchronous motors.

Weighing 3.6kg and measuring 150mm wide, 232mm high, and 178mm deep, the ATV320 drive is designed to seamlessly integrate into OEM machinery across diverse sectors such as packaging, material handling, textiles, material working, mechanical actuators, and hoisting.

Compliant with international standards such as IEC, UL, TUV, and KC, the Altivar Machine ATV320 includes mounting accessories and external options like braking resistors, line chokes, motor chokes, and additional EMC filters. The availability of external accessories and options varies based on the drive rating.







Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
