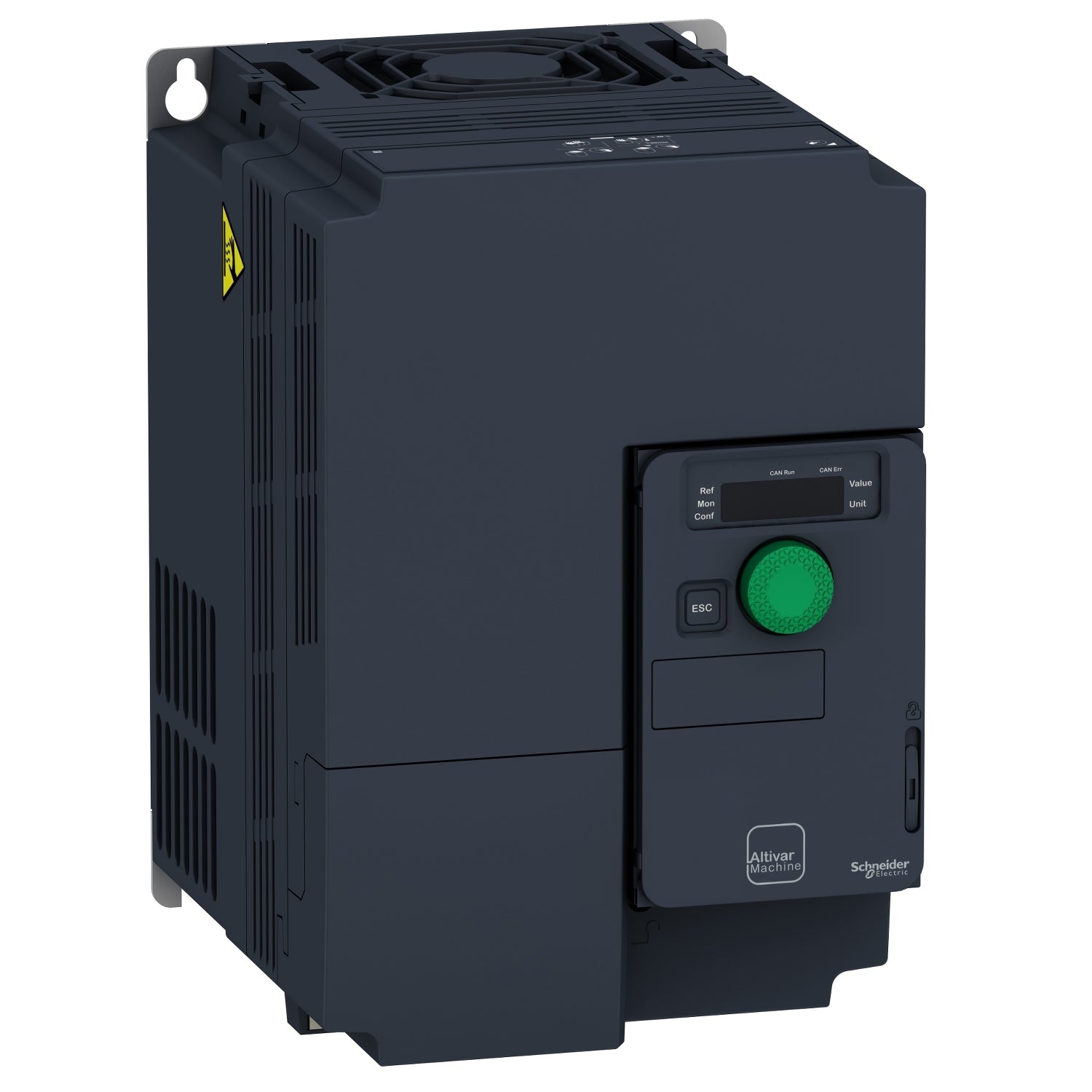

ATV320U75N4C | Schneider Electric Variable speed drive, Altivar Machine ATV320, 7.5kW, 380 to 500V, 3 phases, compact
- Regular price
- $555.00
- Sale price
- $555.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV320U75N4C
Description
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar ATV320, 380 to 500 V, 26.5 A at 380 V/18.7 A at 500 V Heavy Duty, 5.91 in Width, 7.01 in Depth, 9.13 in Height, IP20 Enclosure, Wall Mounting.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV320U75N4C |
| Category | Controls & Indicators |
| Subcategory | Frequency Converter |
| Amperage Rating | 26.5 A at 380 V/18.7 A at 500 V Heavy Duty |
| Depth | 7.01 in |
| Enclosure Type | IP20 |
| Height | 9.13 in |
| Mounting type | Wall |
| Series | Altivar ATV320 |
| Type | 3-Phase |
| Voltage Rating | 380 to 500 V |
| Width | 5.91 in |
| Operating Temperature | -10°C ~ 60°C |
Information About ATV320U75N4C
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 2.2kg and its dimensions are 150mm wide, 232mm high, 172mm deep. Altivar Machine ATV320 meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is labeled Green Premium and complies with environmental protection directives such as RoHS, WEEE, etc.
