ATV61HC22N4D | Schneider Electric Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE
ATV61HC22N4D | Schneider Electric Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE
Part #: ATV61HC22N4D Manufactured by: Schneider Electric

ATV61HC22N4D | Schneider Electric Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE

Regular price
$14,952.00
Sale price
$14,952.00
Regular price
Never Used Surplus
1 in Stock
Shipping calculated at checkout.
Product Overview

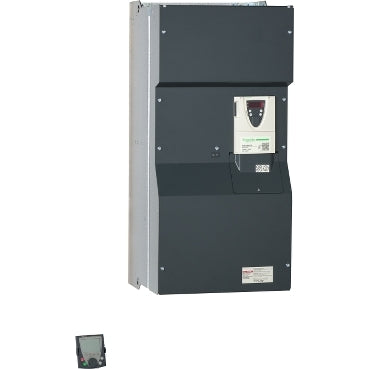

Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV61HC22N4D
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV61HC22N4D | Schneider Electric Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE
    ATV61HC22N4D | Schneider Electric Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE
ATV61HC22N4D | Schneider Electric Variable Speed Drive Altivar 61 - 220kW 300-350hp - 460V IP20 NO DC CHOKE
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV61HC22N4D

Description / Specifications

Description

Variable Speed / Frequency Drive (VSD/VFD) / Inverter with built-in EMC filter (class C3) + built-in heatsnk. - ATEX compliant - IP21 / UL type 1 version - Schneider Electric (Altivar Process 630 series) - Rated output 220kW / 350HP / 427A - Supply voltage 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) (3-phase (3P)) - with Modbus / Modbus TCP / Ethernet communication capability - Wall mounting - Replaces ATV61HC22N4 / ATV61HC22N4D / ATV61HC22N4D387



Technical Specifications



Brand Schneider Electric
Part Number ATV61HC22N4D
Category Drives
Subcategory Drive
Range of Product Altivar 61
Product or Component Type Variable speed drive
Product Specific Application Pumping and ventilation machine
Motor power kW 200 kW, 3 phase 380...480 V
220 kW, 3 phase 380...480 V
Maximum Horse Power Rating 300 hp, 3 phase 380...480 V
350 hp, 3 phase 380...480 V
Power supply voltage 380...480 V - 15...10 %
Supply number of phases 3 phase
Line current 331 A 480 V 3 phase 200 kW / 300 hp
357 A 380 V 3 phase 200 kW / 300 hp
383 A 480 V 3 phase 220 kW / 350 hp
396 A 380 V 3 phase 220 kW / 350 hp
EMC filter Level 3 EMC filter
Variant Without DC choke
Assembly style With heat sink
Apparent power 235 kVA 380 V 3 phase 200 kW / 300 hp
260.6 kVA 380 V 3 phase 220 kW / 350 hp
Maximum prospective line Isc 50 kA 3 phase
Maximum transient current 512.4 A 60 s, 3 phase
Nominal switching frequency 2.5 kHz
Switching frequency 2...8 kHz adjustable
2.5...8 kHz with derating factor
Asynchronous motor control Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio, 2 points
Synchronous motor control profile Vector control without sensor, standard
Communication port protocol CANopen
Modbus
Type of polarization No impedance Modbus
Option card Communication card APOGEE FLN
Communication card BACnet
Communication card CC-Link
Controller inside programmable card
Communication card DeviceNet
Communication card EtherNet/IP
Communication card Fipio
I/O extension card
Communication card Interbus-S
Communication card LonWorks
Communication card METASYS N2
Communication card Modbus Plus
Communication card Modbus TCP
Communication card Modbus/Uni-Telway
Multi-pump card
Communication card Profibus DP
Communication card Profibus DP V1
Product destination Asynchronous motors
Synchronous motors
Power supply voltage limits 323…528 V
Power supply frequency 50...60 Hz - 5...5 %
Power supply frequency limits 47.5...63 Hz
Continuous output current 427 A 2.5 kHz, 380 V - 3 phase
427 A 2.5 kHz, 460 V - 3 phase
Output frequency 0.1…500 Hz
Speed range 1…100 in open-loop mode, without speed feedback
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback
Torque accuracy +/- 15 % in open-loop mode, without speed feedback
Transient overtorque 130 % of nominal motor torque +/- 10 % 60 s
Braking torque <= 125 % with braking resistor
30 % without braking resistor





Information About ATV61HC22N4D

The Schneider Electric ATV61HC22N4D is a Variable Speed Drive (VSD) from the Altivar 61 series, offering precise motor control in industrial applications. With a power rating of 220 kW (300-350 hp) and a voltage of 460V, this drive ensures efficient and reliable operation of electric motors.

Designed for versatility, the ATV61HC22N4D provides advanced features for speed and torque control, optimizing energy consumption and enhancing overall system performance. Its robust construction and IP20 rating make it suitable for installation in various environments, providing protection against dust and solid objects.

The absence of a DC choke in this configuration simplifies installation, and its compact design facilitates integration into electrical panels. The drive's compatibility with Schneider Electric's Altivar series ensures seamless communication with other components in the control system, contributing to a cohesive and efficient automation solution.

Equipped with advanced diagnostic capabilities, the ATV61HC22N4D enables proactive maintenance, reducing downtime and enhancing the lifespan of connected equipment. The drive's user-friendly interface and programming tools simplify setup and configuration, ensuring quick and efficient commissioning.

Whether used in pumping, ventilation, or other industrial applications, the Schneider Electric ATV61HC22N4D Variable Speed Drive stands out for its reliability, performance, and energy efficiency. As part of the Altivar 61 series, it reflects Schneider Electric's commitment to delivering innovative solutions for motor control and automation in diverse industrial settings.
