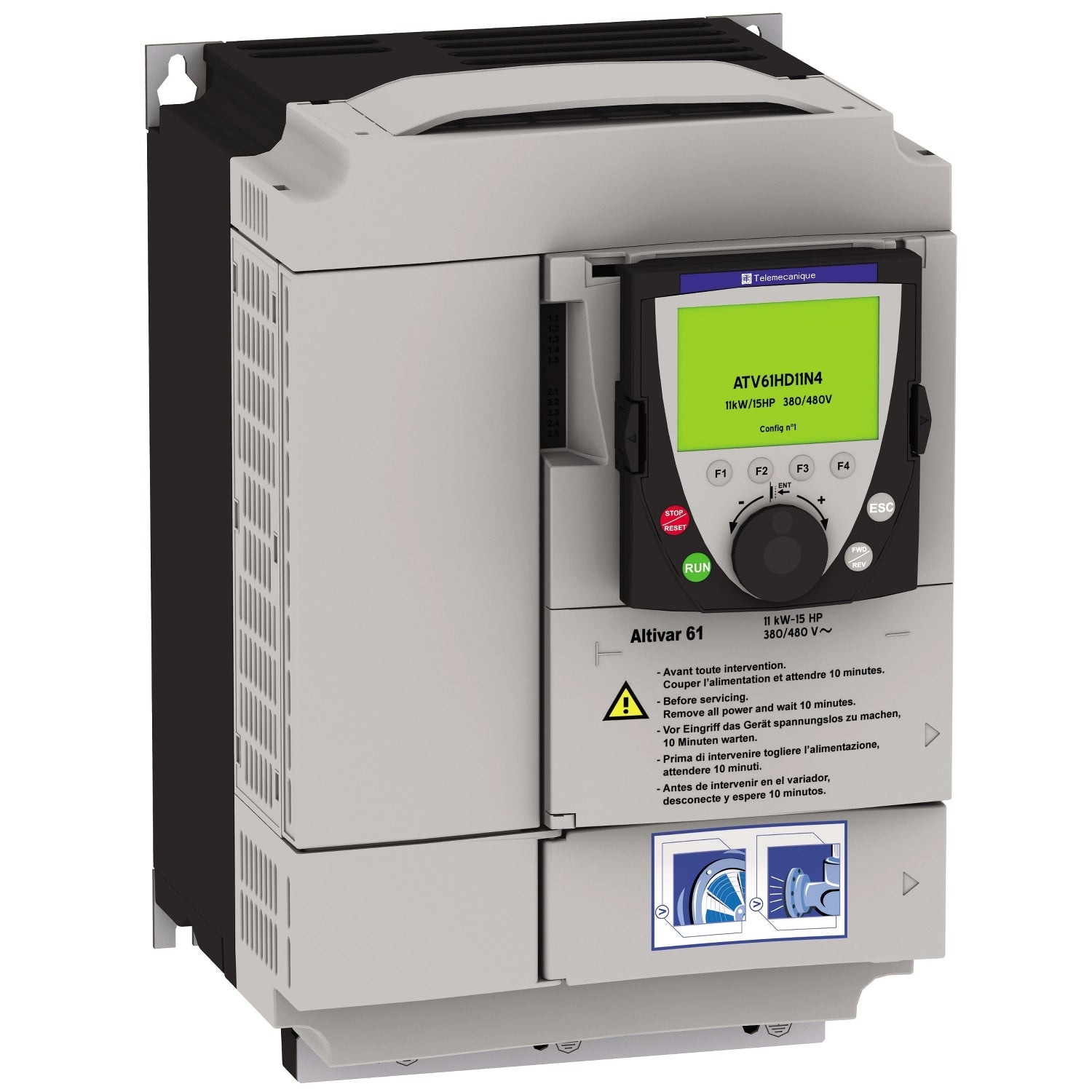

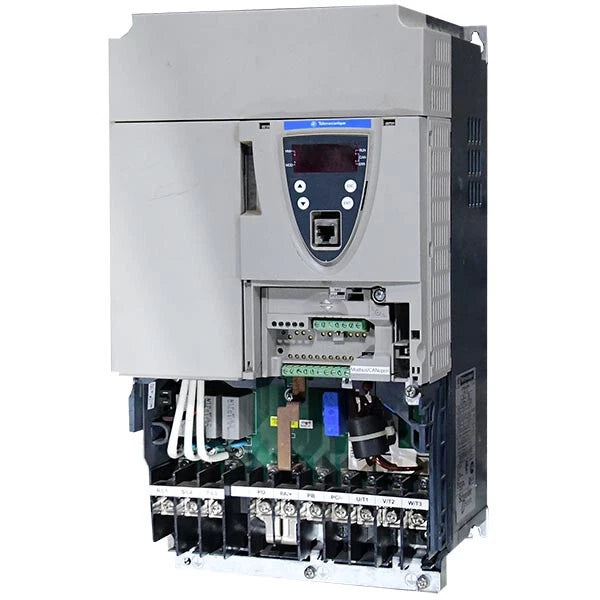

ATV61HD18N4 | Schneider Electric Altivar 61 Variable Speed Drive 18.5 kW 480V
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV61HD18N4
Description
The Schneider Electric ATV61HD18N4 is a variable speed drive engineered for controlling the speed and torque of three-phase AC motors in industrial environments. Designed for applications such as pumping, ventilation, and process automation, it delivers precise motor control and energy optimization. This drive operates on 380–480 V power systems and supports advanced communication and control functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Variable Frequency Drives |
| Part Number | ATV61HD18N4 |
| Subcategory | Variable Speed Drives |
| Series | Altivar 61 |
| Motor Power Rating | 18.5 kW (25 HP) |
| Supply Voltage | 380–480 V AC |
| Input Phase | 3 Phase |
| Line Current @ 380 V | 45.5 A |
| Line Current @ 480 V | 37.5 A |
| Control Type | Variable Frequency / Variable Speed |
| Communication Interfaces | Modbus, CANopen |
| EMC Filter | Integrated EMC Filter (Level 3) |
| IP Rating | IP20 |
| Enclosure Type | NEMA 1 (panel mounted) |
| Product Status | Discontinued |
| Weight | 33.07 lb (14.52 kg) |
Information About ATV61HD18N4
The ATV61HD18N4 is part of the Schneider Electric Altivar 61 series, a platform developed for high-performance motor control in demanding industrial processes. It features a robust internal design with integrated EMC filtering and supports both Modbus and CANopen communication for seamless system integration. The drive is optimized for variable torque and constant torque applications, including HVAC, water treatment, and industrial fluid handling systems. Although discontinued, it remains widely used in existing installations due to its reliability, configurability, and compatibility with standard three-phase induction motors.
Key Features:
- 18.5 kW Motor Rating: Supports 25 HP three-phase motors for medium-duty industrial applications
- Wide Voltage Range: Operates on 380–480 V AC three-phase power supplies
- Integrated EMC Filter: Built-in EMC Level 3 filter reduces electromagnetic interference
- Advanced Motor Control: Provides precise speed and torque regulation for process optimization
- Multiple Communication Protocols: Native Modbus and CANopen ports for automation systems
- Industrial Drive Architecture: Designed for continuous operation in process and HVAC environments
- IP20 Protection Rating: Suitable for installation in enclosed control panels
The ATV61HD18N4 delivers the reliability and precision required for variable speed motor control in industrial pumping, ventilation, and process systems.
