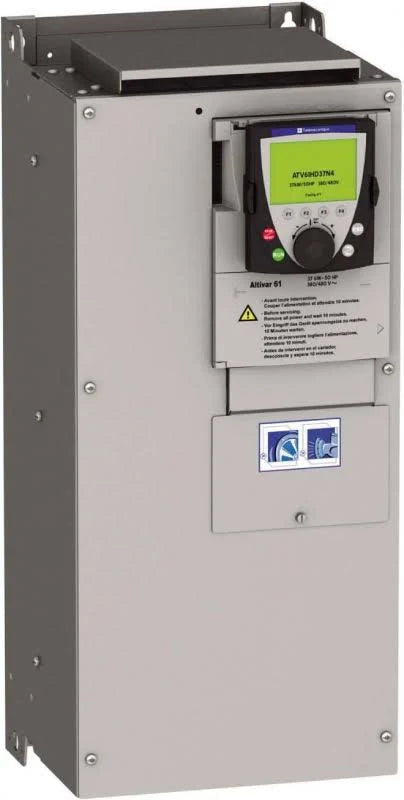

ATV61HD30N4 | Schneider Electric Variable speed drive, ATV61, 40 HP, 380 to 480 V 3 phase, EMC IP20 with graphic terminal
- Regular price
- $2,515.00
- Sale price
- $2,515.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV61HD30N4
Description
The Schneider Electric ATV61HD30N4, a part of the Altivar 61 range, is a variable-speed drive designed to elevate the performance of pumping and ventilation machines. Manufactured by Schneider Electric, this AC drive stands as a testament to the company's commitment to delivering innovative solutions for industrial applications, providing a powerful and efficient solution for diverse motor control needs.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV61HD30N4 |
| Category | Drives |
| Subcategory | Drive |
| Horsepower Rating | 30 HP |
| IP Rating | IP20 |
| Output Frequency | 50 to 60 Hz |
| Phase | Three-Phase Phase |
| Series | Altivar ATV 61 Series |
| Supply Voltage | 575/690 VAC |
| Storage Temperature | -13degrees To 158 degrees F (-25degrees To 70 degrees C) |
Information About ATV61HD30N4
The Schneider Electric ATV61HD30N4, a part of the Altivar 61 range, is a variable-speed drive designed to elevate the performance of pumping and ventilation machines. Manufactured by Schneider Electric, this AC drive stands as a testament to the company's commitment to delivering innovative solutions for industrial applications, providing a powerful and efficient solution for diverse motor control needs.
Product Specifics:
The ATV61HD30N4 is engineered to meet the demanding requirements of pumping and ventilation machines. With a motor power of 30 kW and 40 hp, it operates seamlessly in 3 phases at a voltage range of 380 to 480 V. The variable speed drive offers a supply voltage flexibility of 15 to 10%, accommodating the dynamic nature of industrial power supplies.
Performance and Control:
Line Current: With a line current of 56 A for 480 V in 3 phases, the ATV61HD30N4 ensures efficient power utilization for optimal machine performance.
Switching Frequency: The drive features a nominal switching frequency of 12 kHz, providing precise control over the motor operation. Additionally, the switching frequency is adjustable in the range of 1 to 16 kHz, allowing customization based on specific application requirements.
Motor Control Profiles: The ATV61HD30N4 offers versatile motor control capabilities, supporting voltage/frequency ratio with 5 points for asynchronous motor control and vector control without a sensor for synchronous motor control.
Communication and Connectivity:
The AC drive is equipped with various communication options to enhance connectivity and integration into industrial networks. It supports the CANopen communication port protocol and features a communication card for APOGEE FLN, showcasing its compatibility with diverse communication systems.
Design and Assembly:
EMC Filter: The drive incorporates a Level 3 EMC filter, ensuring electromagnetic compatibility and reducing interference, thereby enhancing the reliability of the entire system.
Assembly Style: Designed with a heat sink, the ATV61HD30N4 optimizes heat dissipation, contributing to its overall efficiency and longevity.
Option Cards:
The ATV61HD30N4 supports option cards, including a communication card for APOGEE FLN. This demonstrates its adaptability to specific industrial communication protocols and the ability to seamlessly integrate with broader control systems.
Prospective Line Isc and Transient Current:
The drive features a maximum prospective line Isc of 22 kA for 3 phases, providing robust protection against potential faults. In case of transient events, the ATV61HD30N4 can handle a maximum transient current of 79.2 A for 60 seconds in 3 phases, ensuring stability during dynamic operating conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
