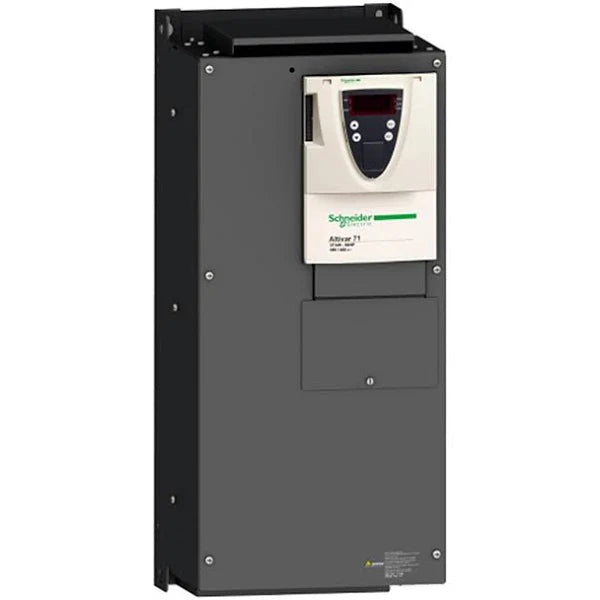

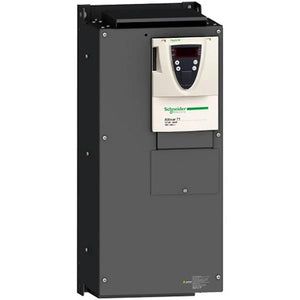

ATV61HU55N4Z | Schneider Electric Variable speed drive, ATV61, 5.5kW, 7.5HP, 380...480V, 0.1…599Hz, CANopen, Modbus
- Regular price
- $1,178.00
- Sale price
- $1,178.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: ATV61HU55N4Z
Description
The Schneider Electric ATV61HU55N4Z is a Variable Speed Drive with a power rating of 5.5 kW (7.5 HP) and voltage range of 380-480V. Operating in a frequency range of 0.1 to 599Hz, it supports communication protocols CANopen and Modbus for enhanced control and automation capabilities.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV61HU55N4Z |
| Category | Drives |
| Subcategory | Drive |
| Range of Product | Altivar 61 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Pumping and ventilation machine |
| Motor power kW | 5.5 kW, 3 phase 380...480 V |
| Maximum Horse Power Rating | 7.5 hp, 3 phase 380...480 V |
| Power supply voltage | 380...480 V - 15...10 % |
| Supply number of phases | 3 phase |
| Line current | 17 A 480 V 3 phase 5.5 kW / 7.5 hp 20.3 A 380 V 3 phase 5.5 kW / 7.5 hp |
| EMC filter | Level 3 EMC filter |
| Variant | Without remote graphic terminal |
| Assembly style | With heat sink |
| Apparent power | 13.4 kVA 380 V 3 phase 5.5 kW / 7.5 hp |
| Maximum prospective line Isc | 22 kA 3 phase |
| Maximum transient current | 17.1 A 60 s, 3 phase |
| Nominal switching frequency | 12 kHz |
| Switching frequency | 1...16 kHz adjustable 12...16 kHz with derating factor |
| Asynchronous motor control | Flux vector control without sensor, standard Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor, standard |
| Communication port protocol | Modbus CANopen |
| Type of polarization | No impedance Modbus |
| Option card | Communication card APOGEE FLN Communication card BACnet Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Communication card LonWorks Communication card METASYS N2 Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Multi-pump card Communication card Profibus DP Communication card Profibus DP V1 |
| Product destination | Asynchronous motors Synchronous motors |
| Power supply voltage limits | 323…528 V |
| Power supply frequency | 50...60 Hz - 5...5 % |
| Power supply frequency limits | 47.5...63 Hz |
| Continuous output current | 11 A 12 kHz, 460 V - 3 phase 14.3 A 12 kHz, 380 V - 3 phase |
| Output frequency | 0.1…599 Hz |
| Speed range | 1…100 in open-loop mode, without speed feedback |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn without speed feedback |
| Torque accuracy | +/- 15 % in open-loop mode, without speed feedback |
| Transient overtorque | 130 % of nominal motor torque +/- 10 % 60 s |
| Braking torque | <= 125 % with braking resistor 30 % without braking resistor |
Information About ATV61HU55N4Z
The Schneider Electric ATV61HU55N4Z is a Variable Speed Drive (VSD) designed for precise motor control. With a power rating of 5.5 kW (7.5 HP) and a voltage range of 380-480V, it ensures efficient operation of electric motors in diverse industrial applications. The frequency range of 0.1 to 599Hz allows for versatile speed and torque control.
Equipped with advanced communication protocols, including CANopen and Modbus, the ATV61HU55N4Z facilitates seamless integration into automation systems. This enhances control capabilities and enables communication with other devices in the network, contributing to a comprehensive and interconnected industrial solution.
The VSD's compact design and user-friendly interface simplify installation and programming. The CANopen and Modbus protocols support efficient data exchange, allowing for real-time monitoring and adjustment of motor parameters. This promotes energy efficiency and optimal performance, contributing to cost savings and reduced environmental impact.
The ATV61HU55N4Z incorporates advanced features such as dynamic braking and motor control algorithms, ensuring precise and reliable operation. Its versatility makes it suitable for various applications, including pumps, fans, and conveyors. Additionally, the VSD supports proactive maintenance with built-in diagnostic tools, reducing downtime and enhancing the overall reliability of the connected systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
