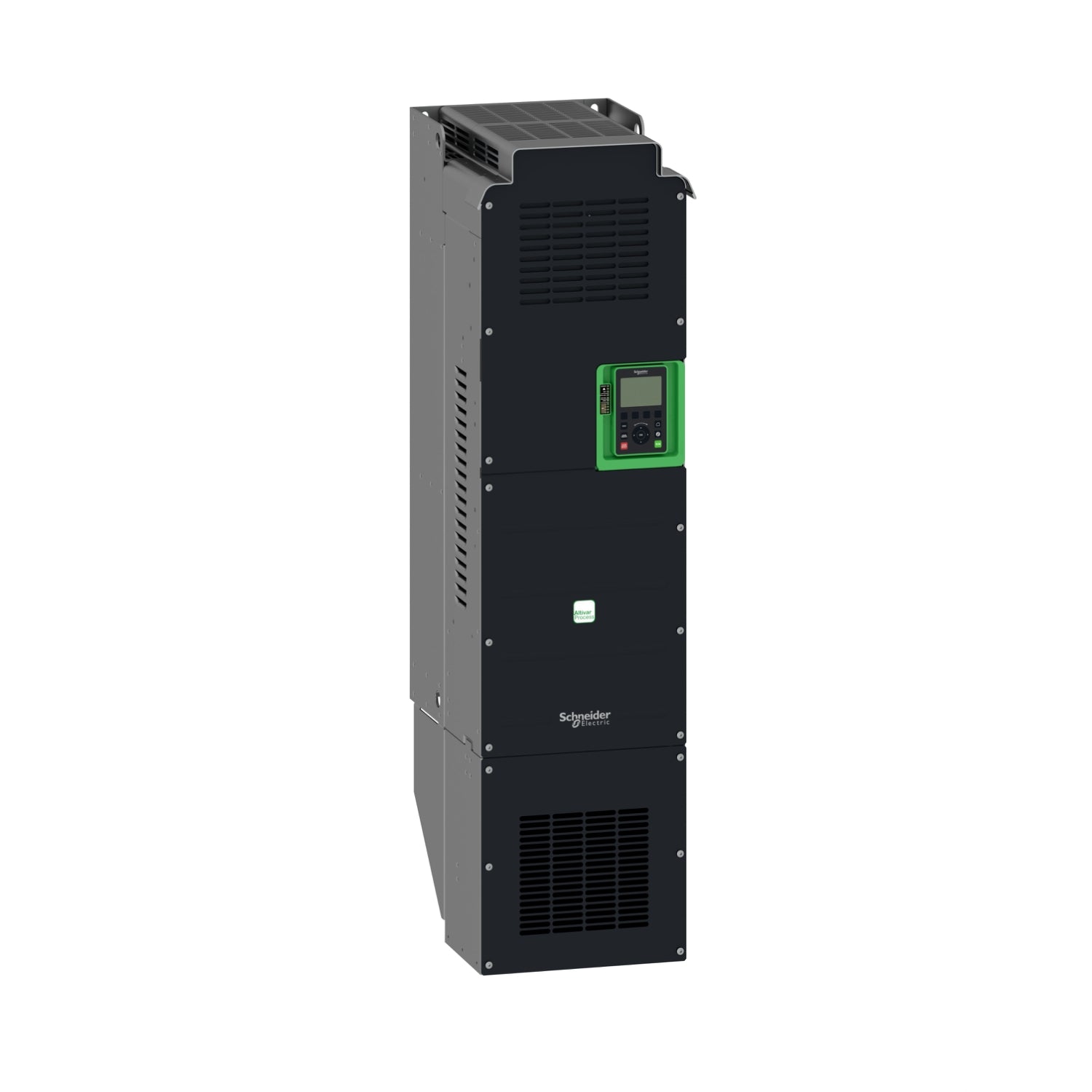

ATV630C16N4 | Schneider Electric Variable Speed Drive, Altivar Process ATV600, 160 kW / 250 hp, 380–480 V AC, IP00
- Regular price
- $8,599.00
- Sale price
- $8,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV630C16N4
Description
The Schneider Electric ATV630C16N4 is a variable speed drive designed for precise motor control in demanding industrial environments. As part of the Altivar Process ATV600 series, it supports a 160 kW (250 hp) motor load and operates within a 380–480 V AC supply range. Its IP00 construction provides flexible integration into protected control enclosures for a wide range of process applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Controls & Indicators |
| Part Number | ATV630C16N4 |
| Subcategory | Frequency Converter |
| Control / Drive Type | Variable Speed Drive |
| Compatible Motor Type | Synchronous / Asynchronous Motors |
| Power Rating | 160 kW / 250 hp |
| No. of Phases | Three Phase |
| Output Current Max | 302 A |
| Supply Frequency | 50 / 60 Hz |
| IP Rating | IP00 (drive), IP21 (with accessory) |
| Supply Voltage Min | 380 V AC |
| Supply Voltage Max | 480 V AC |
| Product Range | Altivar Process ATV600 Series |
| Mounting Orientation | Vertical, ±10° |
| Communication Ports | 3 × RJ45, 1 × Ethernet, 2 × Serial |
| Typical Application | Fluids processing, water/wastewater, industrial utilities |
| Dimensions (W × H × D) | 320 × 852 × 390 mm |
| Weight | 82 kg |
Information About ATV630C16N4
The ATV630C16N4 is a member of the Altivar Process ATV600 family, engineered for fluid and process-focused industrial control. It is built with a modular design that incorporates integrated communication ports and adaptable expansion options for system scalability. This drive is compatible with both synchronous and asynchronous three-phase motors, allowing easy integration into existing plant infrastructure. It is typically used in water handling, wastewater treatment, and other process-driven applications that require energy-efficient motor speed regulation.
Key Features:
- Process-oriented design: Optimized for fluid management and energy-focused applications.
- Wide motor compatibility: Supports synchronous and asynchronous three-phase motors.
- Integrated communication ports: Includes RJ45, Ethernet, and serial interfaces for system connectivity.
- Flexible voltage range: Operates from 380 to 480 V AC for global installation suitability.
- High power capacity: Rated for 160 kW (250 hp) with robust performance across load conditions.
- Modular expandability: Accepts optional I/O modules, EMC filters, and communication add-ons.
- Compact installation profile: IP00 form factor suited for protected cabinet mounting.
- Energy-efficient operation: Designed to support reduced consumption in process environments.
The ATV630C16N4 delivers the reliability and precision required for advanced motor control in industrial process systems.
