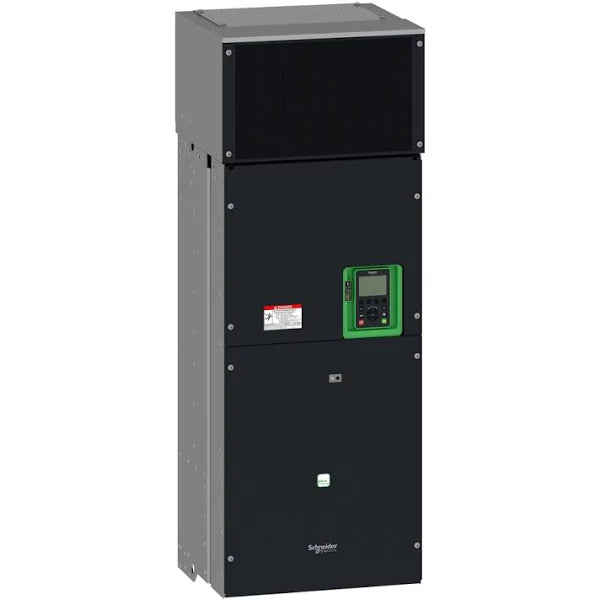

ATV630C22N4 | Schneider Electric | Variable speed drive
- Regular price
- $12,459.00
- Sale price
- $12,459.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: ATV630C22N4
Description
Technical Specifications
Specifications
|
Part # |
ATV630C22N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Controls & Indicators |
|
Subcategory |
Frequency Converter Device short name |
|
Variant |
Standard version |
|
Product destination |
Asynchronous motors, Synchronous motors |
|
EMC filter |
Integrated with 50 m conforming to EN/IEC 61800-3 category C3 |
|
IP degree of protection |
IP00 conforming to IEC 61800-5-1, IP00 conforming to IEC 60529, IP21 (with kit VW3A9112) conforming to IEC 61800-5-1, IP21 (with kit VW3A9112) conforming to IEC 60529 |
|
[Us] rated supply voltage |
380...480 V |
|
Type of cooling |
Forced convection |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
Motor power kW |
160 kW (heavy duty), 220 kW (normal duty) |
|
Motor power hp |
250 hp heavy duty, 350 hp normal duty |
|
Line current |
397 A at 380 V (normal duty), 324 A at 480 V (normal duty), 296 A at 380 V (heavy duty), 246 A at 480 V (heavy duty) |
|
Prospective line Isc |
50 kA |
|
Apparent power |
187 kVA at 480 V (heavy duty), 247 kVA at 480 V (normal duty) |
|
Continuous output current |
302 A at 2.5 kHz for heavy duty, 427 A at 2.5 kHz for normal duty |
|
Asynchronous motor control profile |
Constant torque standard, Variable torque standard, Optimized torque mode |
|
Synchronous motor control profile |
Permanent magnet motor, Synchronous reluctance motor |
|
Speed drive output frequency |
0.1…500 Hz |
|
Nominal switching frequency |
2.5 kHz |
|
Switching frequency |
2.5...8 kHz with derating factor, 2...8 kHz adjustable |
|
Safety function |
STO (safe torque off) SIL 3 |
|
Discrete input logic |
16 preset speeds |
|
Communication port protocol |
Modbus TCP, Ethernet, Modbus serial |
Information About ATV630C22N4
The Schneider Electric ATV630C22N4 Altivar Process Variable Speed Drive is designed to power 3-phase synchronous and asynchronous motors. Equipped with 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports, it operates within a rated supply voltage range of 380V to 480V AC.
Featuring the innovative "Stop and Go" operation, this drive achieves up to 30% energy savings during standby without additional costs. It is suitable for motors with power ratings up to 220kW / 350hp for slight overload applications (up to 120%) and up to 160kW / 250hp for significant overload applications (up to 150%).
Weighing 172kg, with dimensions of 440mm wide, 1195mm high, and 380mm deep, the ATV630C22N4 is focused on fluids management processing and energy conservation. It offers extensive flexibility across various applications including water and wastewater treatment, mining, minerals and metals processing, oil and gas, and food and beverage industries.
Accessories such as fan kits and graphic display terminals, along with options like I/O expansion modules, communication modules, and EMC input filters, are available for Altivar Process ATV600 drives, depending on the drive rating.
