Product Description P/N: ATV630D11M3
Description

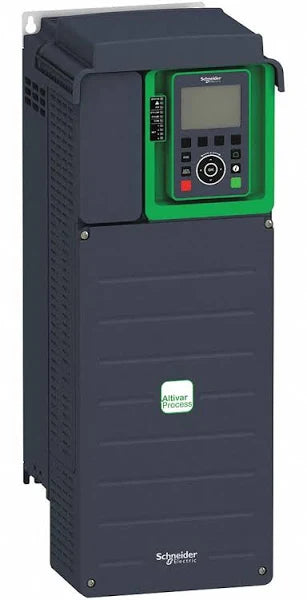

The ATV630D11M3 by Schneider Electric belongs to the Altivar Process ATV600 series and serves as a forced convection wall mount variable speed drive. Designed for the process industry and utilities, it provides embedded services tailored for three-phase synchronous, asynchronous, and special motors.
This variable speed drive holds certifications including ATEX zone 2/22, DNV-GL, ATEX INERIS, TUV, CSA, and UL. It adheres to several standards such as IEC 61000-3-12, EN/IEC 61800-3 environment 2 category C3, IEC 61508, IEC 60721-3, UL 508C, IEC 13849-1, EN/IEC 61800-3 environment 1 category C2, EN/IEC 61800-3, and EN/IEC 61800-5-1.
Technical Specifications
Specifications
Part # |
ATV630D11M3 |
Manufacturer |
SCHNEIDER ELECTRIC |
Brand |
SQUARE D |
Category |
Drives |
Subcategory |
Drive |
Display Type |
2-wire RS 485 |
Measurement Accuracy |
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
Physical Interface |
2-wire RS 485 |
Product Or Component Type |
Variable speed drive |
Range Of Product |
Altivar Process ATV600 |
Communication Port Protocol |
Ethernet |
Degree Of Protection |
UL type 1 conforming to UL 508C |
Design Of Frequency Changer |
U converter |
Device Short Name |
ATV630 |
EMC Filter |
Without EMC filter |
Method Of Access |
Slave Modbus TCP |
Motor Power Hp |
10 hp heavy duty |
Network Number Of Phases |
3 phases |
Number Of Input Phases |
3 |
Number Of Output Phases |
3 |
Product Specific Application |
Process and utilities |
Range Name |
Altivar Process ATV600 |
Relative Symmetric Mains Voltage Tolerance |
10 % |
Base Load Current At High Overload |
32.7 A |
Base Load Current At Low Overload |
46.8 A |
Brake Chopper Integrated |
False |
Braking To Standstill |
By DC injection |
Capacity Of DC Link |
4080 µF |
Computer Port |
True |
Continuous Output Current |
32.7 A at 4 kHz for heavy duty |
Data Format |
8 bits, configurable odd, even or no parity |
Depth |
232 mm |
Marking |
CE |
Maximum Associated Fuse Rating |
63 A |
Maximum Input Current |
39.3 A |
Maximum Output Frequency |
500 kHz |
Maximum Output Voltage |
240 V |
Motor Starter Type |
Variable speed drive |
Mounting Mode |
Wall mount |
Net Weight |
13.8 kg |
Network Frequency |
50...60 Hz |
Nominal Output Current |
46.8 A |
Nominal Output Power |
11 kW |
Nominal Switching Frequency |
4 kHz |
Number Of Addresses |
1-247 for Modbus serial |
Number Of HW Interfaces Industrial Ethernet |
1 |
Number Of HW Interfaces Serial RS485 |
1 |
Operating Element Present |
True |
Operating Position |
Vertical +/- 10 degree |
Optical Interface Present |
False |
Power Loss Per Device Current Dependent |
618 W |
Power Loss Static Current Independent |
22 W |
Power Range |
7-11 kW at 200-240 V 3 phases |
Product Destination |
Asynchronous motors |
Prospective Line Isc |
50 kA |
Supply Frequency |
50...60 Hz - 5...5 % |
Information About ATV630D11M3
The ATV630D11M3, manufactured by Schneider Electric, belongs to the Altivar Process 630 Series, designed as a forced convection wall mount variable speed drive. This variable speed drive is equipped with embedded services specifically tailored for the process industry and utilities, compatible with 3 phases synchronous, asynchronous, and special motors.
Certifications include ATEX zone 2/22, DNV-GL, ATEX INERIS, TUV, CSA, and UL. It adheres to various standards such as IEC 61000-3-12, EN/IEC 61800-3 environment 2 category C3, IEC 61508, IEC 60721-3, UL 508C, IEC 13849-1, EN/IEC 61800-3 environment 1 category C2, EN/IEC 61800-3, and EN/IEC 61800-5-1.
The device operates with a line current of 23.1A at 240V (heavy duty) and 27.2A at 200V (heavy duty) under heavy-duty conditions. Under normal duty, the line current is 32.9A at 240V and 39.3A at 200V. It features 11KW (normal duty) and 7.5KW (heavy duty) motor power in KW, and 15hp (normal duty) and 10hp (heavy duty) motor power in hp.
