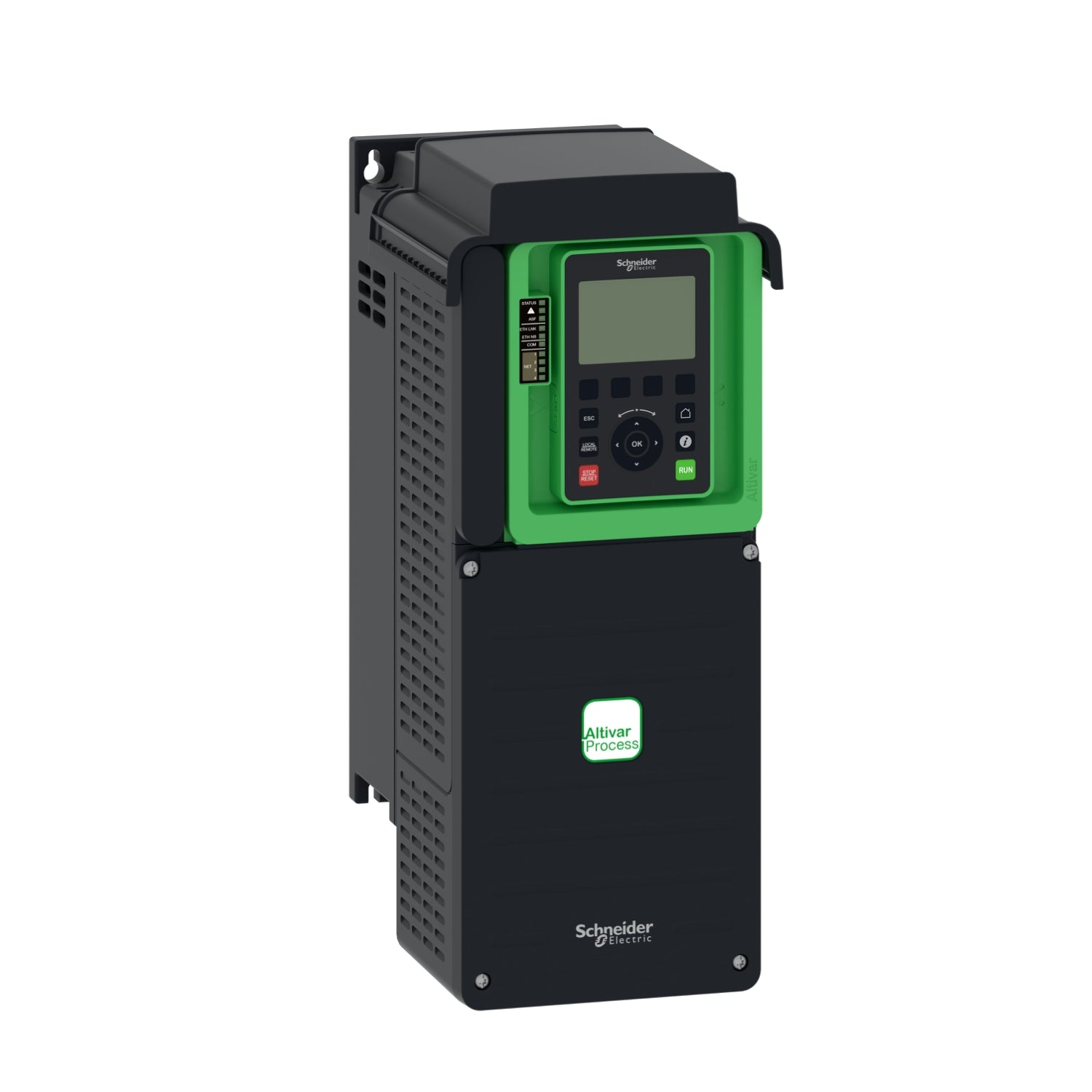

The ATV630D11N4 is part of the Schneider Electric Altivar Process ATV600 series and is designed to operate a wide range of synchronous and asynchronous motors in fluid management and process applications. It supports a supply voltage of 380–480 V AC and provides flexible communication through Ethernet, Modbus Serial, and Modbus TCP, enabling efficient integration into industrial control networks. The drive is suitable for motors up to 11 kW (15 HP) for light-overload applications and 7.5 kW (10 HP) for heavy-overload conditions, offering strong adaptability to system demands. With advanced energy-saving functions such as “Stop and Go,” along with optional accessories and expansion modules, this unit provides scalable performance for industries including water treatment, mining, oil and gas, and food processing.
Key Features
- Multi-Protocol Communication Support: Equipped with Ethernet, Modbus Serial, and Modbus TCP interfaces for seamless integration into diverse industrial network architectures.
- Wide Motor Compatibility: Operates both synchronous and asynchronous motors, supporting up to 11 kW (15 HP) in normal-duty applications and 7.5 kW (10 HP) in high-overload scenarios.
- High-Efficiency Energy Management: Features the “Stop and Go” function, reducing energy consumption by up to 30% during standby conditions without requiring additional hardware.
- Robust Industrial Protection: Offers IP20 and Type 1 enclosure ratings for dependable operation in controlled environments, with compliance to IEC and UL safety standards.
- Flexible Installation Options: Designed for vertical wall mounting, supporting clear airflow and optimal cooling performance within industrial cabinets.
- Optimized for Fluid and Process Control: Engineered to enhance the performance of pumps, compressors, and other fluid-handling equipment in water, wastewater, and process applications.
- Advanced Motor Control Performance: Provides precise torque and speed regulation, enabling stable motion control even under fluctuating loads or demanding duty cycles.
- Expandable System Architecture: Supports optional I/O modules, EMC filters, communication modules, and accessory components to tailor performance to specific system requirements.
The ATV630D11N4 delivers the reliability and precision required for variable speed control in fluid management, process automation, and demanding industrial applications.
