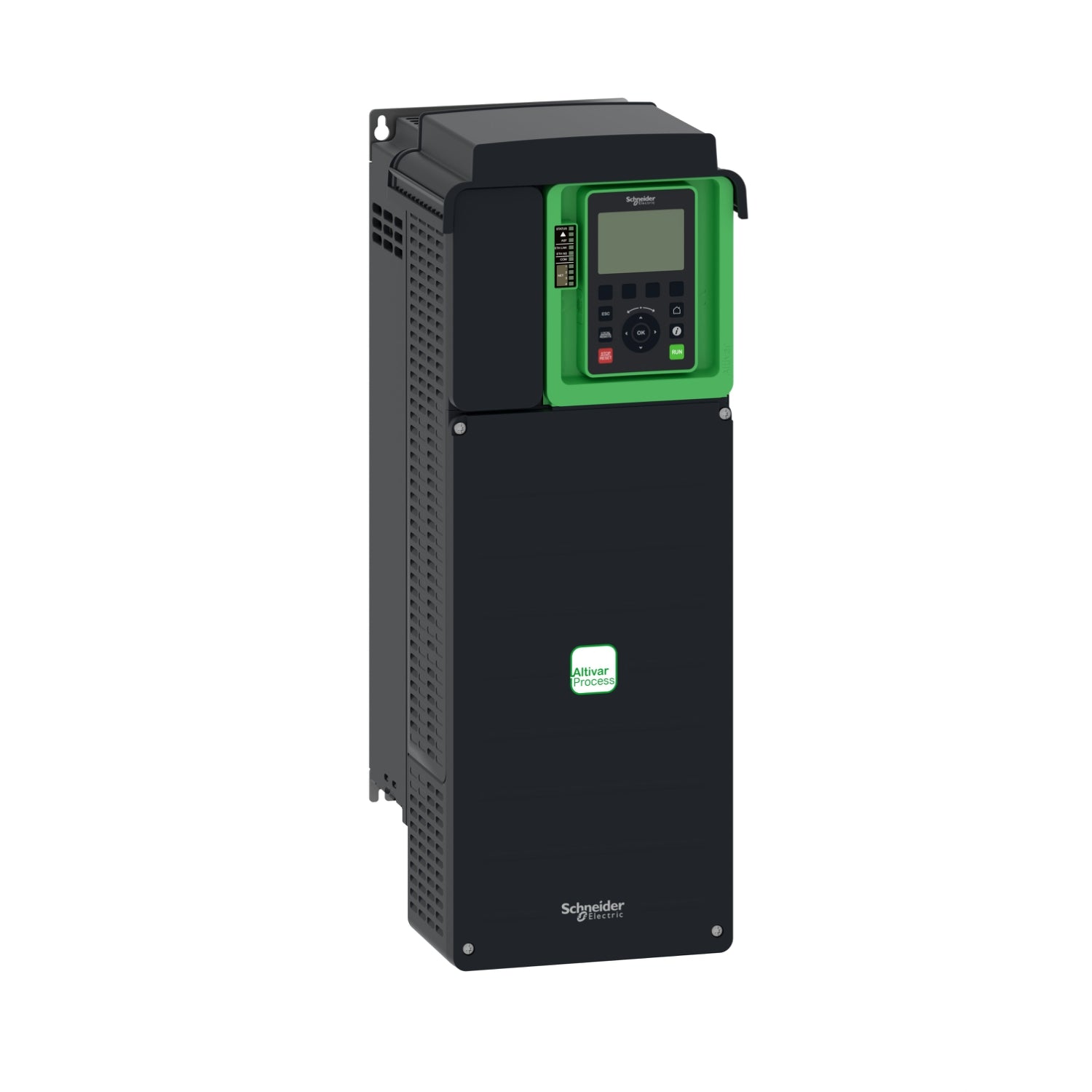

ATV630D15N4 | Schneider Electric | Variable speed drive
ATV630D15N4 | Schneider Electric | Variable speed drive
Part #: ATV630D15N4 Manufactured by: Schneider Electric

ATV630D15N4 | Schneider Electric | Variable speed drive

Regular price
$3,009.00
Sale price
$3,009.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The ATV630D15N4, part of the Altivar Process ATV600 series by Schneider Electric, is a variable speed drive engineered to ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV630D15N4
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV630D15N4 | Schneider Electric | Variable speed drive
    ATV630D15N4 | Schneider Electric | Variable speed drive
ATV630D15N4 | Schneider Electric | Variable speed drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV630D15N4

Description / Specifications

Description

The ATV630D15N4 is a variable speed drive from the Altivar Process ATV600 series, designed to power 3-phase synchronous and asynchronous power motors. Equipped with 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports, it ensures robust connectivity. Operating within a rated supply voltage range of 380V to 480V AC, it promotes energy efficiency with up to 30% energy savings during standby through the innovative 'Stop and Go' operation.


Technical Specifications



Part #

ATV630D15N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

Range of Product

Altivar Process ATV600

Product or Component Type

Variable speed drive

Product Specific Application

Process and utilities

Device short name

ATV630

[Us] rated supply voltage

380...480 V

Degree of protection

UL type 1 UL 508C

Type of cooling

Forced convection

Supply frequency

50...60 Hz - 5...5 %

Speed drive output frequency

0.1…500 Hz

Nominal switching frequency

4 kHz

Safety function

STO (safe torque off) SIL 3

Discrete input logic

16 preset speeds

Mounting Mode

Wall mount

Maximum transient current

34.9 A 60 s normal duty)

Phase

3 phase

Discrete output number

0

Acceleration and deceleration ramps

Linear adjustable separately from 0.01...9999 s

Physical interface

Ethernet

Braking to standstill

By DC injection

Data format

8 bits, configurable odd, even or no parity

Type of polarization

No impedance

Exchange mode

Half duplex, full duplex, autonegotiation

Number of addresses

1…247 Modbus serial

Method of access

Slave Modbus TCP

Isolation

Between power and control terminals

Maximum output frequency

500 kHz

Maximum Input Current per Phase

27.0 A

Insulation resistance

> 1 MOhm 500 V DC for 1 minute to earth

Noise level

59.5 dB 86/188/EEC

Power dissipation in W

Natural convection 59 W 380 V 4 kHz

Volume of cooling air

56798.01 Gal/hr(US) (215 m3/h)

Operating position

Vertical +/- 10 degree

Maximum THDI

<48 % from 80...100 % of load

Vibration resistance

1.5 mm peak to peak 2…13 Hz)

Shock resistance

15 gn 11 ms

Relative humidity

5…95 % without condensation

Ambient air temperature for operation

5…122 °F (-15…50 °C) without derating)

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Operating altitude

<= 3280.84 ft (1000 m) without derating

Overvoltage category

III

Regulation loop

Adjustable PID regulator



Information About ATV630D15N4

The ATV630D15N4 is a variable speed drive belonging to the Altivar Process ATV600 series. Designed by Schneider Electric, this drive is intended for use with 3-phase synchronous and asynchronous power motors. It boasts 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports for enhanced connectivity.

Operating within a rated supply voltage range of 380V to 480V AC, the ATV630D15N4 drive offers significant energy savings, up to 30%, through its innovative "Stop and Go" operation mode, even during standby periods, without incurring additional costs. It accommodates motors with power ratings of up to 15kW / 20hp for applications requiring slight overload (up to 120%) and up to 11kW / 15hp for applications demanding significant overload (up to 150%).

With a weight of 13.6kg and dimensions measuring 211mm in width, 546mm in height, and 232mm in depth, this drive is specifically engineered for fluids management processing and energy conservation. It finds application across a wide spectrum of industries, including water and wastewater, mining, minerals and metals, oil and gas, and food and beverage.

The ATV630D15N4 drive offers a range of accessories and options, including fan kits, graphic display terminals, I/O expansion modules, communication modules, and EMC input filters. These options are available based on the specific drive rating and application requirements.

Installation flexibility is ensured as the drive is designed for vertical mounting on a wall, with a tolerance of +/- 10°. This innovative drive concept addresses the critical needs of process and utilities industries by enhancing equipment efficiency, reducing total cost of ownership, and supporting energy management and asset optimization.
