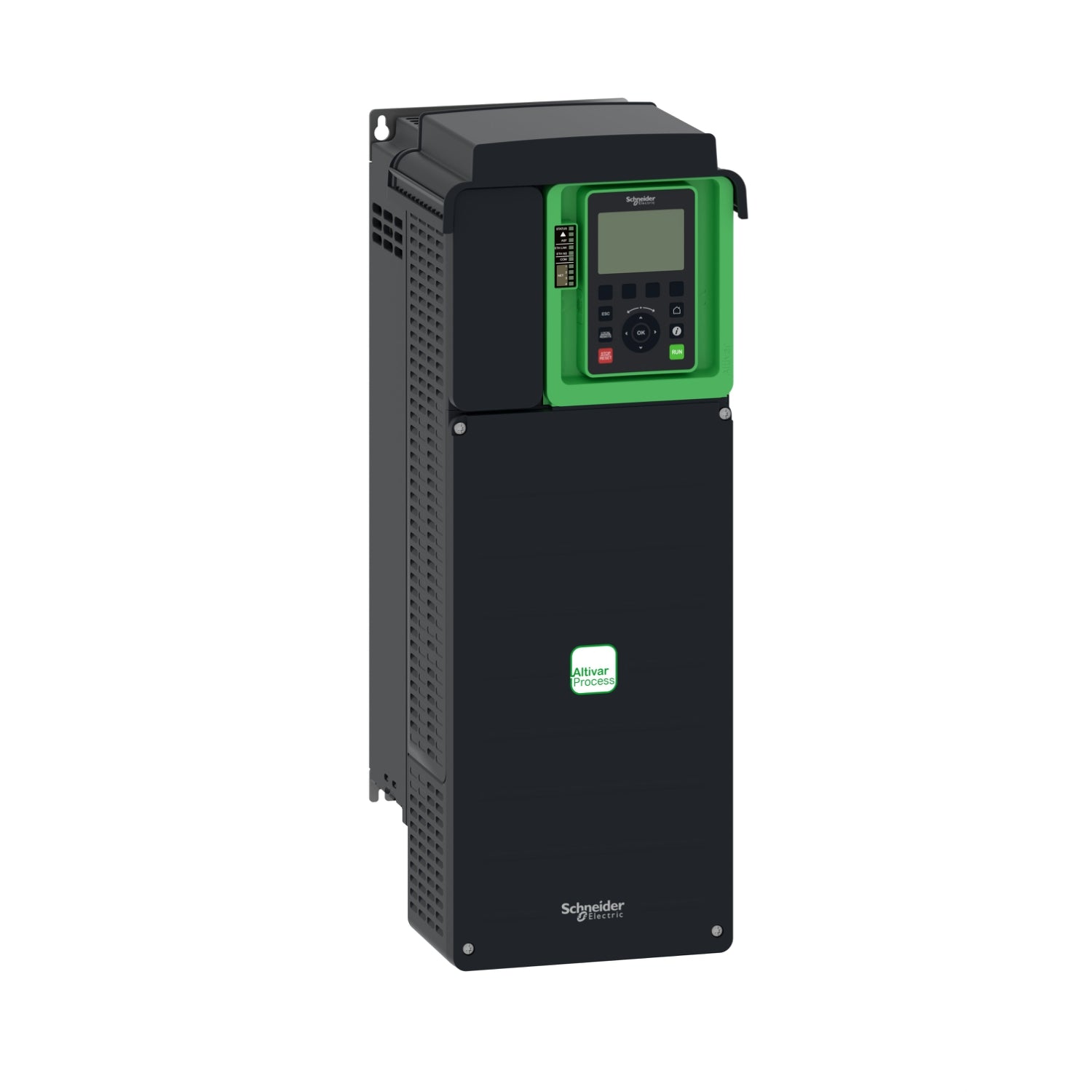

ATV630D18N4 | Schneider Electric Variable speed drive
- Regular price
- $1,387.00
- Sale price
- $1,387.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV630D18N4
Description
The ATV630D18N4 is a variable speed drive belonging to the Altivar Process ATV600 series. It is designed to control 3-phase synchronous and asynchronous power motors. Equipped with 3 RJ45 communication ports, 1 Ethernet port, and 2 serial ports as standard, this drive enables seamless connectivity. Operating within a rated supply voltage range of 380V to 480V AC, it offers efficient energy management, boasting up to 30% energy savings during standby through its innovative "Stop and Go" operation without additional costs.
Suitable for motors with power ratings of up to 18.5kW / 25hp for applications requiring slight overload (up to 120%), and up to 15kW / 20hp for applications requiring significant overload (up to 150%), the drive weighs 14.2kg and has dimensions of 211mm in width, 546mm in height, and 232mm in depth.
Technical Specifications
|
Part # |
ATV630D18N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
[Us] rated supply voltage |
380...480 V |
|
Degree of protection |
UL type 1 conforming to UL 508C |
|
Type of cooling |
Forced convection |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Motor power kW |
18.5 kW (normal duty) |
|
Motor power hp |
25 hp normal duty |
|
Speed drive output frequency |
0.1…500 Hz |
|
Nominal switching frequency |
4 kHz |
|
Safety function |
STO (safe torque off) SIL 3 |
|
Discrete input logic |
16 preset speeds |
|
Data format |
8 bits, configurable odd, even or no parity |
|
Type of polarization |
No impedance |
|
Exchange mode |
Half duplex, full duplex, autonegotiation |
|
Ethernet/Modbus TCP |
Number of addresses 1…247 for Modbus serial |
|
Method of access |
Slave Modbus TCP |
|
Discrete input number |
8 |
|
Discrete input type |
DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
|
Refresh time |
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
|
Minimum switching current |
Relay output R1, R2, R3: 5 mA at 24 V DC |
|
Isolation |
Between power and control terminals |
|
Maximum output frequency |
500 kHz |
|
Maximum input current |
33.4 A |
|
Insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth |
|
Noise level |
59.5 dB conforming to 86/188/EEC |
|
Power dissipation in W |
Natural convection: 67 W at 380 V, switching frequency 4 kHz |
|
Volume of cooling air |
215 m3/h |
|
Operating position |
Vertical +/- 10 degree |
|
Maximum THDI |
<48 % from 80...100 % of load conforming to IEC 61000-3-12 |
|
Shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27 |
|
Relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3 |
|
Ambient air temperature for operation |
-15…50 °C (without derating) |
|
Ambient air temperature for storage |
-40…70 °C |
|
Operating altitude |
<= 1000 m without derating |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Noise level |
59.5 dB |
|
Pollution degree |
2 |
Information About ATV630D18N4
The ATV630D18N4 is a variable speed drive belonging to the Altivar Process ATV600 series. Designed for feeding 3-phase synchronous and asynchronous power motors, it incorporates 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports as standard features. Operating within a rated supply voltage range of 380V to 480V AC, this drive offers innovative energy-saving capabilities, providing up to 30% energy savings during standby through its 'Stop and Go' operation without additional costs.
With a power rating of 18.5kW / 25hp, it is suitable for applications requiring slight overload (up to 120%), while for applications necessitating significant overload (up to 150%), it supports motors with a power rating of up to 15kW / 20hp. Weighing 14.2kg and measuring 211mm in width, 546mm in height, and 232mm in depth, this drive is tailored for fluid management processing and energy conservation applications, offering versatility across industries such as water and wastewater treatment, mining, minerals and metals processing, oil and gas, and food and beverage production.
Accessories such as fan kits and graphic display terminals, along with options like I/O expansion modules, communication modules, and EMC input filters, are available for integration with Altivar Process ATV600 drives, contingent upon the drive rating. Mounting is designed for vertical placement on a wall within a range of +/- 10°.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
