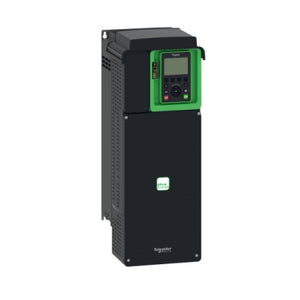

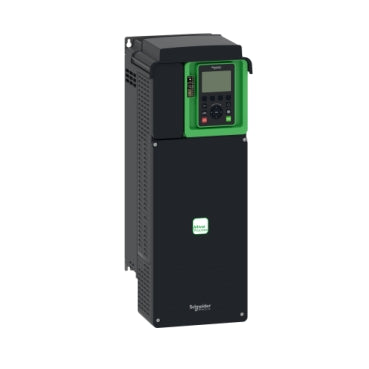

ATV630D22N4 | Schneider Electric Variable Speed Drive, Altivar Process ATV600, ATV630, 22kW, 30hp, 380 to 480V, IP21, UL Type 1
- Regular price
- $1,349.00
- Sale price
- $1,349.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV630D22N4
Description
The Schneider Electric ATV630D22N4 is a variable speed drive engineered for 22 kW (30 HP) motor control in demanding process and utility applications. Operating on 380–480 V three-phase power, it provides efficient, stable performance for asynchronous and synchronous motors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motor Drives |
| Part Number | ATV630D22N4 |
| Subcategory | Altivar Process ATV600 Drive |
| Range of Product | Altivar Process ATV600 |
| Application | Process and Utilities |
| Type | Variable Speed Drive (Standard Version) |
| Rated Power | 22 kW / 30 HP |
| Supply Voltage | 380–480 V AC (-15% to +10%) |
| Supply Frequency | 50–60 Hz (±5%) |
| Nominal Output Current | 46.3 A |
| Phase | 3-Phase |
| Motor Compatibility | Asynchronous & Synchronous motors |
| Communication Protocols | Modbus TCP, Modbus Serial, Ethernet |
| EMC Filter | Integrated (IEC 61800-3 C2/C3) |
| Enclosure Type | IP21 / UL Type 1 |
| Cooling Method | Forced Convection |
| Mounting | Wall Mount |
| Dimensions | 21.5" H × 8.31" W × 9.13" D |
| Net Weight | 31.5 lb (14.3 kg) |
Information About ATV630D22N4
The ATV630D22N4 belongs to Schneider Electric’s Altivar Process ATV600 series, designed to deliver high-performance motor control for industrial process and utility environments. It operates within a wide 380–480 V supply range and supports both asynchronous and synchronous motor technologies, providing excellent versatility across pump, fan, and general automation systems. Integrated communication options—including Modbus TCP, Modbus serial, and Ethernet—ensure seamless connectivity with modern control architectures. Its built-in EMC filtering meets IEC 61800-3 C2/C3 standards, helping maintain compliance in electrically noisy installations. Designed as a wall-mounted IP21/Type 1 unit, the ATV630D22N4 offers efficient thermal management, reliable operation, and robust diagnostics to support continuous industrial performance.
Key Features:
- High-performance motor control: Supports 22 kW (30 HP) operation for demanding automation loads.
- Wide voltage tolerance: Operates from 380–480 V AC with robust tolerance for fluctuating supply conditions.
- Flexible motor compatibility: Works with both asynchronous and synchronous motors across multiple applications.
- Integrated communication: Built-in Modbus TCP, Modbus serial, and Ethernet enable smooth PLC and SCADA integration.
- Advanced EMC compliance: Features internal C2/C3 filters for installations requiring strict electromagnetic performance.
- Industrial-grade protection: Rated IP21 / UL Type 1 for safe use in enclosed industrial environments.
- Efficient cooling architecture: Forced convection design ensures stable operation under continuous load.
- Compact form factor: Slim wall-mount housing streamlines installation in control panels and equipment rooms.
The ATV630D22N4 delivers the robust motor control, system connectivity, and operational stability required for modern process-driven industrial environments.
Description
The Schneider Electric ATV630D22N4 is a variable speed drive engineered for 22 kW (30 HP) motor control in demanding process and utility applications. Operating on 380–480 V three-phase power, it provides efficient, stable performance for asynchronous and synchronous motors.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motor Drives |
| Part Number | ATV630D22N4 |
| Subcategory | Altivar Process ATV600 Drive |
| Range of Product | Altivar Process ATV600 |
| Application | Process and Utilities |
| Type | Variable Speed Drive (Standard Version) |
| Rated Power | 22 kW / 30 HP |
| Supply Voltage | 380–480 V AC (-15% to +10%) |
| Supply Frequency | 50–60 Hz (±5%) |
| Nominal Output Current | 46.3 A |
| Phase | 3-Phase |
| Motor Compatibility | Asynchronous & Synchronous motors |
| Communication Protocols | Modbus TCP, Modbus Serial, Ethernet |
| EMC Filter | Integrated (IEC 61800-3 C2/C3) |
| Enclosure Type | IP21 / UL Type 1 |
| Cooling Method | Forced Convection |
| Mounting | Wall Mount |
| Dimensions | 21.5" H × 8.31" W × 9.13" D |
| Net Weight | 31.5 lb (14.3 kg) |
Information About ATV630D22N4
The ATV630D22N4 belongs to Schneider Electric’s Altivar Process ATV600 series, designed to deliver high-performance motor control for industrial process and utility environments. It operates within a wide 380–480 V supply range and supports both asynchronous and synchronous motor technologies, providing excellent versatility across pump, fan, and general automation systems. Integrated communication options—including Modbus TCP, Modbus serial, and Ethernet—ensure seamless connectivity with modern control architectures. Its built-in EMC filtering meets IEC 61800-3 C2/C3 standards, helping maintain compliance in electrically noisy installations. Designed as a wall-mounted IP21/Type 1 unit, the ATV630D22N4 offers efficient thermal management, reliable operation, and robust diagnostics to support continuous industrial performance.
Key Features:
- High-performance motor control: Supports 22 kW (30 HP) operation for demanding automation loads.
- Wide voltage tolerance: Operates from 380–480 V AC with robust tolerance for fluctuating supply conditions.
- Flexible motor compatibility: Works with both asynchronous and synchronous motors across multiple applications.
- Integrated communication: Built-in Modbus TCP, Modbus serial, and Ethernet enable smooth PLC and SCADA integration.
- Advanced EMC compliance: Features internal C2/C3 filters for installations requiring strict electromagnetic performance.
- Industrial-grade protection: Rated IP21 / UL Type 1 for safe use in enclosed industrial environments.
- Efficient cooling architecture: Forced convection design ensures stable operation under continuous load.
- Compact form factor: Slim wall-mount housing streamlines installation in control panels and equipment rooms.
The ATV630D22N4 delivers the robust motor control, system connectivity, and operational stability required for modern process-driven industrial environments.
