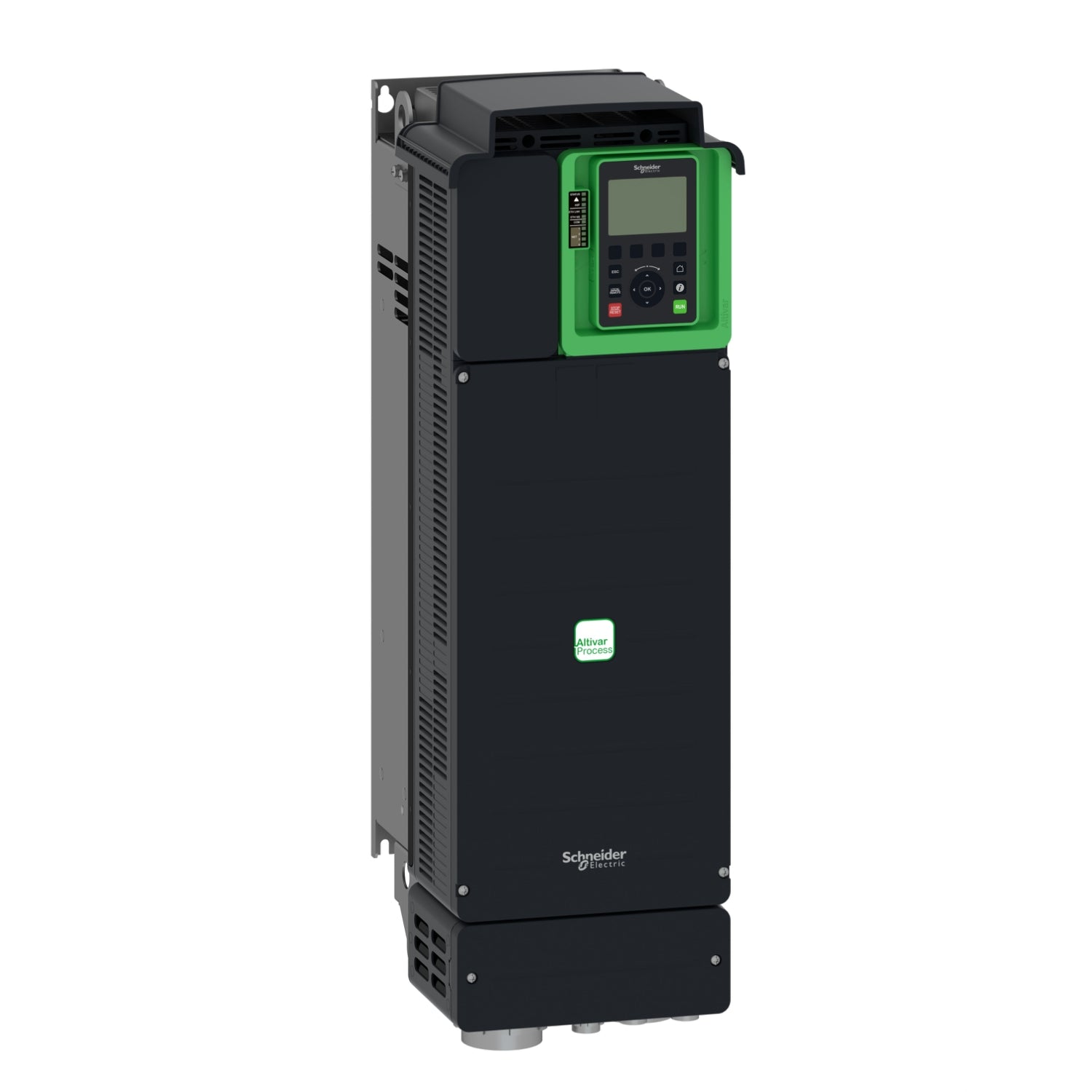

ATV630D30N4 | Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 30kW, 40hp, 380 to 480V, IP21, UL type 1
- Regular price
- $1,915.00
- Sale price
- $1,915.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: ATV630D30N4
Description
The Schneider Electric ATV630D30N4 AC Drive stands at the forefront of innovation in industrial automation, offering enhanced efficiency and precise control. Engineered by Schneider Electric, a global leader in energy management and automation solutions, this AC drive is designed to optimize the performance of asynchronous and synchronous motors across a diverse range of applications. With its robust features and advanced technology, the ATV630D30N4 drives productivity and reliability in industrial settings.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV630D30N4 |
| Category | Drives |
| Subcategory | Drive |
| Type | AC Drives |
| Product destination | Asynchronous motors Synchronous motors |
| IP degree of protection | IP21IEC 61800-5-1 IP21IEC 60529 |
| Degree of protection | UL type 1 UL 508C |
| Type of cooling | Forced convection |
| Supply frequency | 50...60 Hz - 5...5 % |
| Phase | 3 phase |
| Apparent power | 38.2 kVA 480 V normal duty) 29.8 kVA 480 V heavy duty) |
| Continuous output current | 61.5 A 4 kHz normal duty |
| Output frequency | 0.0001…0.5 kHz |
Information About ATV630D30N4
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 30kW / 40hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 22kW / 30hp for applications requiring significant overload (up to 150%). It weighs 28kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
The ATV630D30N4 AC Drive is tailored for use with both asynchronous and synchronous motors, offering versatility and compatibility across various motor types. It boasts a high degree of protection, with an IP21 rating according to IEC 61800-5-1 and IEC 60529 standards, ensuring resilience against dust and moisture ingress. Additionally, the drive is certified as UL Type 1 and UL 508C, further bolstering its protection capabilities.
Type of Cooling and Supply Frequency
Equipped with forced convection cooling, the ATV630D30N4 AC Drive ensures efficient heat dissipation, enabling continuous operation even in demanding environments. Its supply frequency range of 50 to 60 Hz, with a tolerance of ±5%, accommodates fluctuations in power supply, providing stable and reliable performance. This versatility makes the drive suitable for use in a wide range of industrial applications.
Phase and Power Specifications
Operating on a three-phase power supply, the ATV630D30N4 AC Drive delivers exceptional power and performance. With an apparent power rating of 38.2 kVA at 480 V under normal duty conditions and 29.8 kVA at 480 V under heavy-duty conditions, the drive ensures reliable operation even in high-demand scenarios. Its continuous output current of 61.5 A at 4 kHz normal duty enables precise control and efficient motor operation.
Output Frequency and Control
The ATV630D30N4 AC Drive offers a wide output frequency range, spanning from 0.0001 to 0.5 kHz. This flexibility enables fine-tuned control over motor speed and torque, catering to diverse industrial applications with varying requirements. Whether it's maintaining precise speeds in manufacturing processes or adjusting motor output in response to changing operational conditions, the ATV630D30N4 delivers optimal performance and efficiency.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
