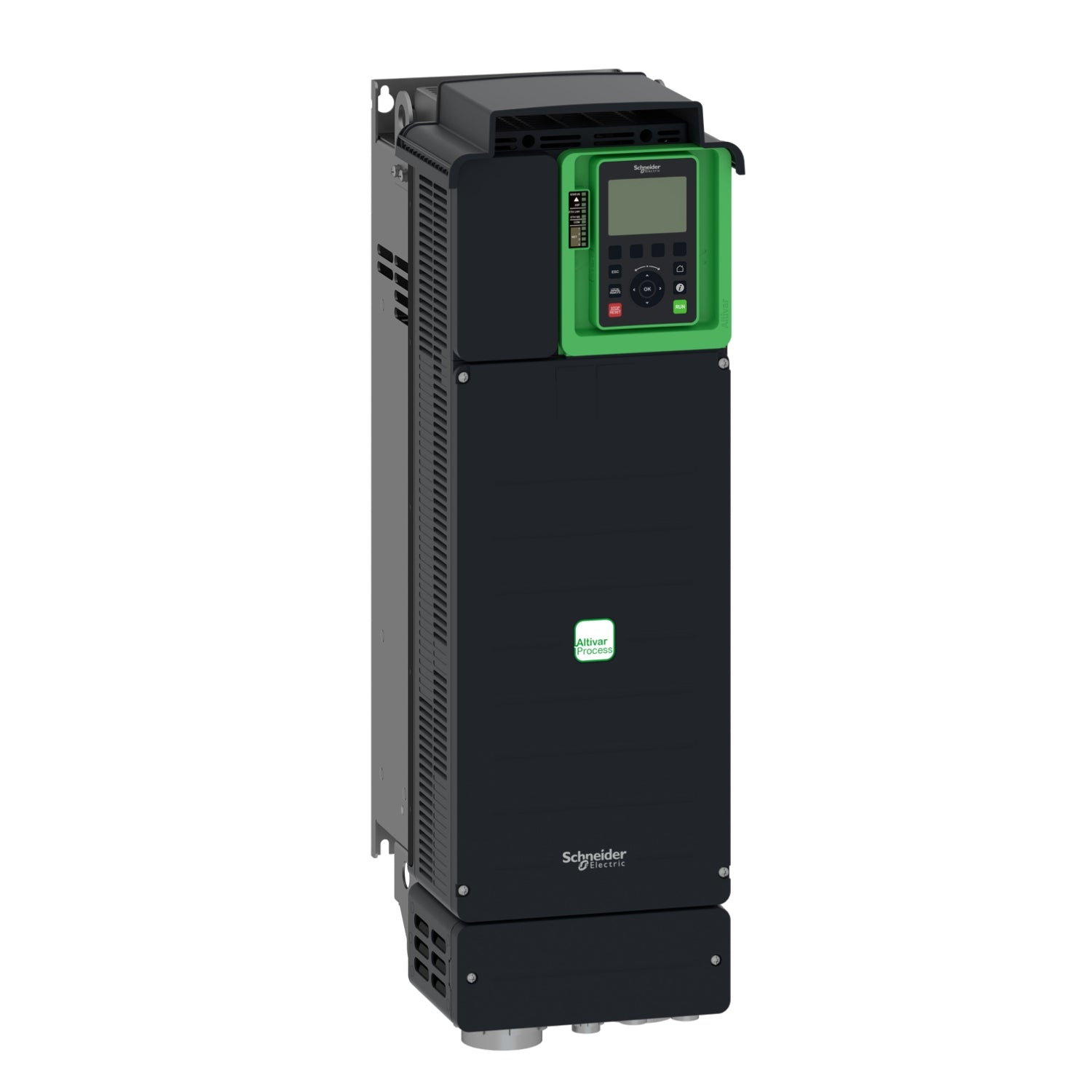

Product Description P/N: ATV630D45N4

Description / Specifications

Description



The ATV630D45N4 is a variable speed drive from the Altivar Process ATV600 series, designed to regulate the speed of 3-phase synchronous and asynchronous power motors. It comes equipped with 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports, providing extensive communication capabilities.

Operating within a rated supply voltage range of 380V to 480V AC, this drive offers energy-saving features, including the innovative "Stop and Go" operation, resulting in up to 30% energy savings during standby without additional costs.

Suitable for motors with power ratings up to 45kW / 60hp for applications requiring slight overload (up to 120%), and up to 37kW / 50hp for applications demanding significant overload (up to 150%), the drive ensures efficient motor operation.



Technical Specifications



Part #

ATV630D45N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

KW

45KW, 60HP

Product specific application

Process and utilities

Device short name

ATV630

Variant

Standard version

Product destination

Asynchronous motors Synchronous motors

[Us] rated supply voltage

380...480 V

Degree of protection

UL type 1 conforming to UL 508C

Type of cooling

Forced convection

Supply frequency

50...60 Hz - 5...5 %

Motor power kW

45 kW (normal duty)

Prospective line Isc

50 kA

Speed drive output frequency

0.1…500 Hz

Nominal switching frequency

4 kHz

Switching frequency

2...12 kHz adjustable 4...12 kHz with derating factor

Safety function

STO (safe torque off) SIL 3

Discrete input logic

16 preset speeds

Output voltage

<= power supply voltage

Acceleration and deceleration ramps

Linear adjustable separately from 0.01...9999 s

Physical interface

Ethernet 2-wire RS 485

Braking to standstill

By DC injection

Transmission rate

10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Frequency resolution

Display unit: 0.1 Hz Analog input: 0.012/50 Hz

Transmission frame

RTU

Data format

8 bits, configurable odd, even or no parity

Type of polarization

No impedance

Exchange mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Number of addresses

1…247 for Modbus serial

Method of access

Slave Modbus TCP

Discrete input number

8

Discrete input type

DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

Refresh time

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Minimum switching current

Relay output R1, R2, R3: 5 mA at 24 V DC

Isolation

Between power and control terminals

Maximum output frequency

500 kHz

Maximum input current

79.8 A

Insulation resistance

> 1 MOhm 500 V DC for 1 minute to earth

Noise level

63.5 dB conforming to 86/188/EEC

Volume of cooling air

240 m3/h

Operating position

Vertical +/- 10 degree

Maximum THDI

<48 % from 80...100 % of load conforming to IEC 61000-3-12

Pollution degree

2 conforming to EN/IEC 61800-5-1

Vibration resistance

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3

Ambient air temperature for operation

-15…50 °C (without derating) 50…60 °C (with derating factor)

Ambient air temperature for storage

-40…70 °C

Operating altitude

<= 1000 m without derating

Overvoltage category

III

Regulation loop

Adjustable PID regulator

Noise level

63.5 dB

Pollution degree

2


Information About ATV630D45N4


The ATV630D45N4 is a variable speed drive belonging to the Altivar Process ATV600 series, designed to supply power to 3-phase synchronous and asynchronous motors. Equipped with 3 standard RJ45 communication ports, 1 Ethernet port, and 2 serial ports, it operates within a rated supply voltage range of 380V to 480V AC.

Featuring the innovative "Stop and Go" operation, this drive offers up to 30% energy savings during standby without additional costs. It is suitable for motors with power ratings up to 45kW / 60hp for applications requiring slight overload (up to 120%) and up to 37kW / 50hp for applications demanding significant overload (up to 150%).

Weighing 28.7kg and measuring 226mm in width, 673mm in height, and 271mm in depth, the ATV630D45N4 is optimized for fluid management processing and energy-saving applications across various industries, including water and wastewater, mining, minerals and metals, oil and gas, and food and beverage.

Accessories such as fan kits and graphic display terminals, along with options like I/O expansion modules, communication modules, and EMC input filters, are available for Altivar Process ATV600 drives, based on the drive rating.

Designed for vertical mounting (+/- 10 °) on a wall, this drive represents a new concept tailored to meet the major needs of process and utilities industries. It ensures equipment efficiency, total cost of ownership, and overall performance optimization by supporting energy management and asset management.
