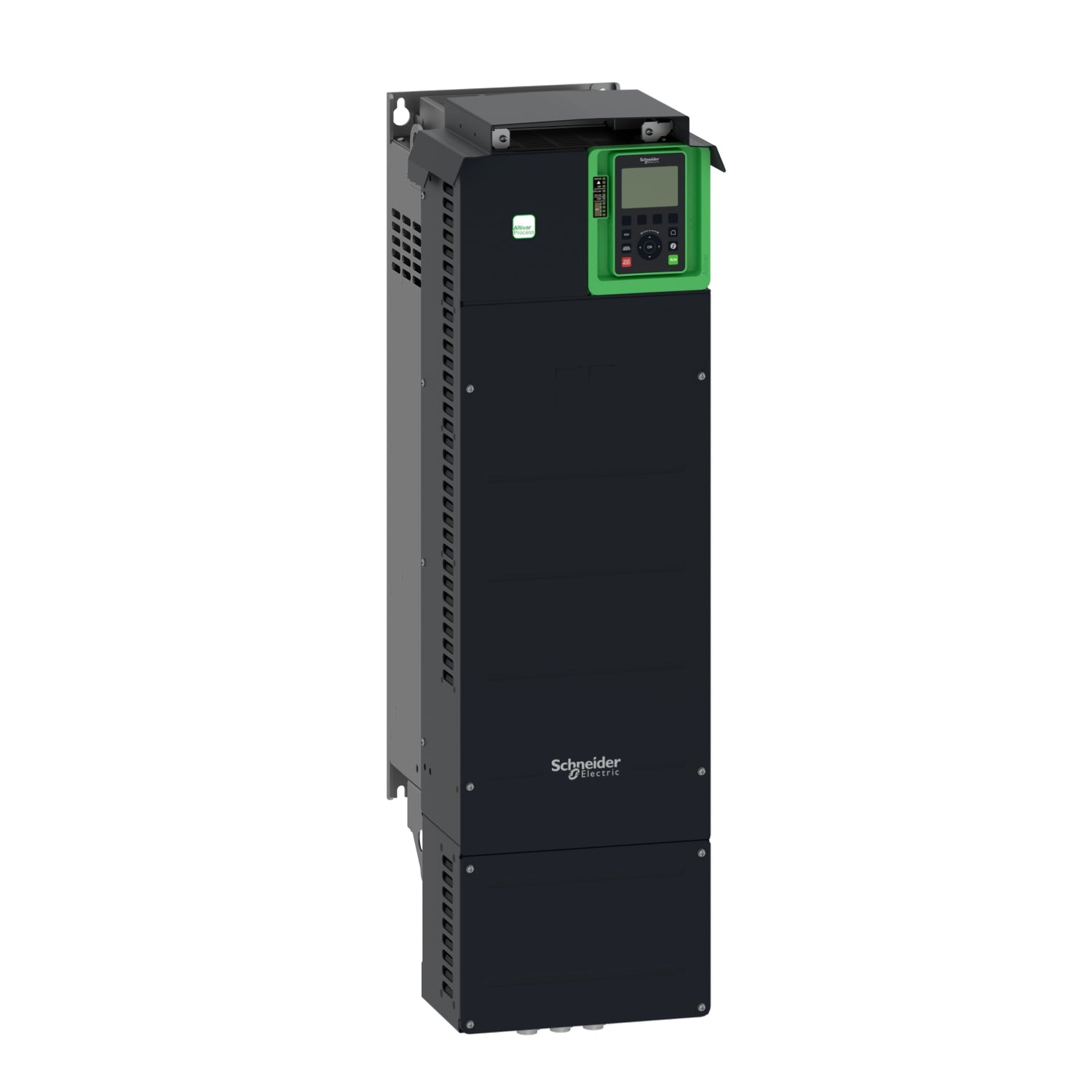

Product Description P/N: ATV630D75N4
Description
The ATV630D75N4 is a variable speed drive from the Altivar Process ATV600 series, designed for driving 3-phase synchronous and asynchronous power motors. It is equipped with 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports as standard communication interfaces.
Operating at a rated supply voltage ranging from 380V to 480V AC, this drive offers energy-saving capabilities, providing up to 30% energy savings during standby through its innovative "Stop and Go" operation without additional costs.
Capable of handling motors with power ratings up to 75kW / 100hp for applications requiring slight overload (up to 120%) and up to 55kW / 75hp for applications requiring significant overload (up to 150%), the ATV630D75N4 is suitable for various industrial applications.
Technical Specifications
|
Part # |
ATV630D75N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of produc |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Process and utilities |
|
Device short name |
ATV630 |
|
Variant |
Standard version |
|
Product destination |
Asynchronous motors Synchronous motors |
|
EMC filter |
Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
|
IP degree of protection |
IP21 conforming to IEC 61800-5-1 IP21 conforming to IEC 60529 |
|
[Us] rated supply voltage |
380...480 V |
|
Degree of protection |
UL type 1 conforming to UL 508C |
|
Type of cooling |
Forced convection |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Motor power kW |
75 kW (normal duty) |
|
Prospective line Isc |
50 kA |
|
Speed drive output frequency |
0.1…500 Hz |
|
Nominal switching frequency |
2.5 kHz |
|
Switching frequency |
2.5...8 kHz with derating factor |
|
Safety function |
STO (safe torque off) SIL 3 |
|
Discrete input logic |
16 preset speeds |
|
Data format |
8 bits, configurable odd, even or no parity |
|
Type of polarization |
No impedance |
|
Exchange mode |
Half duplex, full duplex, autonegotiation |
|
Number of addresses |
1…247 for Modbus serial |
|
Method of access |
Slave Modbus TCP |
|
Isolation |
Between power and control terminals |
|
Maximum output frequency |
500 kHz |
|
Maximum input current |
131.3 A |
|
Quantity per set |
1 |
|
Enclosure mounting |
Wall mounted |
|
Insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth |
|
Noise level |
62.4 dB conforming to 86/188/EEC |
|
Power dissipation in W |
Natural convection: 174 W at 380 V, switching frequency 2.5 kHz Forced convection: 1369 W at 380 V |
|
Volume of cooling air |
295 m3/h |
|
Operating position |
Vertical +/- 10 degree |
|
Maximum THDI |
<48 % from 80...100 % of load conforming to IEC 61000-3-12 |
|
Pollution degree |
2 conforming to EN/IEC 61800-5-1 |
|
Vibration resistance |
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27 |
|
Relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3 |
|
Ambient air temperature for operation |
-15…50 °C (without derating) 50…60 °C (with derating factor) |
|
Ambient air temperature for storage |
-40…70 °C |
|
Operating altitude |
<= 1000 m without derating 1000...4800 m with current derating 1 % per 100 m |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
Information About ATV630D75N4
The ATV630D75N4 is a variable speed drive belonging to the Altivar Process ATV600 series, specifically the ATV630 model, designed for industrial applications. It operates with a power range of 75 kW or 100 hp, compatible with a supply voltage range of 380V to 480V AC. The drive features an IP21 enclosure rating and is classified as UL type 1, ensuring operational safety.
Equipped with advanced communication capabilities, the ATV630D75N4 includes three RJ45 communication ports, along with one Ethernet port and two serial ports, facilitating integration with various industrial networks and systems. This drive offers substantial energy savings, particularly during standby mode, thanks to its innovative "Stop and Go" operation mechanism, eliminating the need for additional energy costs.
Suitable for both synchronous and asynchronous three-phase motors, the ATV630D75N4 is capable of handling applications with varying loads. It can support motors with power ratings up to 75 kW or 100 hp for scenarios requiring slight overload (up to 120%), and up to 55 kW or 75 hp for applications demanding significant overload (up to 150%).
With a weight of 58 kg and dimensions of 290mm in width, 922mm in height, and 323mm in depth, this drive is optimized for fluid management processes and energy-saving initiatives across industries such as water and wastewater treatment, mining, minerals and metals processing, oil and gas production, and food and beverage manufacturing.
For enhanced functionality and customization, the ATV630D75N4 supports various accessories and options, including fan kits, graphic display terminals, I/O expansion modules, communication modules, and EMC input filters, depending on the specific requirements and drive rating.
