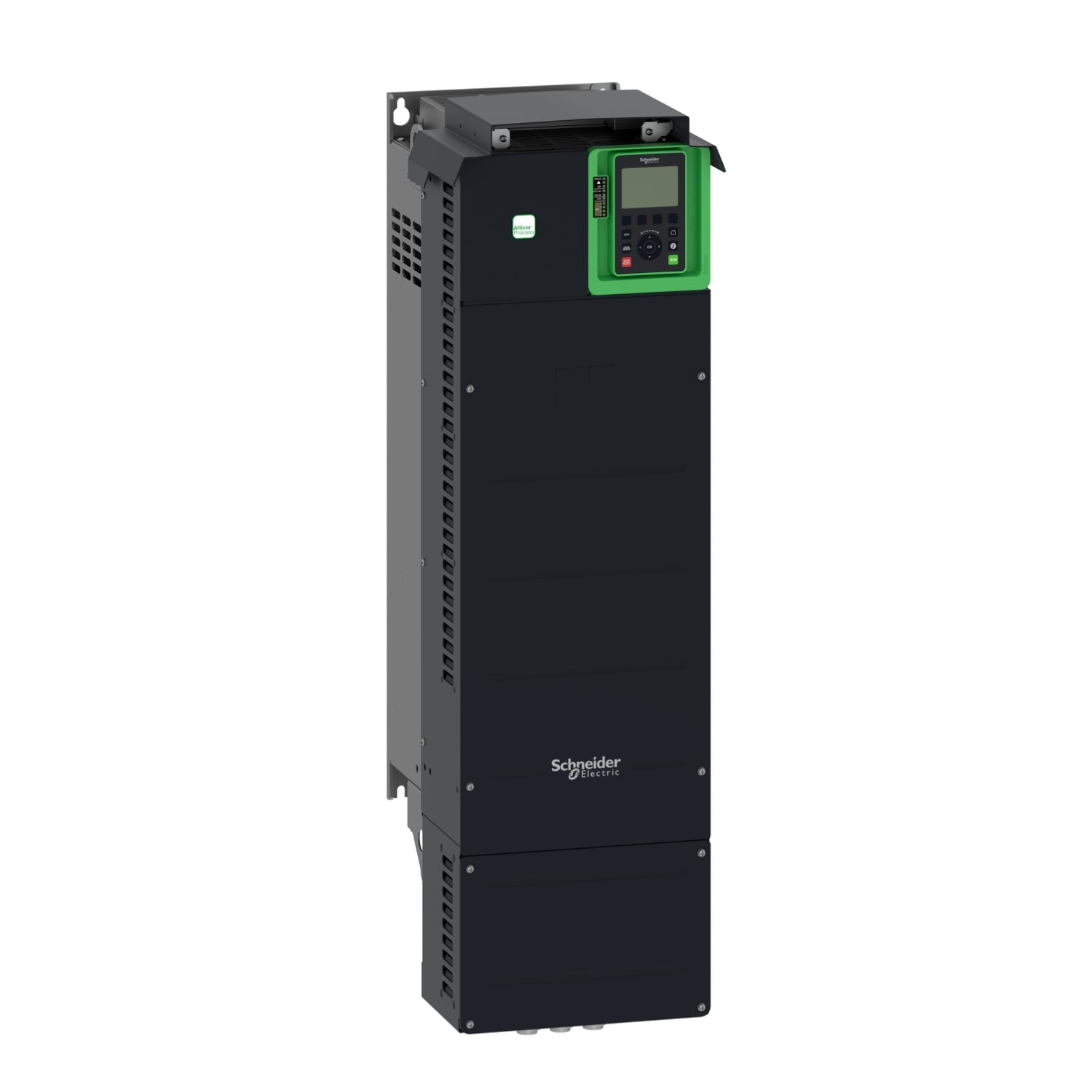

ATV630D90N4 | Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 90kW, 125hp, 380 to 480V, IP21, UL type 1
- Regular price
- $8,989.00
- Sale price
- $8,989.00
- Regular price
-
Do you need more quantity?
Product Description P/N: ATV630D90N4
Description
The ATV630D90N4 is a powerful and versatile variable speed drive manufactured by Schneider Electric as part of their Altivar Process ATV600 product range. This particular drive is designed for industrial applications involving processes and utilities, making it suitable for a wide range of tasks.
Technical Specifications
Brand | Schneider Electric |
Part Number | ATV630D90N4 |
Category | Drives |
Subcategory | Drive |
Range | ATV600 |
Component | Variable speed drive |
Application | Process / Utilities |
Compatible Motor Type | Synchronous / Asynchronous Motors |
Power Rating | 90kW |
No. of Phases | Three Phase |
Output Current Max | 173A |
Supply Frequency | 50Hz / 60Hz |
IP Rating | IP21 |
Supply Voltage Min | 380VAC |
Supply Voltage Max | 480VAC |
Product Range | Altivar Process ATV600 |
Information About ATV630D90N4
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 90kW / 125hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 75kW / 100hp for applications requiring significant overload (up to 150%). It weighs 58.5kg and its dimensions are, 290mm wide, 922mm high, 323mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Features
The ATV630D90N4 is a standard version of the drive, capable of controlling both synchronous and asynchronous motors. It comes equipped with an integrated EMC filter, conforming to EN/IEC 61800-3 category C3 standards, providing reliable operation while minimizing electromagnetic interference. The drive has an IP21 degree of protection, making it suitable for indoor installations where protection against solid objects larger than 12.5 mm and no water protection is needed. Additionally, it complies with UL type 1 standards, ensuring safe usage in the US and other countries where this certification is required.
Capabilities
The drive's power capabilities are impressive, supporting motor power of up to 90 kW (125 HP) in normal duty and 75 kW (100 HP) in heavy duty mode. The line current ratings are 156.2 A at 380 V and 135.8 A at 480 V for normal duty, 134.3 A at 380 V, and 118.1 A at 480 V for heavy duty. With a prospective line Isc of 50 KA and apparent power ratings up to 112.9 KVA, this drive is well-suited for demanding industrial environments.
Operation
The ATV630D90N4 offers precise motor control profiles, including constant torque and variable torque for asynchronous motor control, as well as support for permanent magnet and synchronous reluctance motor control. Its output frequency ranges from 0.0001 to 0.5 KHz, while the speed drive output frequency spans from 0.1 to 599 Hz, providing flexibility for various applications. The nominal switching frequency is 2.5 kHz, adjustable up to 8 kHz with derating.
Safety
Safety features are a critical aspect of any industrial drive, and the ATV630D90N4 does not disappoint. It comes with a Safe Torque Off (STO) function, achieving Safety Integrity Level 3 (SIL 3) for enhanced safety. The drive also offers comprehensive protection for both the motor and itself, including thermal protection, motor phase break protection, and protection against overvoltages, overcurrent, and more.
Communication
The drive supports various communication protocols through optional communication modules that can be installed in Slot A. Options include Profibus DP V1, Profinet, DeviceNet, Modbus TCP/EtherNet/IP, CANopen, and more. This allows for easy integration with different automation systems and networks.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
Description
The ATV630D90N4 is a powerful and versatile variable speed drive manufactured by Schneider Electric as part of their Altivar Process ATV600 product range. This particular drive is designed for industrial applications involving processes and utilities, making it suitable for a wide range of tasks.
Technical Specifications
Brand | Schneider Electric |
Part Number | ATV630D90N4 |
Category | Drives |
Subcategory | Drive |
Range | ATV600 |
Component | Variable speed drive |
Application | Process / Utilities |
Compatible Motor Type | Synchronous / Asynchronous Motors |
Power Rating | 90kW |
No. of Phases | Three Phase |
Output Current Max | 173A |
Supply Frequency | 50Hz / 60Hz |
IP Rating | IP21 |
Supply Voltage Min | 380VAC |
Supply Voltage Max | 480VAC |
Product Range | Altivar Process ATV600 |
Information About ATV630D90N4
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 90kW / 125hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 75kW / 100hp for applications requiring significant overload (up to 150%). It weighs 58.5kg and its dimensions are, 290mm wide, 922mm high, 323mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Features
The ATV630D90N4 is a standard version of the drive, capable of controlling both synchronous and asynchronous motors. It comes equipped with an integrated EMC filter, conforming to EN/IEC 61800-3 category C3 standards, providing reliable operation while minimizing electromagnetic interference. The drive has an IP21 degree of protection, making it suitable for indoor installations where protection against solid objects larger than 12.5 mm and no water protection is needed. Additionally, it complies with UL type 1 standards, ensuring safe usage in the US and other countries where this certification is required.
Capabilities
The drive's power capabilities are impressive, supporting motor power of up to 90 kW (125 HP) in normal duty and 75 kW (100 HP) in heavy duty mode. The line current ratings are 156.2 A at 380 V and 135.8 A at 480 V for normal duty, 134.3 A at 380 V, and 118.1 A at 480 V for heavy duty. With a prospective line Isc of 50 KA and apparent power ratings up to 112.9 KVA, this drive is well-suited for demanding industrial environments.
Operation
The ATV630D90N4 offers precise motor control profiles, including constant torque and variable torque for asynchronous motor control, as well as support for permanent magnet and synchronous reluctance motor control. Its output frequency ranges from 0.0001 to 0.5 KHz, while the speed drive output frequency spans from 0.1 to 599 Hz, providing flexibility for various applications. The nominal switching frequency is 2.5 kHz, adjustable up to 8 kHz with derating.
Safety
Safety features are a critical aspect of any industrial drive, and the ATV630D90N4 does not disappoint. It comes with a Safe Torque Off (STO) function, achieving Safety Integrity Level 3 (SIL 3) for enhanced safety. The drive also offers comprehensive protection for both the motor and itself, including thermal protection, motor phase break protection, and protection against overvoltages, overcurrent, and more.
Communication
The drive supports various communication protocols through optional communication modules that can be installed in Slot A. Options include Profibus DP V1, Profinet, DeviceNet, Modbus TCP/EtherNet/IP, CANopen, and more. This allows for easy integration with different automation systems and networks.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
