ATV630U22N4 | Schneider Electric | Variable speed drive
- Regular price
- $694.00
- Sale price
- $694.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV630U22N4
Description

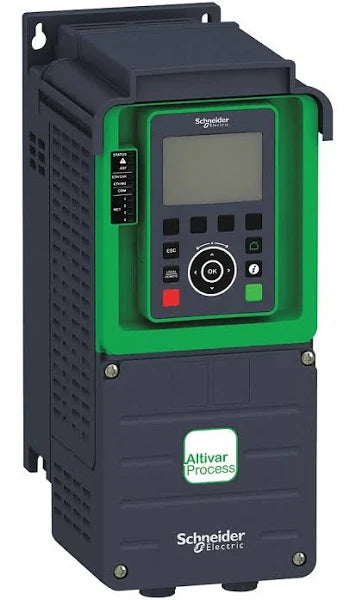

The Altivar Process ATV600 variable speed drive is designed to power 3-phase synchronous and asynchronous motors. Standard features include 3 RJ45 communication ports, 1 Ethernet port, and 2 serial ports. Operating at a rated supply voltage ranging from 380V to 480V AC, this drive offers significant energy savings of up to 30% during standby with its innovative "Stop and Go" operation, without additional costs.
Suitable for motors with power ratings up to 2.2kW / 3hp for applications requiring slight overload (up to 120%), and up to 1.5kW / 2hp for applications requiring significant overload (up to 150%), this drive weighs 4.5kg and measures 144mm wide, 350mm high, and 203mm deep.
Technical Specifications
Specifications
|
Part # |
ATV630U22N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
Type |
Variable speed drive |
|
Application |
Process and utilities |
|
Device Short Name |
ATV630 |
|
Variant |
Standard version |
|
Destination |
Asynchronous motors, Synchronous motors |
|
Supply Voltage |
380-480 V |
|
Degree of Protection |
UL type 1 |
|
Cooling |
Forced convection |
|
Supply Frequency |
50-60 Hz |
|
Motor Power (kW) |
2.2 kW (normal duty), 1.5 kW (heavy duty) |
|
Motor Power (hp) |
3 hp (normal duty), 2 hp (heavy duty) |
|
Prospective Line Isc |
50 kA |
|
Apparent Power |
3.2 kVA (normal duty), 2.4 kVA (heavy duty) |
|
Continuous Output Current |
5.6 A at 4 kHz (normal duty), 4 A at 4 kHz (heavy duty) |
|
Synchronous Motor Control |
Permanent magnet motor, Synchronous reluctance motor |
|
Output Frequency |
0.1-500 Hz |
|
Switching Frequency |
4 kHz |
|
Safety Function |
STO (safe torque off) SIL 3 |
|
Discrete Input Logic |
16 preset speeds |
|
Mounting Mode |
Wall mount |
|
Maximum Transient Current |
6 A during 60 s (heavy duty), 6.2 A during 60 s (normal duty) |
|
Number of Phases |
3 phases |
|
Discrete Output Number |
0 |
|
Data Format |
8 bits, configurable odd, even or no parity |
|
Ethernet/Modbus TCP |
Half duplex, full duplex, autonegotiation |
|
Modbus TCP Max Output Freq |
500 kHz |
|
Maximum Input Current |
4.3 A |
|
Insulation Resistance |
> 1 MOhm 500 V DC for 1 minute to earth |
|
Noise Level |
54.5 dB |
|
Power Dissipation |
Natural convection: 30 W, Forced convection: 60 W |
|
Cooling Air Volume |
38 m3/h |
|
Operating Position |
Vertical +/- 10° |
|
Maximum THDI |
<48 % full load conforming to IEC 61000-3-12 |
|
Pollution Degree |
2 conforming to EN/IEC 61800-5-1 |
|
Vibration Resistance |
1.5 mm peak to peak (f= 2-13 Hz), 1 gn (f= 13-200 Hz) |
|
Shock Resistance |
15 gn for 11 ms |
|
Relative Humidity |
5-95 % without condensation |
|
Ambient Air Temperature (Operation) |
-15-50 °C (without derating), 50-60 °C (with derating factor) |
|
Ambient Air Temperature (Storage) |
-40-70 °C |
|
Operating Altitude |
<= 1000 m without derating, 1000-4800 m with current derating 1 % per 100 m |
|
Overvoltage Category |
III |
|
Regulation Loop |
Adjustable PID regulator |
Information About ATV630U22N4
The Altivar Process ATV600 and ATV630 variable speed drives are designed to power 3-phase synchronous and asynchronous motors. Standard features include 3 RJ45 communication ports, 1 Ethernet port, and 2 serial ports. These drives operate within a rated supply voltage range of 380V to 480V AC.
An innovative "Stop and Go" operation reduces energy consumption by up to 30% when the drive is on standby, without incurring additional costs. They are suitable for motors with power ratings up to 2.2 kW / 3 hp for applications with slight overload (up to 120%) and up to 1.5 kW / 2 hp for applications with significant overload (up to 150%).
Weighing 4.5 kg and measuring 144 mm wide, 350 mm high, and 203 mm deep, the drive is compact and adaptable to various industrial settings. Its primary focus lies in fluid management processing and energy conservation, making it highly versatile across industries such as water and wastewater, mining, minerals and metals, oil and gas, and food and beverage.
Altivar Process ATV600 drives offer a range of accessories and options, including fan kits, graphic display terminals, I/O expansion modules, communication modules, and EMC input filters. These additional features cater to different drive ratings and application requirements.
Designed for vertical wall mounting with a tolerance of +/- 10°, these drives optimize space utilization while meeting the demands of process and utility applications. They address critical factors such as equipment efficiency and total cost of ownership, enhancing energy management and asset performance across diverse industrial processes.
