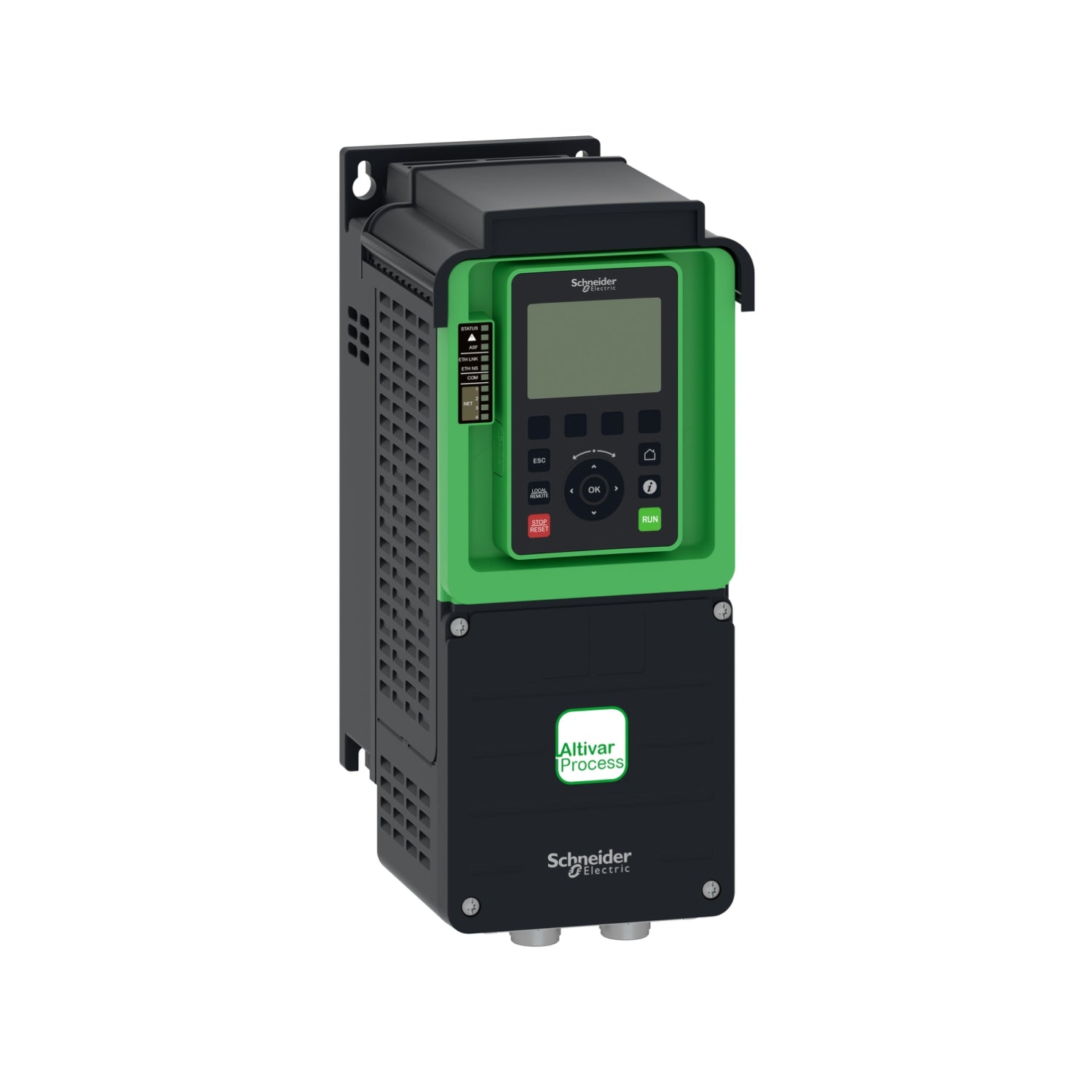

Part #: ATV630U40N4 Manufactured by: Schneider Electric
Regular price
$754.00
Sale price
$754.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ATV630U40N4 is a variable speed drive from the Altivar Process ATV600 series, specifically the ATV630 model. With a po...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: ATV630U40N4
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: ATV630U40N4

Description / Specifications

Description

The ATV630U40N4 is a variable speed drive from the Altivar Process ATV600 series by Schneider Electric. It is designed to control 3-phase synchronous and asynchronous power motors, offering a wide range of functionalities suitable for various industrial applications. The drive operates within a rated supply voltage range of 380V to 480V AC, making it compatible with standard industrial power systems.

Featuring 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports, the ATV630U40N4 provides seamless connectivity and integration with other control systems. Its innovative "Stop and Go" operation mode enables up to 30% energy savings during standby without incurring additional costs.

With a power rating of 4kW (5hp), the drive can handle motors requiring slight overload conditions (up to 120%). For applications demanding significant overload capability (up to 150%), it is suitable for motors with a power rating of up to 3kW (4hp). The drive weighs 4.6kg and has compact dimensions of 144mm width, 350mm height, and 203mm depth.


Technical Specifications


Part #

ATV630U40N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

KW

4KW, 5HP

SUPPLY VOLTAGE

Three-phase supply voltage: 380-500 VAC, 50/60 Hz Range of products

Altivar Process ATV600

Variable speed drive

Product specific application

Process and utilities

Device short name

ATV630

Variant

Standard version

[Us] rated supply voltage

380...480 V

Degree of protection

UL type 1 conforming to UL 508C

Type of cooling

Forced convection

Supply frequency

50...60 Hz - 5...5 %

Prospective line Isc

50 kA

Speed drive output frequency

0.1…500 Hz

Nominal switching frequency

4 kHz

Switching frequency

2...12 kHz adjustable, 4...12 kHz with derating factor

Safety function

STO (safe torque off) SIL 3

Discrete input logic

16 preset speeds

Mounting mode

Wall mount

Maximum transient current

10.8 A during 60 s (heavy-duty), 10.2 A during 60 s (normal duty)

Network number of phases

3 phases

Discrete output number

0

Output voltage

<= power supply voltage

Data format

8 bits, configurable odd, even, or no parity

Type of polarization

No impedance

Exchange mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Number of addresses

1…247 for Modbus serial

Method of access

Slave Modbus TCP

Discrete input number

8

Discrete input type

DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

Refresh time

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Minimum switching current

Relay output R1, R2, R3: 5 mA at 24 V DC

Isolation

Between power and control terminals

Maximum output frequency

500 kHz

Maximum input current

7.6 A

Insulation resistance

> 1 MOhm 500 V DC for 1 minute to earth

Noise level

54.5 dB conforming to 86/188/EEC

Volume of cooling air

38 m3/h

Operating position

Vertical +/- 10 degree

Maximum THDI

<48 % full load conforming to IEC 61000-3-12

Pollution degree

2 conforming to EN/IEC 61800-5-1

Vibration resistance

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3

Ambient air temperature for storage

-40…70 °C

Operating altitude

<= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m

Overvoltage category

III

Regulation loop

Adjustable PID regulator


Information About ATV630U40N4


The ATV630U40N4 is a variable speed drive, part of the Altivar Process ATV600 series and ATV630 model, designed to operate within a range of industrial applications. It is rated at 4kW or 5hp and operates at a supply voltage of 380V to 480V AC. The drive is equipped with IP21 protection and is UL type 1 compliant.

Featuring 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports as standard, the ATV630U40N4 facilitates seamless connectivity and communication within industrial networks. Its innovative "Stop and Go" operation mode enables up to 30% energy savings when on standby, without incurring additional costs.

This drive is suitable for feeding both 3-phase synchronous and asynchronous power motors. It is capable of handling slight overload conditions of up to 120% for motors with power ratings up to 4kW / 5hp, and significant overload conditions of up to 150% for motors with power ratings up to 3kW / 4hp.

Weighing 4.6kg and measuring 144mm wide, 350mm high, and 203mm deep, the ATV630U40N4 is compact and versatile. It is specifically focused on fluid management processing and energy-saving applications, offering flexibility in various industries such as water and wastewater treatment, mining, minerals and metals processing, oil and gas, and food and beverage processing.

Accessories such as fan kits and graphic display terminals, as well as options including I/O expansion modules, communication modules, and EMC input filters, are available for the Altivar Process ATV600 series drives, depending on the specific drive rating.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The ATV630U40N4 is a variable speed drive from the Altivar Process ATV600 series by Schneider Electric. It is designed to control 3-phase synchronous and asynchronous power motors, offering a wide range of functionalities suitable for various industrial applications. The drive operates within a rated supply voltage range of 380V to 480V AC, making it compatible with standard industrial power systems.

Featuring 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports, the ATV630U40N4 provides seamless connectivity and integration with other control systems. Its innovative "Stop and Go" operation mode enables up to 30% energy savings during standby without incurring additional costs.

With a power rating of 4kW (5hp), the drive can handle motors requiring slight overload conditions (up to 120%). For applications demanding significant overload capability (up to 150%), it is suitable for motors with a power rating of up to 3kW (4hp). The drive weighs 4.6kg and has compact dimensions of 144mm width, 350mm height, and 203mm depth.


Technical Specifications


Part #

ATV630U40N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

KW

4KW, 5HP

SUPPLY VOLTAGE

Three-phase supply voltage: 380-500 VAC, 50/60 Hz Range of products

Altivar Process ATV600

Variable speed drive

Product specific application

Process and utilities

Device short name

ATV630

Variant

Standard version

[Us] rated supply voltage

380...480 V

Degree of protection

UL type 1 conforming to UL 508C

Type of cooling

Forced convection

Supply frequency

50...60 Hz - 5...5 %

Prospective line Isc

50 kA

Speed drive output frequency

0.1…500 Hz

Nominal switching frequency

4 kHz

Switching frequency

2...12 kHz adjustable, 4...12 kHz with derating factor

Safety function

STO (safe torque off) SIL 3

Discrete input logic

16 preset speeds

Mounting mode

Wall mount

Maximum transient current

10.8 A during 60 s (heavy-duty), 10.2 A during 60 s (normal duty)

Network number of phases

3 phases

Discrete output number

0

Output voltage

<= power supply voltage

Data format

8 bits, configurable odd, even, or no parity

Type of polarization

No impedance

Exchange mode

Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Number of addresses

1…247 for Modbus serial

Method of access

Slave Modbus TCP

Discrete input number

8

Discrete input type

DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

Refresh time

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Minimum switching current

Relay output R1, R2, R3: 5 mA at 24 V DC

Isolation

Between power and control terminals

Maximum output frequency

500 kHz

Maximum input current

7.6 A

Insulation resistance

> 1 MOhm 500 V DC for 1 minute to earth

Noise level

54.5 dB conforming to 86/188/EEC

Volume of cooling air

38 m3/h

Operating position

Vertical +/- 10 degree

Maximum THDI

<48 % full load conforming to IEC 61000-3-12

Pollution degree

2 conforming to EN/IEC 61800-5-1

Vibration resistance

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3

Ambient air temperature for storage

-40…70 °C

Operating altitude

<= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m

Overvoltage category

III

Regulation loop

Adjustable PID regulator


Information About ATV630U40N4


The ATV630U40N4 is a variable speed drive, part of the Altivar Process ATV600 series and ATV630 model, designed to operate within a range of industrial applications. It is rated at 4kW or 5hp and operates at a supply voltage of 380V to 480V AC. The drive is equipped with IP21 protection and is UL type 1 compliant.

Featuring 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports as standard, the ATV630U40N4 facilitates seamless connectivity and communication within industrial networks. Its innovative "Stop and Go" operation mode enables up to 30% energy savings when on standby, without incurring additional costs.

This drive is suitable for feeding both 3-phase synchronous and asynchronous power motors. It is capable of handling slight overload conditions of up to 120% for motors with power ratings up to 4kW / 5hp, and significant overload conditions of up to 150% for motors with power ratings up to 3kW / 4hp.

Weighing 4.6kg and measuring 144mm wide, 350mm high, and 203mm deep, the ATV630U40N4 is compact and versatile. It is specifically focused on fluid management processing and energy-saving applications, offering flexibility in various industries such as water and wastewater treatment, mining, minerals and metals processing, oil and gas, and food and beverage processing.

Accessories such as fan kits and graphic display terminals, as well as options including I/O expansion modules, communication modules, and EMC input filters, are available for the Altivar Process ATV600 series drives, depending on the specific drive rating.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
