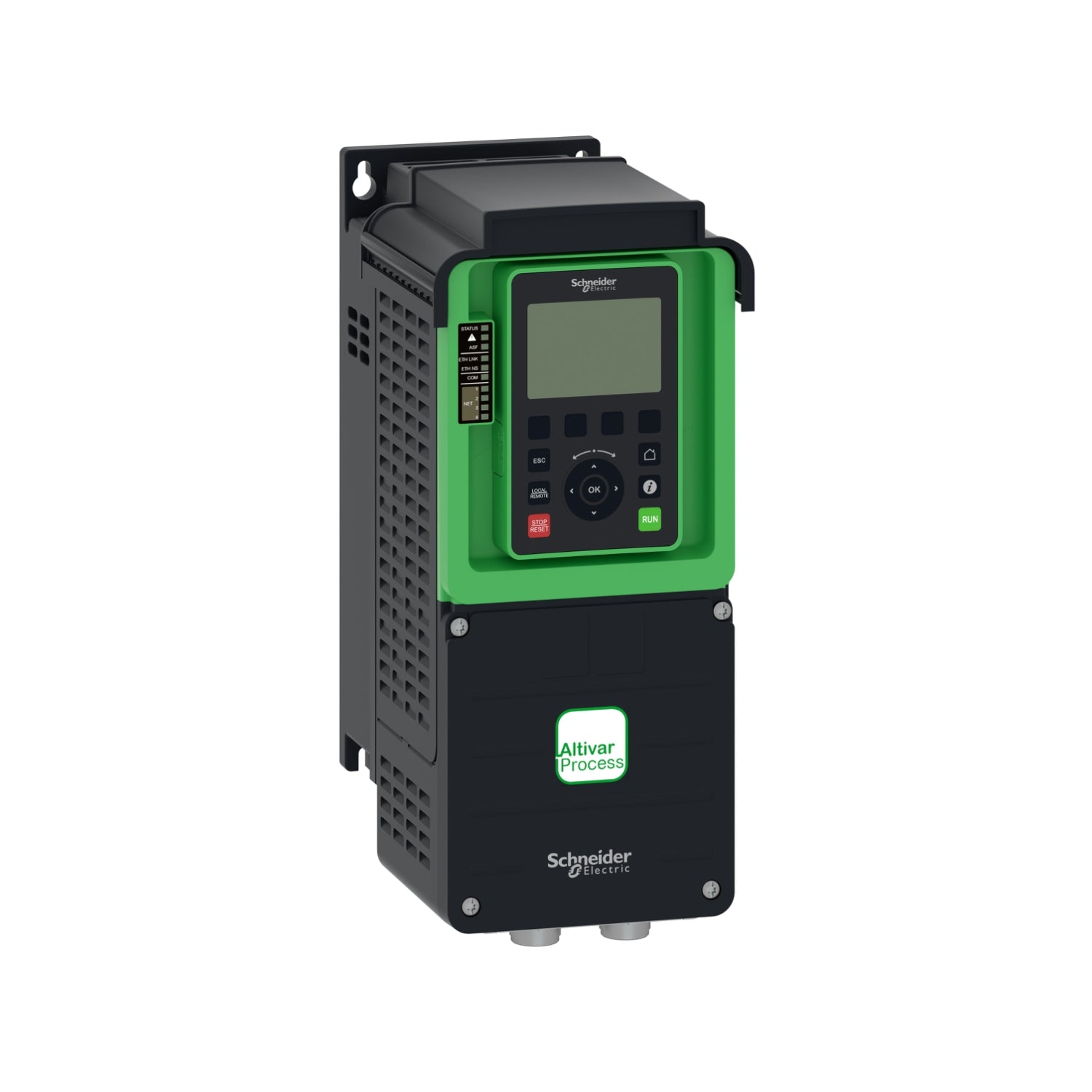

Product Description P/N: ATV630U55N4
Description
The ATV630U55N4 is a variable speed drive belonging to the Altivar Process ATV600 series. It is capable of powering 3-phase synchronous and asynchronous power motors. Equipped with 3 built-in RJ45 communication ports, 1 Ethernet port, and 2 serial ports as standard, it ensures seamless connectivity. Operating within a rated supply voltage range of 380V to 480V AC, this drive offers energy-saving benefits with its innovative "Stop and Go" operation, resulting in up to 30% energy savings during standby without additional costs.
Designed for applications requiring slight overload, it supports motors with power ratings up to 5.5kW / 7.5hp, and for applications requiring significant overload, it accommodates motors with power ratings up to 4kW / 5hp. With dimensions of 144mm in width, 350mm in height, and 203mm in depth, and weighing 4.7kg, it offers a compact and lightweight solution.
Technical Specifications
|
Part # |
ATV630U55N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
KW |
5.5KW, 7.5HP |
|
Range of product |
Altivar Process ATV600 |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Process and utilities |
|
Device short name |
ATV630 |
|
Variant |
Standard version |
|
Product destination |
Asynchronous motors, Synchronous motors |
|
Mounting mode |
Wall mount |
|
EMC filter |
Integrated EN/IEC 61800-3 category C2 50 m, Integrated EN/IEC 61800-3 category C3 150 m |
|
IP degree of protection |
IP21 IEC 61800-5-1, IP21 IEC 60529 |
|
Degree of protection |
UL type 1 UL 508C |
|
Type of cooling |
Forced convection |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Network number of phases |
3 phases |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
Motor power kW |
5.5 kW normal duty, 4 kW heavy duty |
|
Motor power hp |
7.5 hp normal duty, 5 hp heavy duty |
|
Prospective line Isc |
50 kA |
|
Apparent power |
7.6 kVA 480 V normal duty, 6 kVA 480 V heavy duty |
|
Continuous output current |
12.7 A 4 kHz normal duty, 9.3 A 4 kHz heavy duty |
|
Maximum transient current |
14 A 60 s normal duty, 14 A 60 s heavy duty |
|
Synchronous motor control profile |
Permanent magnet motor |
|
Output frequency |
0.0001...0.5 kHz |
|
Nominal switching frequency |
4 kHz |
|
Switching frequency |
2...12 kHz adjustable, 4...12 kHz with derating factor |
|
Safety function |
STO (safe torque off) SIL 3 |
|
Discrete input logic |
16 preset speeds |
|
Output voltage |
<= power supply voltage |
|
Permissible temporary current boost |
1.1 x In 60 s normal duty, 1.5 x In 60 s heavy duty |
|
Exchange mode |
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
|
Data format |
8 bits, configurable odd, even or no parity Modbus serial |
|
Type of polarization |
No impedance Modbus serial |
|
Number of addresses |
1...247 Modbus serial |
|
Method of access |
Slave Modbus TCP |
|
Insulation resistance |
> 1 mOhm 500 V DC for 1 minute to earth |
|
Noise level |
54.5 dB 86/188/EEC |
|
Power dissipation in W |
36 W natural convection 380 V 4 kHz, 145 W forced convection 380 V 4 kHz |
|
Volume of cooling air |
38 m3/h |
|
Operating position |
Vertical +/- 10 degree |
|
THDI |
<= 48 % full load IEC 61000-3-12 |
|
Shock resistance |
15 gn 11 ms IEC 60068-2-27 |
|
Relative humidity |
5...95 % without condensation IEC 60068-2-3 |
|
Ambient air temperature for operation |
-15...50 °C without derating, 50...60 °C with derating factor |
|
Ambient air temperature for storage |
-40...70 °C |
|
Operating altitude |
<= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m |
|
Power range |
4...6 kW |
|
Voltage range |
380...440 V, 480...500 V |
Information About ATV630U55N4
The ATV630U55N4 is a variable speed drive belonging to the Altivar Process ATV600 series. It is designed to regulate the speed of 3-phase synchronous and asynchronous power motors. Equipped with standard features including three RJ45 communication ports, one Ethernet port, and two serial ports, this drive ensures seamless connectivity within industrial environments.
Operating within a rated supply voltage range of 380V to 480V AC, the ATV630U55N4 incorporates an innovative "Stop and Go" operation mechanism, resulting in up to 30% energy savings during standby, without incurring additional costs.
Engineered to accommodate motors with power ratings of up to 5.5kW / 7.5hp for applications requiring slight overload (up to 120%) and up to 4kW / 5hp for applications requiring significant overload (up to 150%), this drive provides versatility in various industrial applications.
Weighing 4.7kg and measuring 144mm in width, 350mm in height, and 203mm in depth, the ATV630U55N4 offers a compact yet robust solution for fluid management processing and energy-saving initiatives. Its flexibility extends across a wide range of industries including water and wastewater, mining, minerals and metals, oil and gas, and food and beverage applications.
Optional accessories such as fan kits and graphic display terminals, along with add-on options like I/O expansion modules, communication modules, and EMC input filters, are available for Altivar Process ATV600 drives, tailored to specific drive ratings and application requirements.
