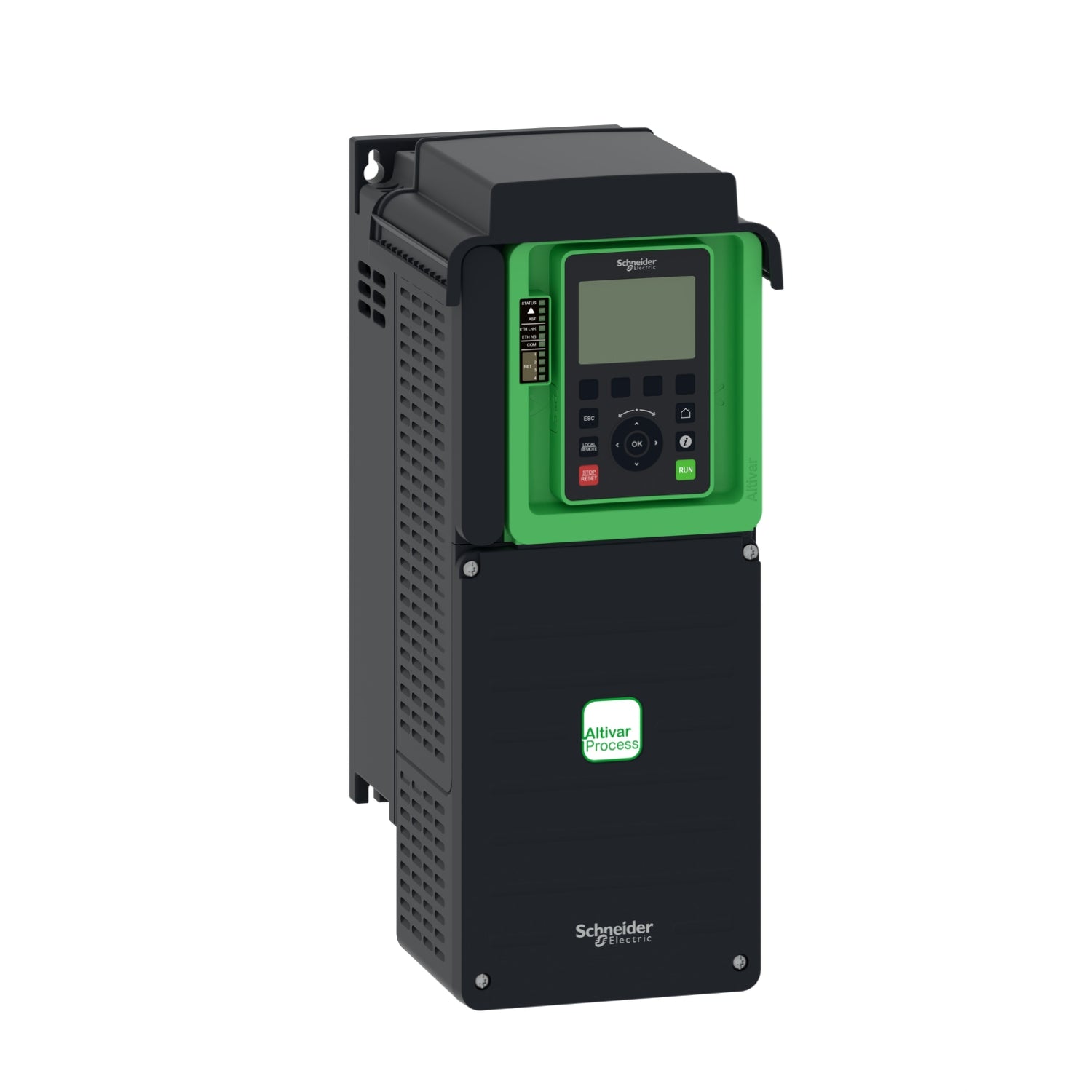

ATV630U75N4 | Schneider Electric Altivar Process ATV630 Variable Speed Drive, 7.5 kW / 10 hp, 380–480 V, IP21
- Regular price
- $1,479.00
- Sale price
- $1,479.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV630U75N4
Description
The Schneider Electric ATV630U75N4 is a variable speed drive from the Altivar Process ATV600/ATV630 series designed for precise control of three-phase synchronous and asynchronous motors. Rated at 7.5 kW (10 hp) and operating on 380–480 V AC, it features an IP21 enclosure suitable for indoor, UL Type 1 applications. Its compact wall-mounted design and integrated communication ports support efficient operation in process and utility environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATV630U75N4 |
| Subcategory | Drive |
| Series | Altivar Process ATV600 / ATV630 |
| Power Rating | 7.5 kW / 10 hp |
| Voltage Rating | 380–480 VAC |
| Phase | 3-phase |
| Amperage Rating | 9.2 / 10.5 / 11.9 / 13.8 A (dependent on configuration) |
| Enclosure Type | IP21 / UL Type 1 |
| Mounting Type | Wall mount (vertical, ±10°) |
| Display Type | Analog |
| Operating Temperature | Up to 50°C (per model capabilities) |
| Dimensions | 171 mm W × 409 mm H × 233 mm D (6.73 × 16.1 × 9.17 in) |
| Weight | 7.7 kg |
| Communication Ports | 1 Ethernet, 2 serial (RJ45) |
| Overload Capability | 120% slight overload; 150% heavy overload |
| Safety Function | Safe Torque Off (SIL3/PLE) |
| Environmental Features | Green Premium, RoHS & REACH compliant, 70% recyclable |
| Conformal Coating | IEC 60721-3-3 Class 3C3 |
| Applications | Water/wastewater, HVAC, mining, oil & gas, processing |
Information About ATV630U75N4
The ATV630U75N4 belongs to the Altivar Process ATV600 family, a line engineered for fluid management, energy efficiency, and automation system optimization. Its construction includes conformal-coated circuit boards for resistance to airborne chemicals and pollutants, enabling reliable operation up to 50°C without additional cooling. With three integrated RJ45 ports (one Ethernet, two serial), it supports seamless connectivity and remote diagnostics. Commonly applied in water/wastewater, mining, oil and gas, and general industrial processing, the drive supports both slight overload (120%) and heavy overload (150%) conditions depending on motor size and duty cycle.
Key Features:
- 7.5 kW / 10 hp motor capacity: Supports synchronous and asynchronous 3-phase motors.
- 380–480 V AC input: Compatible with global industrial power systems.
- Integrated communication: Includes Ethernet and Modbus serial ports for supervisory control.
- Energy-saving “Stop & Go”: Reduces standby power consumption by up to 30%.
- Conformal-coated electronics: Resists chemical and airborne pollutants for enhanced durability.
- IP21 / UL Type 1 enclosure: Suitable for indoor protected installations.
- Safety-certified: Built-in Safe Torque Off rated SIL3/PL e.
- Accessories available: Supports I/O expansion, EMC filters, fan kits, and graphic displays.
The ATV630U75N4 delivers the reliability and precision required for fluid management and process-driven motor control applications.
