Part #: ATV71HU75N4 Manufactured by: Schneider Electric
Regular price
$1,039.00
Sale price
$1,039.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview

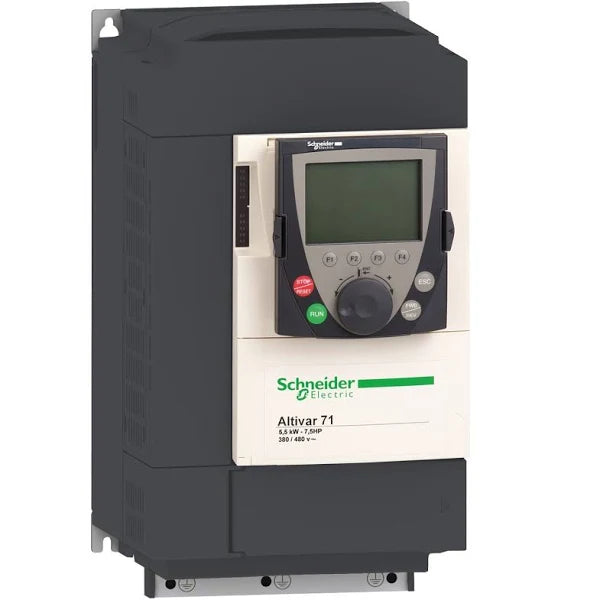

Variable Speed Drive Altivar 71 - 7.5kW-10hp - 480V - with EMC filter and Graphic Terminal
