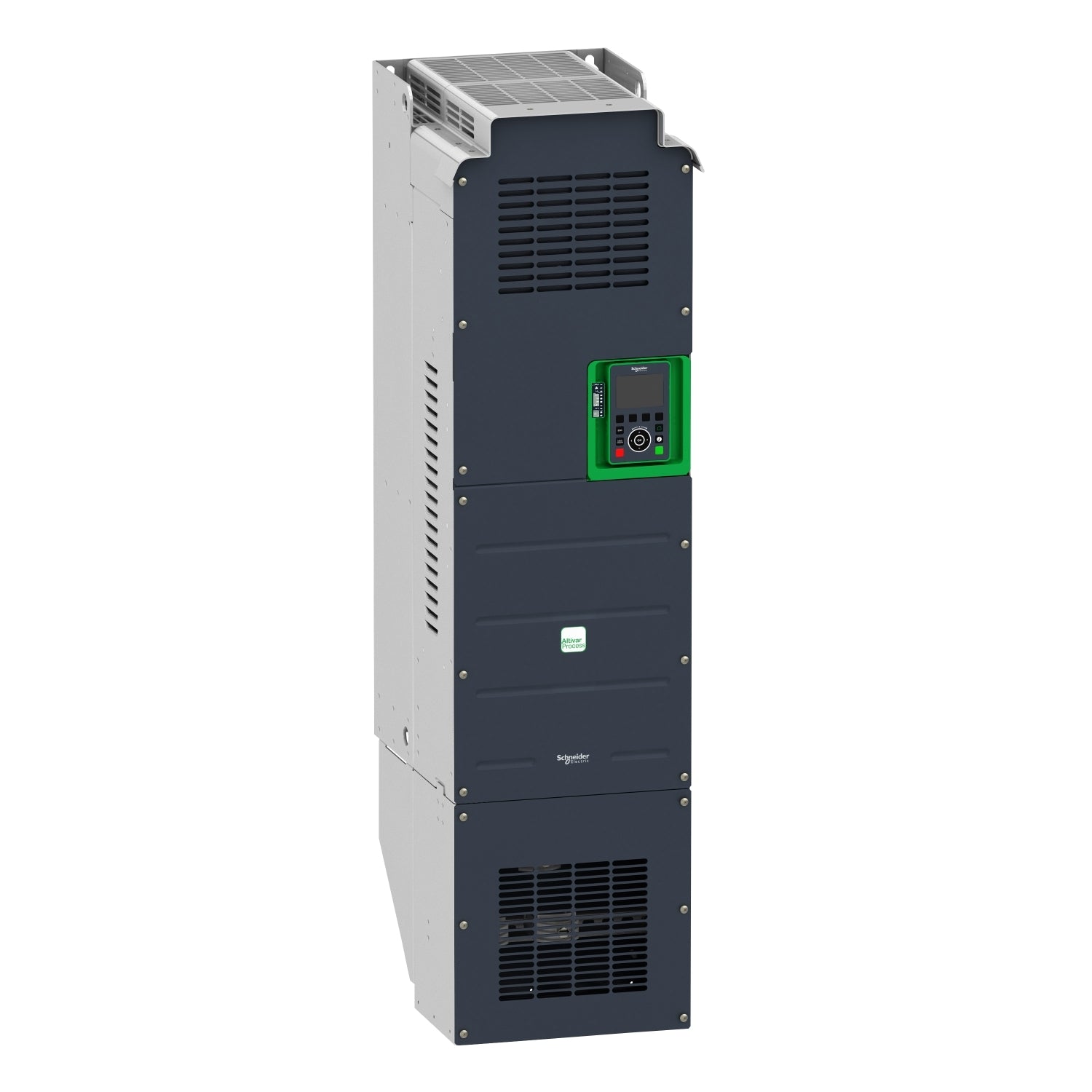

ATV930C11N4C | Schneider Electric Variable Speed Drive
- Regular price
- $6,279.00
- Sale price
- $6,279.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV930C11N4C
Description
The ATV930C11N4C is a Variable Speed Drive (VSD) from the Altivar Process ATV900 series, designed for industrial applications. It supports 3-phase synchronous and asynchronous power motors up to 110 kW (150 HP) for applications with slight overload (up to 120%), or up to 90 kW (125 HP) for applications requiring significant overload (up to 150%). Operating at a rated supply voltage ranging from 380 VAC to 480 VAC, this VSD is optimized for industrial processes across various market segments including oil and gas, mining, minerals and metals, food and beverage, water and wastewater.
Technical Specifications
|
Part # |
ATV930C11N4C |
|
Category |
Drives |
|
Subcategory |
Drive Range of Product |
|
Device Application |
Industrial Application |
|
Product or Component Type |
Variable speed drive |
|
Product Destination |
Synchronous motors, Asynchronous motors |
|
Product Specific Application |
Process for industrial |
|
Variant |
Standard version |
|
Without braking chopper |
Yes |
|
Phase |
3 phase |
|
Mounting Mode |
Wall mount |
|
Us rated supply voltage |
380...480 V - 15...10 % |
|
Motor power kW |
110.0 kW normal duty, 90.0 kW heavy duty |
|
Continuous output current |
211 A 2.5 kHz normal duty, 173 A 2.5 kHz heavy duty |
|
EMC filter |
Integrated |
|
IP degree of protection |
IP21 |
|
Degree of protection |
UL type 1 |
|
Maximum output frequency |
599 Hz |
|
Switching frequency |
1...8 kHz adjustable, 2.5...8 kHz with derating factor |
|
Nominal switching frequency |
2.5 kHz |
|
Network Frequency |
50-60 Hz |
|
Prospective line Isc |
50 kA |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, configurable odd, even or no parity |
|
Type of polarization |
No impedance |
|
4 quadrant operation possible |
FALSE |
|
Acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
FALSE |
|
Maximum Input Current per Phase |
201.0 A |
|
Maximum output voltage |
480.0 V |
|
Relative symmetric network frequency tolerance |
5 % |
|
Base load current at high overload |
173.0 A |
|
Base load current at low overload |
211.0 A |
Information About ATV930C11N4C
The ATV930C11N4C is a Variable Speed Drive (VSD) from the Altivar Process ATV900 series, engineered for industrial applications requiring precise motor control and high reliability. Designed to support 3-phase synchronous and asynchronous power motors, it accommodates motors up to 110 kW (150 HP) for applications with slight overload conditions (up to 120%), and up to 90 kW (125 HP) for applications requiring significant overload (up to 150%).
Operating within a rated supply voltage range of 380 VAC to 480 VAC, the ATV930C11N4C is optimized for industrial processes across diverse sectors including oil and gas, mining, minerals and metals, food and beverage, and water and wastewater treatment. It delivers robust motor performance and ensures comprehensive control over various coupling configurations in master/slave applications.
To maintain operational continuity, the drive incorporates network services that mitigate disruptions caused by connection failures. Additionally, features like a built-in web server and data logging capabilities facilitate rapid troubleshooting and preventive maintenance, thereby minimizing downtime and enhancing operational efficiency.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
