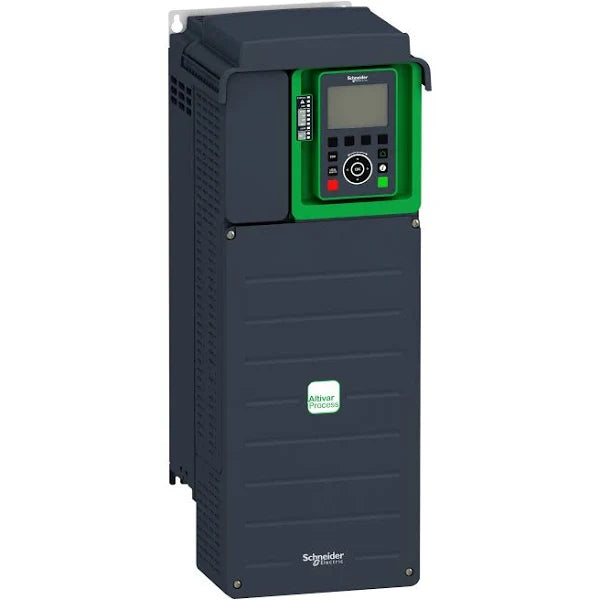

ATV930D22N4 | Schneider Electric Altivar Process 22 kW Variable Speed Drive (380–480V AC)
- Regular price
- $3,449.00
- Sale price
- $3,449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATV930D22N4
Description
The Schneider Electric ATV930D22N4 is a 22 kW (30 hp) variable speed drive from the Altivar Process ATV900 series, designed for precise control of 3-phase synchronous and asynchronous motors. Operating within a 380–480V AC supply range, it supports both normal-duty and high-overload applications, making it suitable for demanding industrial processes.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D / Schneider Electric |
| Category | Drives |
| Part Number | ATV930D22N4 |
| Subcategory | Altivar Process ATV930 Drive |
| Type | Type 1 |
| Horsepower | 30 HP |
| Rated Motor Power | 22 kW (Normal Duty) |
| Rated Supply Voltage | 380…480 V AC (–15% to +10%) |
| Network Frequency | 50–60 Hz |
| Continuous Output Current | 46.3 A (Normal Duty, 4 kHz) |
| Base Load Current (High Overload) | 39.2 A |
| Base Load Current (Low Overload) | 46.3 A |
| Maximum Input Current per Phase | 39.6 A |
| Maximum Output Voltage | 480 V |
| Maximum Output Frequency | 599 Hz |
| Switching Frequency | 2–16 kHz Adjustable (4 kHz Nominal) |
| Integrated EMC Filter | Yes |
| Integrated Brake Chopper | Yes |
| Braking Method | DC Injection |
| IP Rating | IP21 |
| Prospective Line Isc | 50 kA |
| Network Symmetry Tolerance | 5% |
| Mounting Orientation | Vertical (±10°) |
Information About ATV930D22N4
The ATV930D22N4 is part of the Schneider Electric Altivar Process ATV900 series, engineered for high-performance motor control in industrial process environments. It supports 22 kW (30 hp) motors for normal-duty applications and 18.5 kW (25 hp) motors for high-overload applications, operating on a 380–480V AC power supply. Built for demanding sectors such as oil and gas, water and wastewater, mining, and food processing, the drive enables precise motor speed regulation and torque control. With built-in web server functions, advanced diagnostics, and embedded data logging, it enhances troubleshooting efficiency and supports preventive maintenance across distributed automation systems.
Key Features
- High-Performance Motor Control: supports synchronous and asynchronous 3-phase motors up to 22 kW/30 hp for normal duty and 18.5 kW/25 hp for high-overload applications.
- Wide Voltage Compatibility: operates on 380–480V AC with a –15% to +10% tolerance for flexible deployment in industrial power networks.
- Advanced Frequency Output: provides a maximum output frequency of 599 Hz with adjustable switching frequencies from 2 to 16 kHz.
- Integrated EMC Filter and Brake Chopper: includes noise suppression and built-in braking capability for stable motor stopping and reduced harmonic interference.
- Strong Overload Handling: supports up to 120% overload (normal duty) and up to 150% overload (heavy duty) for demanding process requirements.
- Robust Protection and Ratings: features IP21 protection, 50 kA prospective line Isc rating, and reliable DC injection braking for safe operation.
- Connectivity and Communication: offers EtherNet/IP and Modbus TCP integration for seamless connection to modern automation networks.
- Intelligent Maintenance Tools: embedded web server, network diagnostics, and data logging improve system monitoring and reduce downtime.
The ATV930D22N4 delivers the reliability and precision required for industrial motor control, high-demand process applications, and seamless integration into advanced automation environments.
