ATV930D30N4 | Schneider Electric Variable Speed Drive
- Regular price
- $1,917.00
- Sale price
- $1,917.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

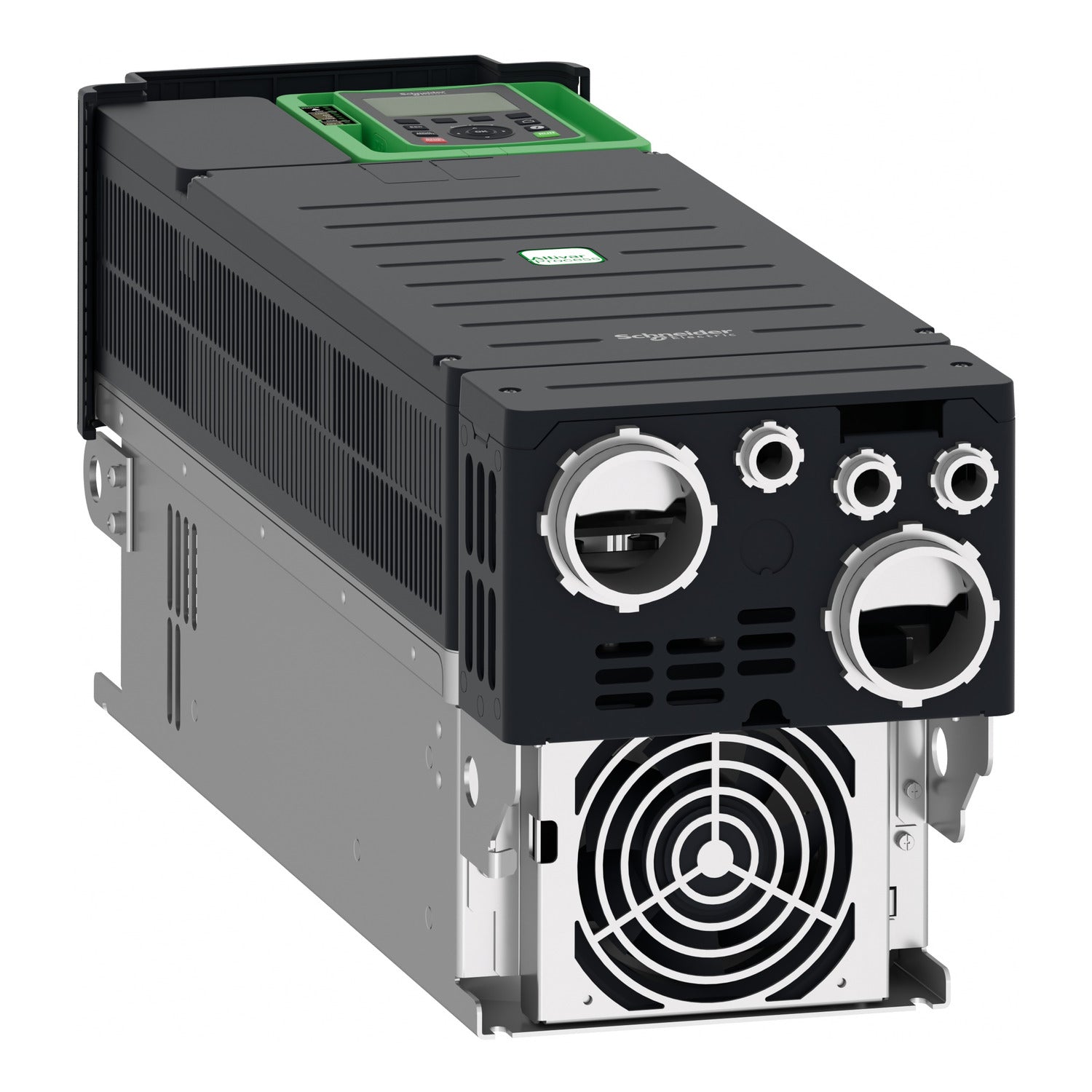

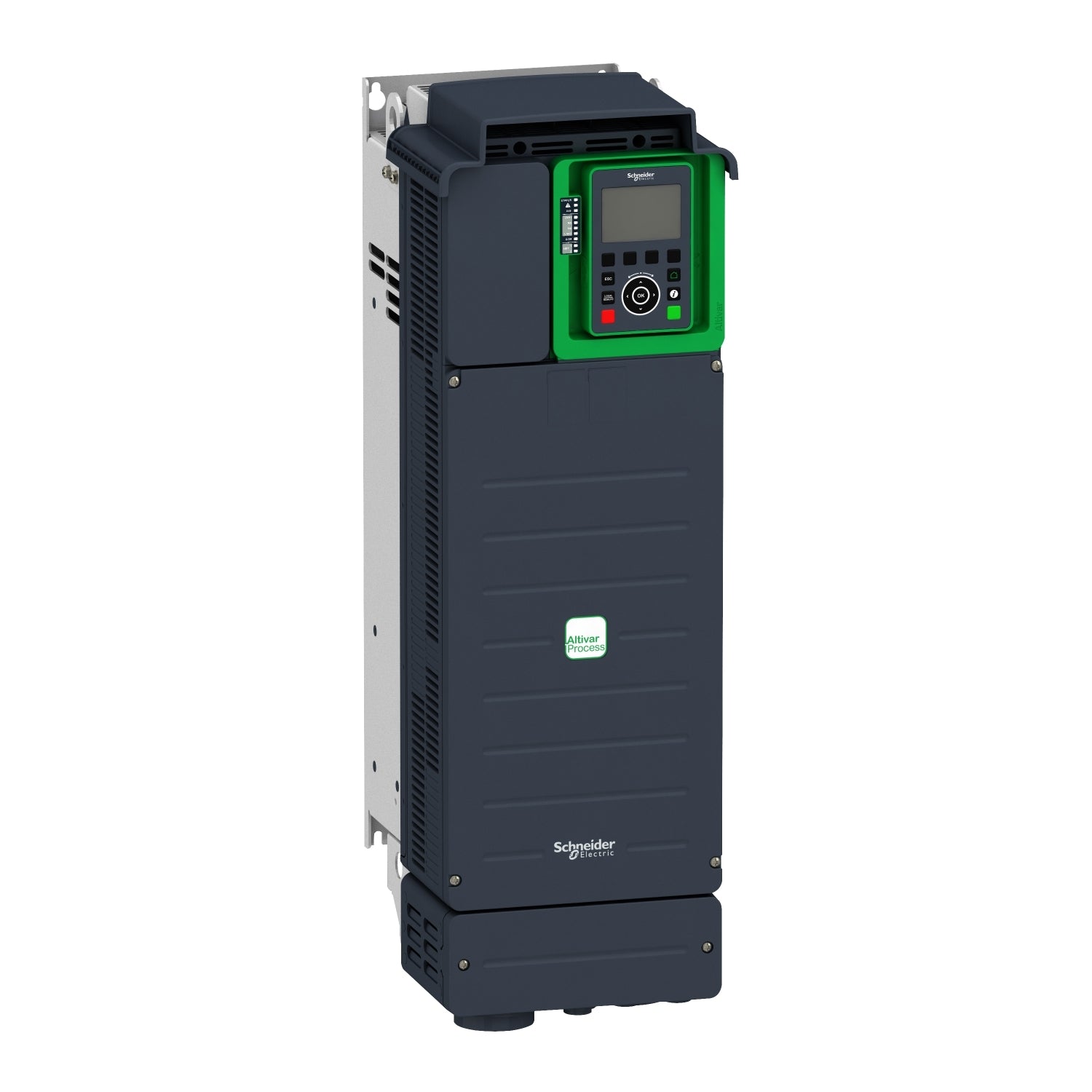

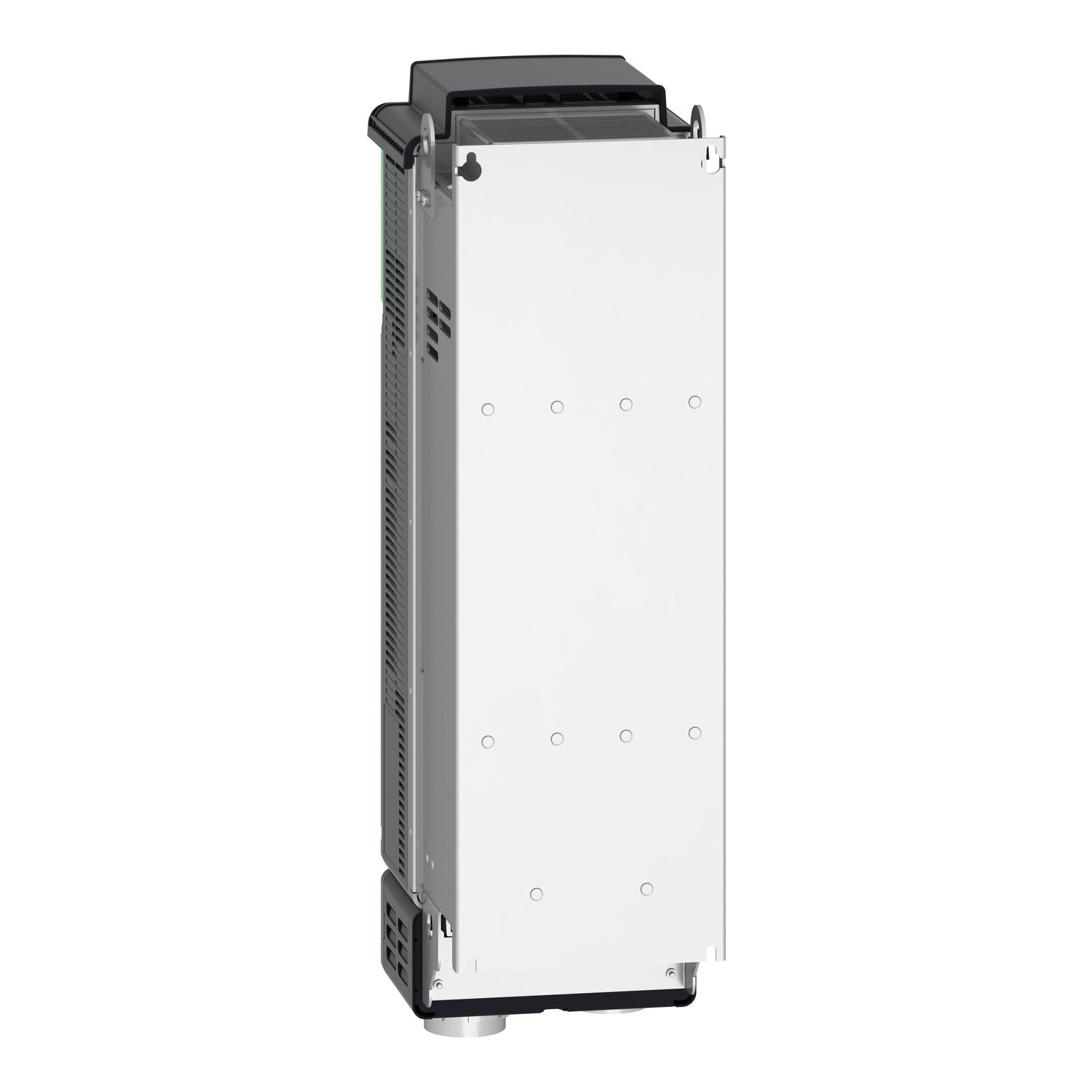

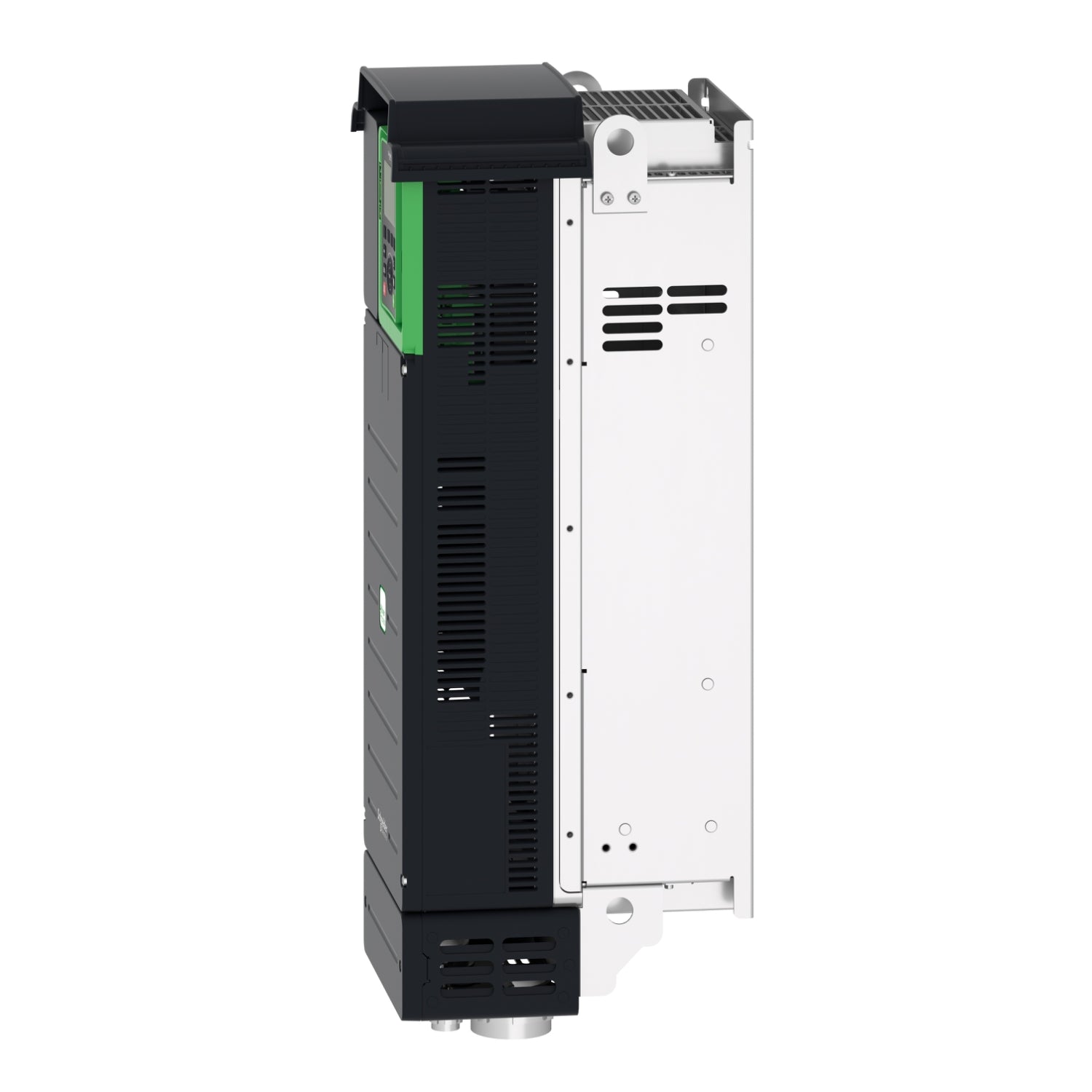

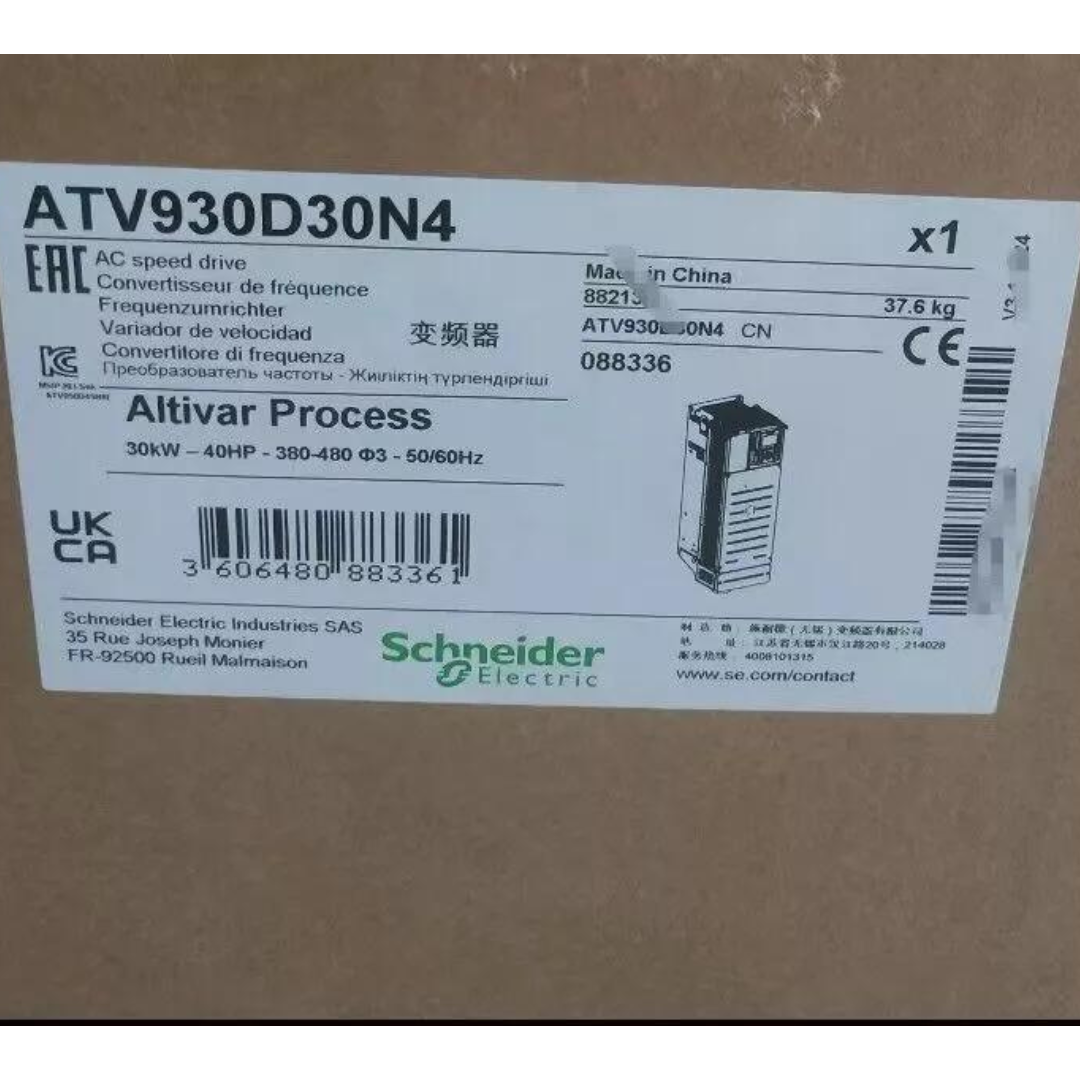

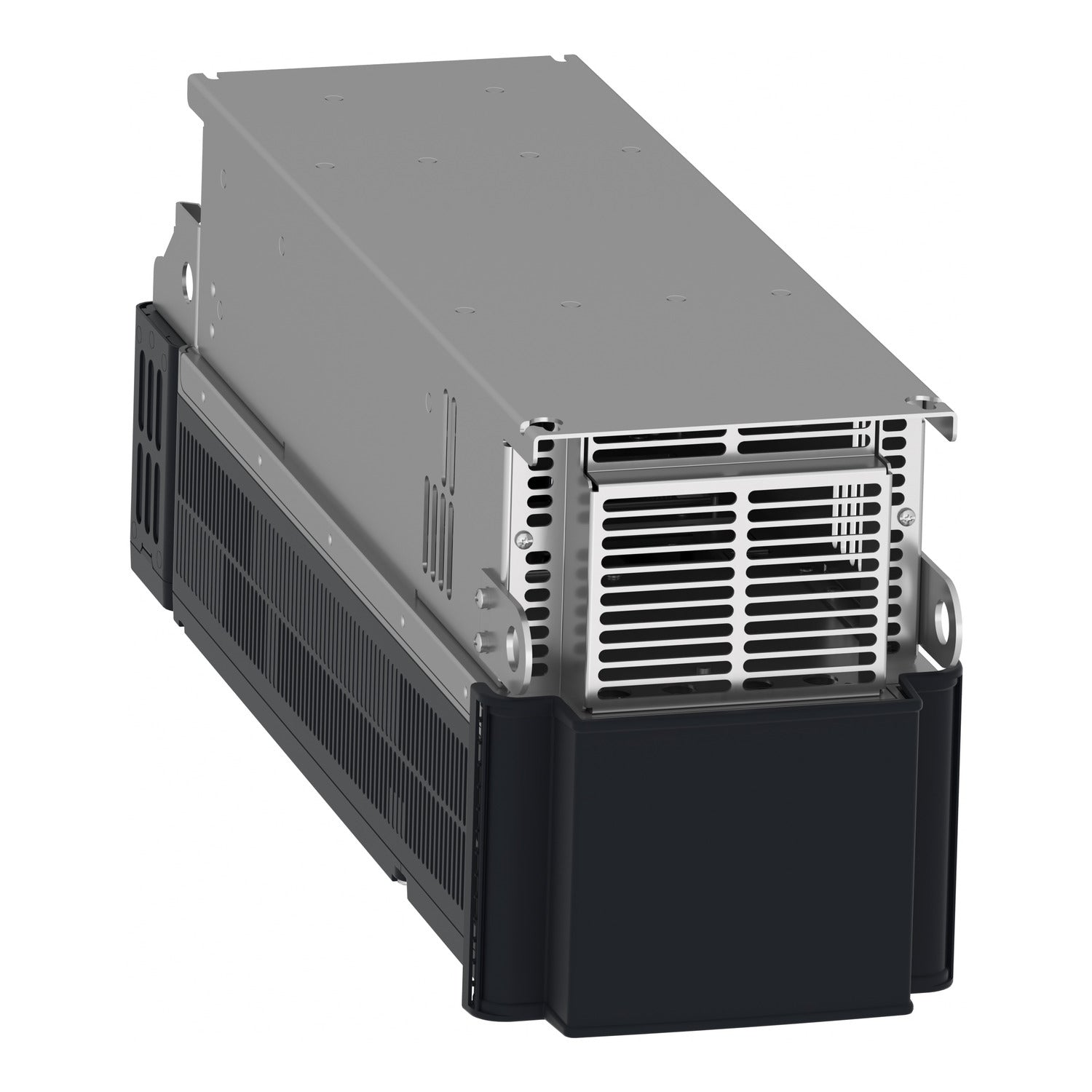

Product Description P/N: ATV930D30N4
Description
The ATV930D30N4 is a variable speed drive from the Altivar Process ATV900 series, designed to accommodate 3-phase synchronous and asynchronous power motors. It supports motors with power ratings up to 30kW/40hp for applications requiring slight overload (up to 120%) and up to 22kW/30hp for applications requiring significant overload (up to 150%). Operating at a rated supply voltage range of 380V to 480V AC, it is tailored for industrial processes, specifically targeting market segments such as oil and gas, mining, minerals and metals, food and beverage, water, and wastewater industries.
Technical Specifications
|
Condition |
New / Never Used Surplus |
|
Part # |
ATV930D30N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of product Altivar Process ATV900 |
|
Product or component type |
Variable speed drive |
|
Device application |
Industrial application |
|
Device short name |
ATV930 |
|
Variant |
Standard version |
|
Product destination |
Asynchronous motors |
|
Mounting mode |
Wall mount |
|
Degree of protection |
UL type 1 conforming to UL 508C |
|
Type of cooling |
Forced convection |
|
Supply frequency |
50...60 Hz (+/- 5 %) |
|
Network number of phases |
3 phases |
|
[Us] rated supply voltage |
380...480 V (- 15...10 %) |
|
Motor power kW |
30 kW (normal duty) |
|
Prospective line Isc |
50 kA |
|
Apparent power |
29.8 kVA at 480 V (heavy duty) |
|
Synchronous motor control profile |
Permanent magnet motor |
|
Speed drive output frequency |
0.1...599 Hz |
|
Nominal switching frequency |
4 kHz |
|
Switching frequency |
2...16 kHz adjustable |
|
Safety function |
STO (safe torque off) SIL 3 |
|
Discrete input logic |
16 preset speeds |
|
Acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s |
|
Braking to standstill |
By DC injection |
|
Physical interface |
2-wire RS 485 for Modbus serial |
|
Transmission frame |
RTU for Modbus serial |
|
Transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP |
|
Exchange mode |
Half duplex, full duplex, autonegotiation for Ethernet IP/Modbus TCP |
|
Data format |
8 bits, configurable odd, even or no parity for Modbus serial |
|
Type of polarization |
No impedance for Modbus serial |
|
Number of addresses |
1...247 for Modbus serial |
|
Method of access |
Slave for Modbus TCP |
|
Insulation resistance |
> 1 mOhm at 500 V DC for 1 minute to earth |
|
Noise level |
71.5 dB conforming to 86/188/EEC |
|
Power dissipation in W |
93 W (natural convection) at 380 V switching frequency 4 kHz |
|
Volume of cooling air |
240 m3/h |
|
Operating position |
Vertical +/- 10 degree |
|
THDI |
<= 48 % from 80...100 % of load conforming to IEC 61000-3-12 |
|
Pollution degree |
2 EN/IEC 61800-5-1 |
|
Vibration resistance |
1.5 mm peak to peak (f = 2...13 Hz) conforming to IEC 60068-2-6 |
|
Vibration resistance |
1 gn (f = 13...200 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance |
15 gn during 11 ms conforming to IEC 60068-2-27 |
|
Relative humidity |
5...95 % without condensation conforming to IEC 60068-2-3 |
|
Ambient air temperature for operation |
-15...50 °C without derating |
|
Ambient air temperature for storage |
-40...70 °C |
|
Operating altitude |
1000...4800 m with current derating 1 % per 100 m |
Information About ATV930D30N4
The ATV930D30N4 is a variable speed drive belonging to the Altivar Process ATV900 series, designed to provide power to 3-phase synchronous and asynchronous motors. Capable of handling motors with power ratings up to 30kW/40hp for slight overload applications (up to 120%) and up to 22kW/30hp for significant overload applications (up to 150%), it operates within a rated supply voltage range of 380V to 480V AC.
Primarily intended for industrial processes, this variable speed/frequency drive (VSD/VFD) is tailored for use in various market segments including oil and gas, mining, minerals and metals, food and beverage, water, and wastewater industries. It ensures high motor performance and offers precise control over any type of coupling in master/slave applications.
To ensure operational continuity, network services are provided, enabling seamless operation even in the event of connection breakdowns. Additionally, features such as a web server and data logging facilitate rapid troubleshooting and preventive maintenance, helping to minimize downtime.
With advanced connectivity options including EtherNet/IP and Modbus TCP, this drive allows for deep integration into automation architectures, enhancing overall system efficiency.
