ATV930D55N4 | Schneider Electric Variable speed drive
- Regular price
- $2,677.00
- Sale price
- $2,677.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

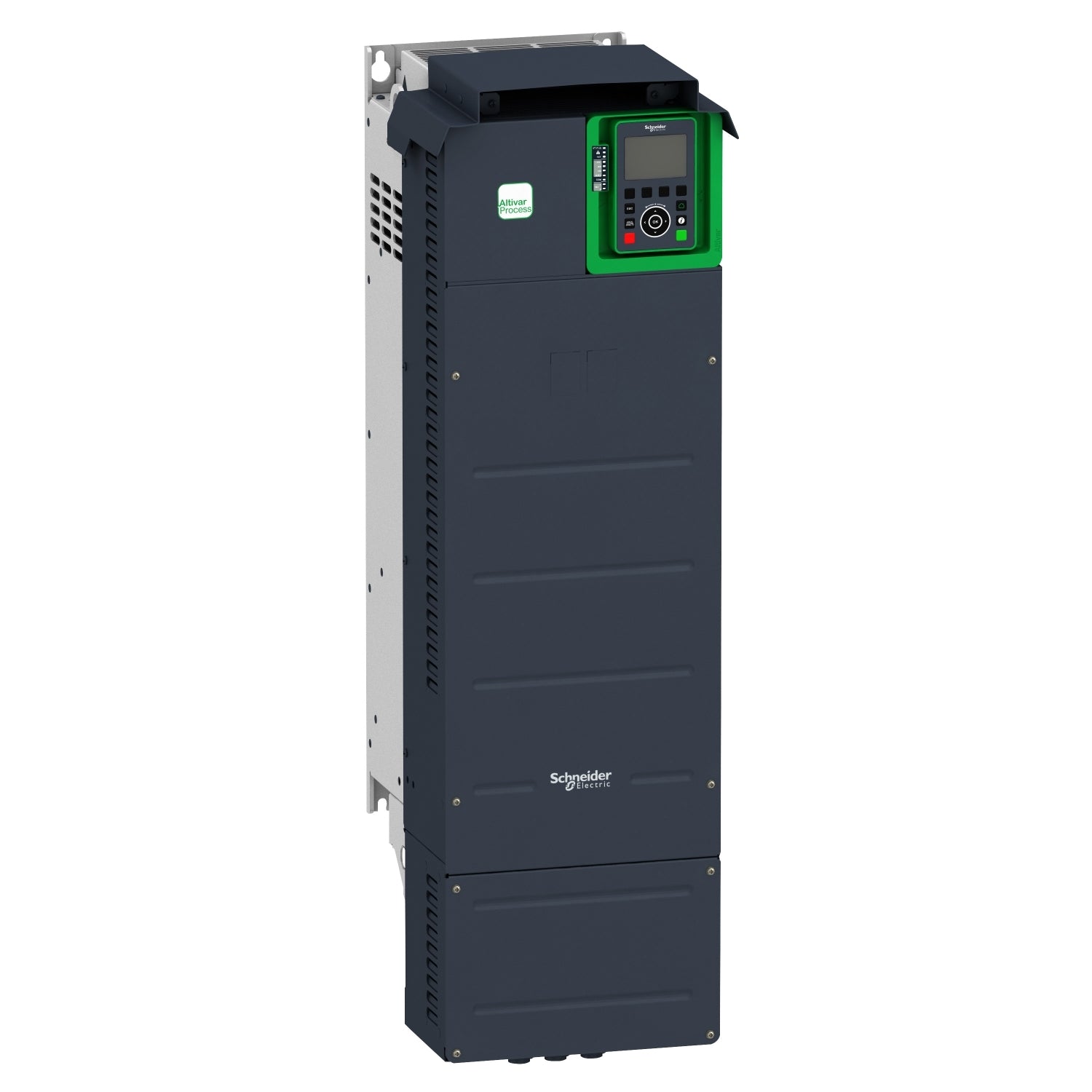

Product Description P/N: ATV930D55N4
Description
The ATV930D55N4 is a variable speed drive from the Altivar Process ATV900 series, designed to power 3-phase synchronous and asynchronous motors. With a power rating of 55kW and operating within a supply voltage range of 380V to 480V AC, this drive caters to industrial applications.
It is suitable for motors with power ratings up to 55kW/75hp for slight overload applications (up to 120%) and up to 45kW/60hp for significant overload applications (up to 150%), providing versatility in motor compatibility.
Tailored for industrial processes in sectors such as oil and gas, mining, minerals and metals, food and beverage, water, and wastewater industries, the ATV930D55N4 ensures high motor performance and precise control over various coupling configurations in master/slave applications.
Technical Specifications
|
Part # |
ATV930D55N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of Product |
|
Device Application |
Industrial Application |
|
Product or Component Type |
Variable speed drive |
|
Product destination |
Asynchronous motors |
|
Product Specific Application |
Process for industrial |
|
Variant |
With braking chopper |
|
Phase |
3 phase |
|
Mounting Mode |
Wall mount |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
Motor power kW |
55.0 kW normal duty |
|
IP degree of protection |
IP21 |
|
Degree of protection |
UL type 1 |
|
Maximum output frequency |
599 Hz |
|
Switching frequency |
1...8 kHz adjustable |
|
Nominal switching frequency |
2.5 kHz |
|
Network Frequency |
50-60 Hz |
|
Prospective line Isc |
50 kA |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, configurable odd, even or no parity |
|
Type of polarization |
No impedance |
|
4 quadrant operation possible |
True |
|
Acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s |
|
Braking to standstill |
By DC injection |
|
Brake chopper integrated |
True |
|
Maximum Input Current per Phase |
97.2 A |
|
Maximum output voltage |
480.0 V |
|
Relative symmetric network frequency tolerance |
5 % |
|
Base load current at high overload |
88.0 A |
|
Base load current at low overload |
106.0 A |
|
Transmission Rate |
10/100 Mbit/s Ethernet IP/Modbus TCP |
|
Exchange mode |
Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
|
Type of polarization |
No impedance Modbus serial |
|
Number of addresses |
1…247 Modbus serial |
|
Refresh time |
Relay output R1, R2, R3: 5 ms +/- 0.5 ms |
|
Isolation |
Between power and control terminals |
|
Maximum THDI |
<48 % from 80...100 % of load IEC 61000-3-12 |
|
Assembly style |
Enclosed |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
77932.15 Gal/hr(US) (295 m3/h) |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth |
|
Noise level |
68.3 dB 86/188/EEC Relative humidity |
|
Ambient air temperature for operation |
5…122 °F (-15…50 °C) without derating |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-40…158 °F (-40…70 °C) |
|
Ambient Air Temperature for Storage |
-40…158 °F (-40…70 °C) |
Information About ATV930D55N4
The ATV930D55N4 is a variable speed drive belonging to the Altivar Process ATV900 series, designed to supply power to 3-phase synchronous and asynchronous motors. With a power rating of 55kW, it operates within a supply voltage range of 400 to 480V AC.
This drive is suitable for motors with power ratings up to 55kW/75hp for applications requiring slight overload (up to 120%), and up to 45kW/60hp for applications requiring significant overload (up to 150%). It is specifically engineered for industrial processes and finds application across various sectors including oil and gas, mining, minerals and metals, food and beverage, water, and wastewater industries.
Offering high motor performance and comprehensive control over various coupling configurations in master/slave applications, the ATV930D55N4 ensures operational continuity even in the event of connection breakdowns, thanks to its network services. Additionally, its built-in web server and data logging functionality aid in minimizing downtime by enabling fast troubleshooting and preventive maintenance.
With advanced connectivity features such as EtherNet/IP and Modbus TCP, this drive allows seamless integration into automation architectures, enhancing overall system efficiency and performance.
