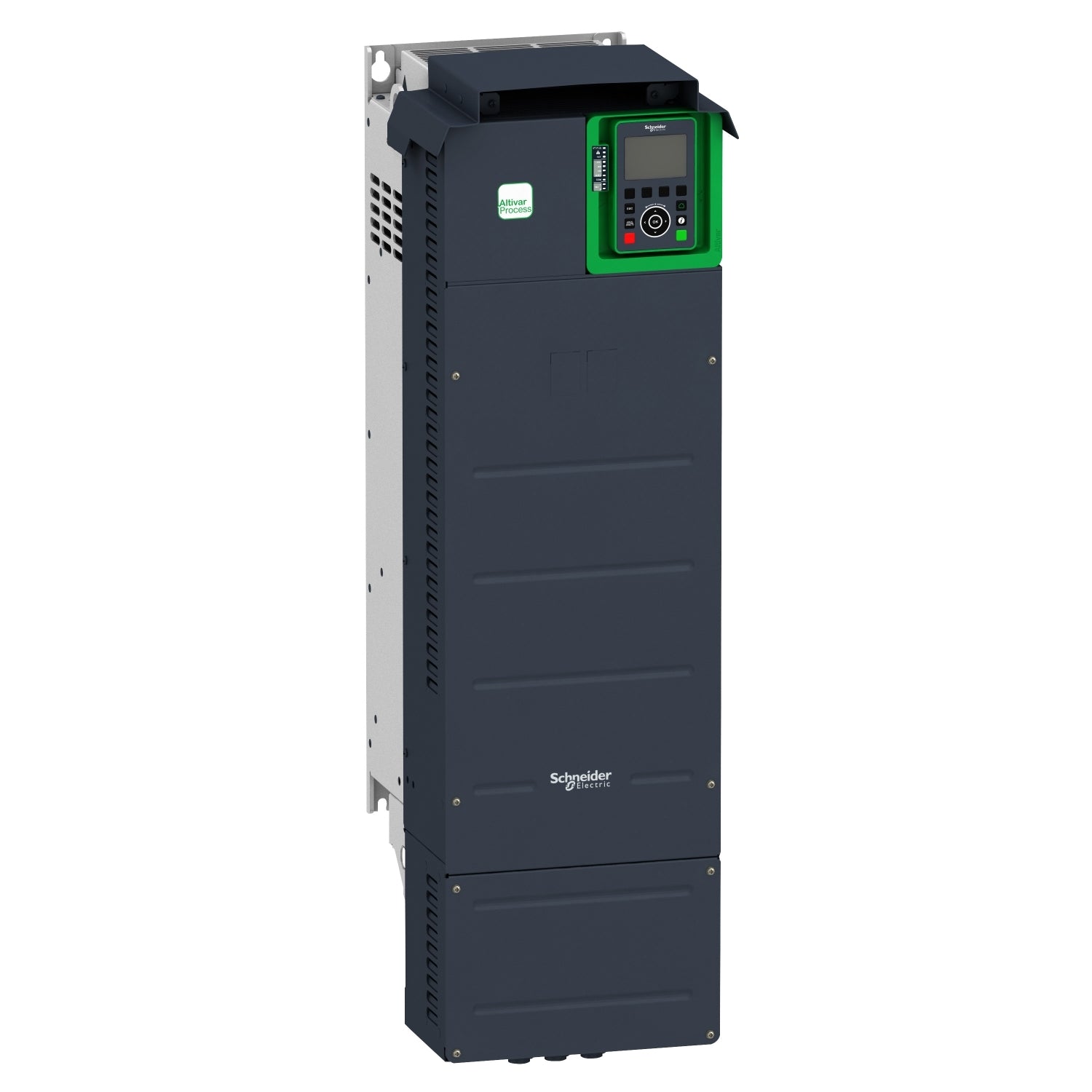

ATV930D90N4 | Schneider Electric Variable speed drive
- Regular price
- $5,429.00
- Sale price
- $5,429.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: ATV930D90N4
Description
The ATV930D90N4, a member of the Altivar Process ATV900 series, is a variable speed drive optimized for industrial processes. Capable of powering 3-phase synchronous and asynchronous motors, it accommodates motor power ratings up to 90 kW/125 hp for applications with slight overload (up to 120%) and up to 75 kW/100 hp for applications with significant overload (up to 150%).
Operating within a rated supply voltage range of 380V to 480V AC, this variable speed/frequency drive (VSD/VFD) is engineered for industrial environments, specifically targeting market segments such as oil and gas, mining, minerals and metals, food and beverage, water, and wastewater. It boasts high motor performance across various motor types and enables precise control of coupling in master/slave applications.
Technical Specifications
|
Part # |
ATV930D90N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Range of Product |
|
Device application |
Industrial Application |
|
Product or component type |
Variable Speed Drive |
|
Product destination |
Synchronous Motors |
|
Product specific application |
Industrial Process |
|
Variant |
Standard Version |
|
Number of phases |
3 Phases |
|
Mounting mode |
Wall Mount |
|
[Us] rated supply voltage |
380...480 V - 15...10% |
|
Motor power kW |
90.0 kW (Normal Duty) |
|
Continuous output current |
173 A (at 2.5 kHz, Normal Duty) |
|
EMC filter |
Integrated |
|
IP degree of protection |
IP21 |
|
Degree of protection |
UL Type 1 |
|
Maximum output frequency |
599 Hz |
|
Switching frequency |
1...8 kHz adjustable |
|
Nominal switching frequency |
2.5 kHz |
|
Network frequency |
50...60 Hz |
|
Prospective line Isc |
50 kA |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, configurable odd, even, or no parity |
|
Type of polarization |
No Impedance |
|
4 quadrant operation possible |
True |
|
Acceleration and deceleration ramps |
Linear, adjustable separately from 0.01...9999 s |
|
Braking to standstill |
By DC Injection |
|
Brake chopper integrated |
True |
|
Maximum input current |
156.2 A |
|
Maximum output voltage |
480.0 V |
|
Relative symmetric network frequency tolerance |
5% |
|
Base load current at high overload |
145.0 A |
|
Base load current at low overload |
173.0 A |
|
Exchange mode |
Half Duplex, Full Duplex, Autonegotiation |
|
Refresh time |
Relay Output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
|
Isolation |
Between Power and Control Terminals |
|
Maximum THDI |
<48% from 80...100% of Load (IEC 61000-3-12) |
|
Assembly style |
Enclosed |
|
Maximum acceleration under shock impact |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity |
Class 3K5 (EN 60721-3) |
|
Volume of cooling air |
295 m³/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID Regulator |
|
Insulation resistance |
> 1 MOhm (500 V DC, 1 minute to earth) |
|
Noise level |
68.3 dB (86/188/EEC) |
|
Vibration resistance |
1.5 mm peak to peak (f= 2…13 Hz) |
|
Shock resistance |
15 gn for 11 ms |
|
Environmental characteristic |
Chemical Pollution Resistance Class 3C3 (IEC 60721-3-3) |
|
Ambient air temperature for operation |
-15…50 °C (Without Derating) |
|
Ambient air transport temperature |
-40…70 °C |
|
Ambient air temperature for storage |
-40…70 °C |
Information About ATV930D90N4
The ATV930D90N4, part of the Altivar Process ATV900 series, is a variable speed drive meticulously engineered to power 3-phase synchronous and asynchronous motors. With a power rating of up to 90 kW/125 hp, it caters to applications requiring slight overload (up to 120%) and up to 75 kW/100 hp for those necessitating significant overload (up to 150%).
Operating within a rated supply voltage range of 380V to 480V AC, this variable speed/frequency drive (VSD/VFD) is purpose-built for industrial processes, specifically targeting sectors such as oil and gas, mining, minerals and metals, food and beverage, water, and wastewater.
Delivering high motor performance across diverse motor types, the ATV930D90N4 ensures comprehensive control over various coupling configurations in master/slave applications. Network services are integrated to ensure operational continuity, even in the event of connection disruptions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
