ATV930U75N4 | Schneider Electric Variable speed drive
- Regular price
- $819.00
- Sale price
- $819.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

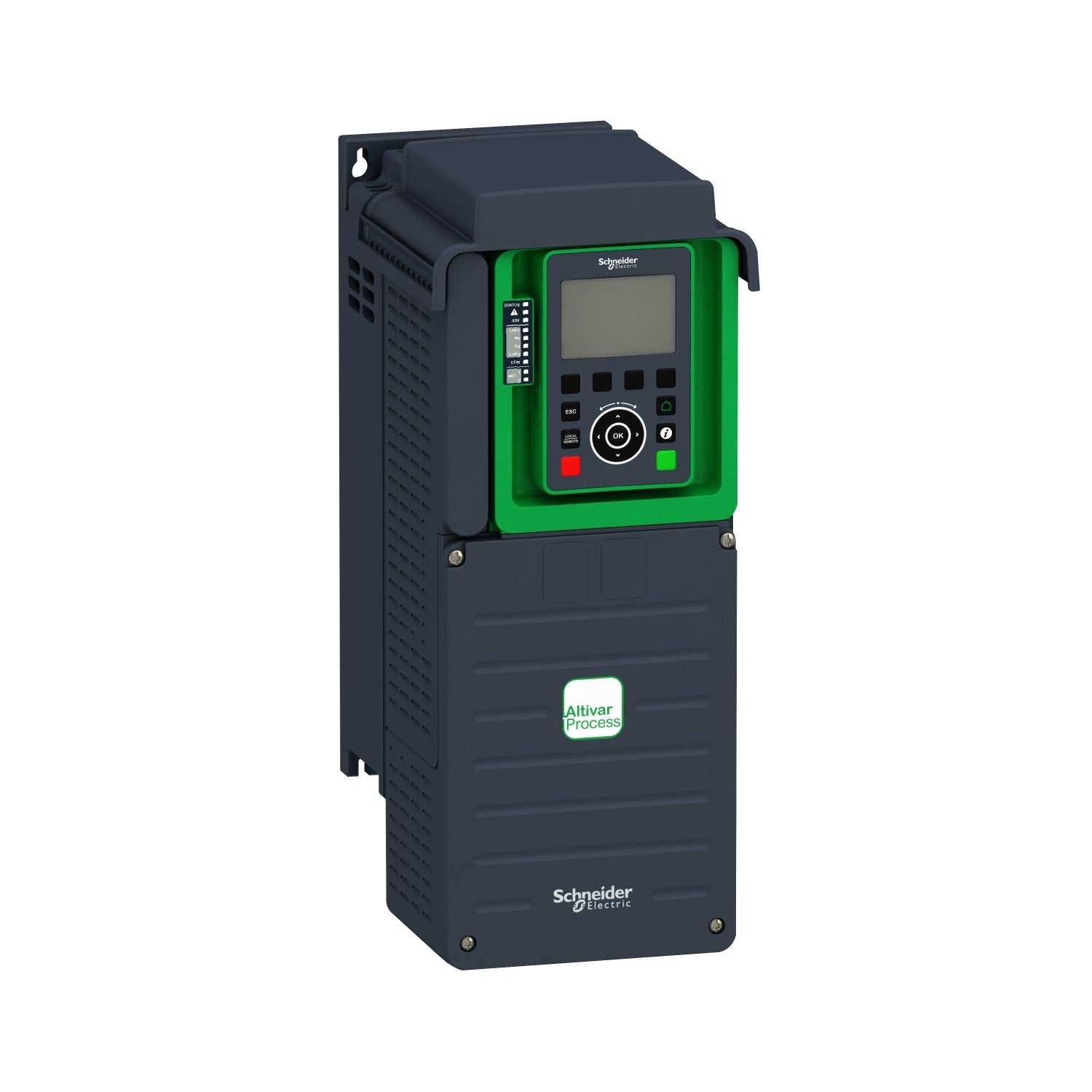

Product Description P/N: ATV930U75N4
Description
The ATV930U75N4 is a variable speed drive from the Altivar Process ATV900 series, designed to control 3-phase synchronous and asynchronous power motors. It supports motors with a power rating of up to 7.5 kW/10 hp for applications with slight overload (up to 120%) and up to 5.5 kW/7.5 hp for applications with significant overload (up to 150%). Operating within a rated supply voltage range of 380V to 480V AC, this variable speed/frequency drive (VSD/VFD) is engineered for industrial processes.
Primarily targeting industries such as oil and gas, mining, minerals and metals, food and beverage, water, and wastewater, it offers exceptional motor performance and precise control over various types of couplings in master/slave applications. The drive ensures operational continuity through network services, even in the event of connection breakdowns.
Equipped with a web server and data logging capabilities, it facilitates rapid troubleshooting and preventive maintenance, thereby reducing downtime. Its advanced connectivity options, including EtherNet/IP and Modbus TCP, enable seamless integration into automation architectures.
Technical Specifications
|
Part # |
ATV930U75N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
Range of product |
Altivar Process ATV900 |
|
Device application |
Industrial application |
|
Product or component type |
Variable speed drive |
|
Product destination |
Asynchronous motors, Synchronous motors |
|
Product specific application |
Process for industrial |
|
Variant |
Standard version, With braking chopper |
|
Network number of phases |
3 phases |
|
Mounting mode |
Wall mount |
|
Rated supply voltage |
380...480 V - 15...10 % |
|
Motor power kW |
7.5 kW for normal duty, 5.5 kW for heavy duty |
|
Continuous output current |
16.5 A at 4 kHz for normal duty, 12.7 A at 4 kHz for heavy duty |
|
Maximum output frequency |
599 Hz |
|
Switching frequency |
2...16 kHz adjustable, 4...16 kHz with derating factor |
|
Nominal switching frequency |
4 kHz |
|
Network frequency |
50...60 Hz |
|
Prospective line Isc |
50 kA |
|
Minimum switching current |
Relay output R1, R2, R3: 5 mA at 24 V DC |
|
Physical interface |
Ethernet, 2-wire RS 485 |
|
Connector type |
2 RJ45, 1 RJ45 |
|
Method of access |
Slave Modbus TCP |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, configurable odd, even or no parity |
|
Type of polarization |
No impedance |
|
4 quadrant operation possible |
True |
|
Acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s |
|
Braking to standstill |
By DC injection, Brake chopper integrated |
|
Maximum input current |
13.8 A |
|
Maximum output voltage |
480.0 V |
|
Relative symmetric network frequency tolerance |
5 % |
|
Base load current at high overload |
12.7 A |
|
Base load current at low overload |
16.5 A |
|
Exchange mode |
Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
|
Refresh time |
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
|
Isolation |
Between power and control terminals |
|
Maximum THDI |
<48 % from 80...100 % of load conforming to IEC 61000-3-12 |
|
Assembly style |
Enclosed |
|
Maximum acceleration under shock impact (during operation) |
150 m/s² at 11 ms |
|
Maximum acceleration under vibrational stress (during operation) |
10 m/s² at 13...200 Hz |
|
Maximum deflection under vibratory load (during operation) |
1.5 mm at 2...13 Hz |
|
Permitted relative humidity (during operation) |
Class 3K5 according to EN 60721-3 |
|
Volume of cooling air |
103 m3/h |
|
Overvoltage category |
III |
|
Regulation loop |
Adjustable PID regulator |
|
Insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth |
|
Noise level |
56 dB conforming to 86/188/EEC |
|
Vibration resistance |
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
|
Shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27 |
|
Pollution degree |
2 |
|
Ambient air transport temperature |
-40…70 °C |
|
Ambient air temperature for storage |
-40…70 °C |
Information About ATV930U75N4
The ATV930U75N4 is a variable speed drive belonging to the Altivar Process ATV900 series, specifically the ATV930 model, designed for industrial applications. It is capable of feeding 3-phase synchronous and asynchronous power motors. The drive is engineered to accommodate motors with power ratings of up to 7.5 kW/10 hp for applications with slight overload requirements (up to 120%) and up to 5.5 kW/7.5 hp for applications with significant overload demands (up to 150%). Operating within a rated supply voltage range of 380V to 480V AC, it ensures compatibility with various industrial setups.
Primarily tailored for industrial processes, this variable speed/frequency drive (VSD/VFD) finds application across diverse market segments, including oil and gas, mining, minerals and metals, food and beverage, water and wastewater industries. It boasts high motor performance and offers comprehensive control over various types of coupling arrangements in master/slave configurations.
To ensure operational continuity, even in the event of connection disruptions, the drive incorporates network services. Additionally, features like web server access and data logging facilitate rapid troubleshooting and preventive maintenance, thereby reducing downtime. With advanced connectivity options such as EtherNet/IP and Modbus TCP, the drive seamlessly integrates into automation architectures, enabling enhanced control and monitoring capabilities.
