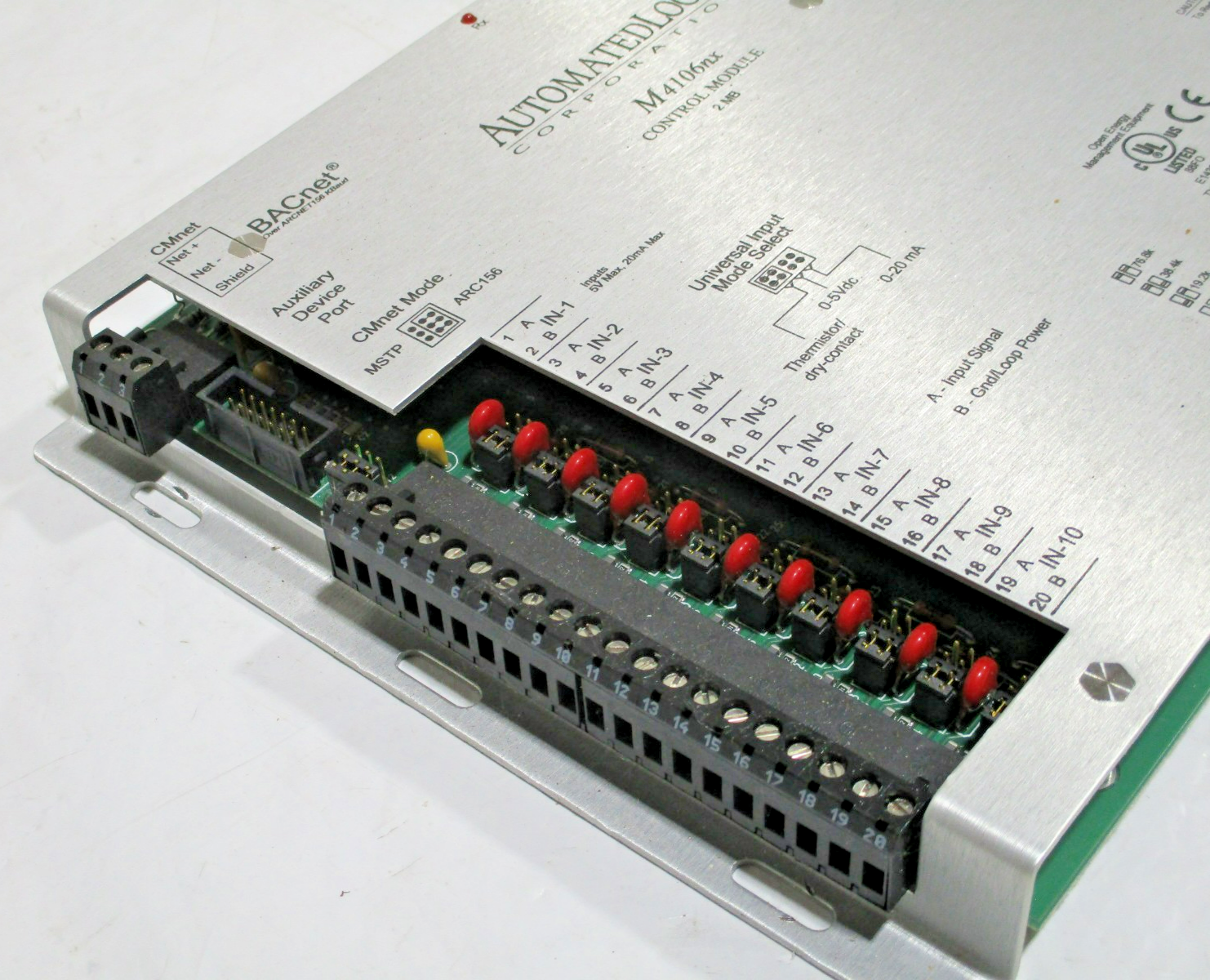

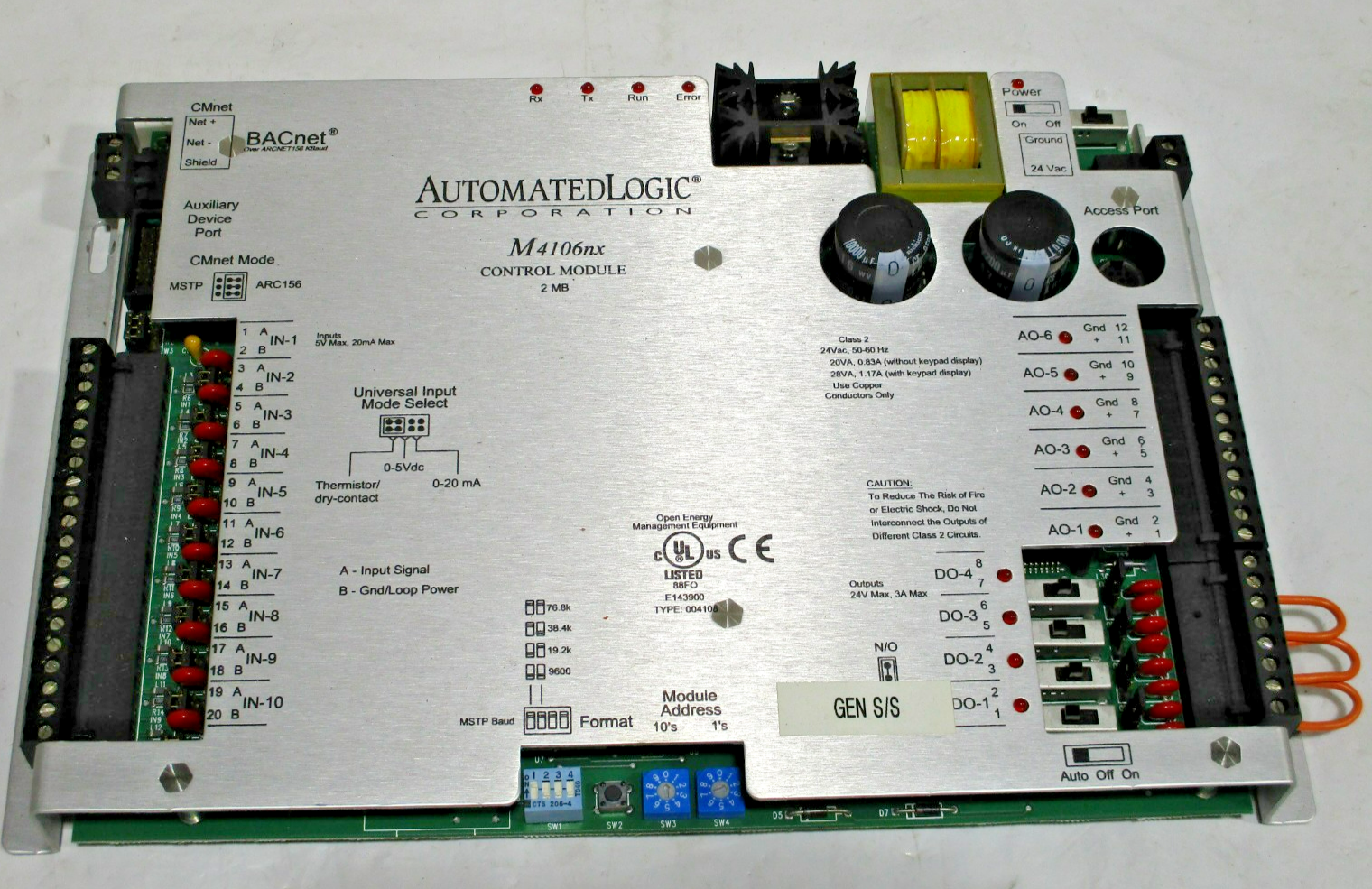

Automated Logic ALC M4106 M-Line Standalone BACnet Control Module 20-Point
- Regular price
- $5,499.00
- Sale price
- $5,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M4106
Description
The Automated Logic (ALC) M4106 is a robust, M-Line standalone control module engineered to govern multi-equipment applications in complex commercial building automation networks. Delivering a highly versatile I/O configuration—including 4 analog outputs, 10 universal inputs, and 6 digital/relay outputs—this 32-bit controller accurately manages intricate central plants, large air handling units, and comprehensive HVAC subsystems. By utilizing native BACnet communications over a high-speed ARCNET network, the module guarantees rapid data processing, seamless interoperability, and strict environmental regulation across expansive commercial facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic (ALC) |
| Category | Building Automation |
| Part Number | M4106 |
| Subcategory | Programmable Controllers |
| Product Series | M-Line |
| Network Protocol | Native BACnet (over 156 Kbps ARCNET) |
| I/O Capacity | 4 Analog Out, 10 Universal In, 6 Digital Out |
| Maximum Expandability | Up to 192 Points |
| Programming Environment | EIKON Graphical Programming |
| Weight | 3.4 lbs |
Information About M4106BCM-MS/TP

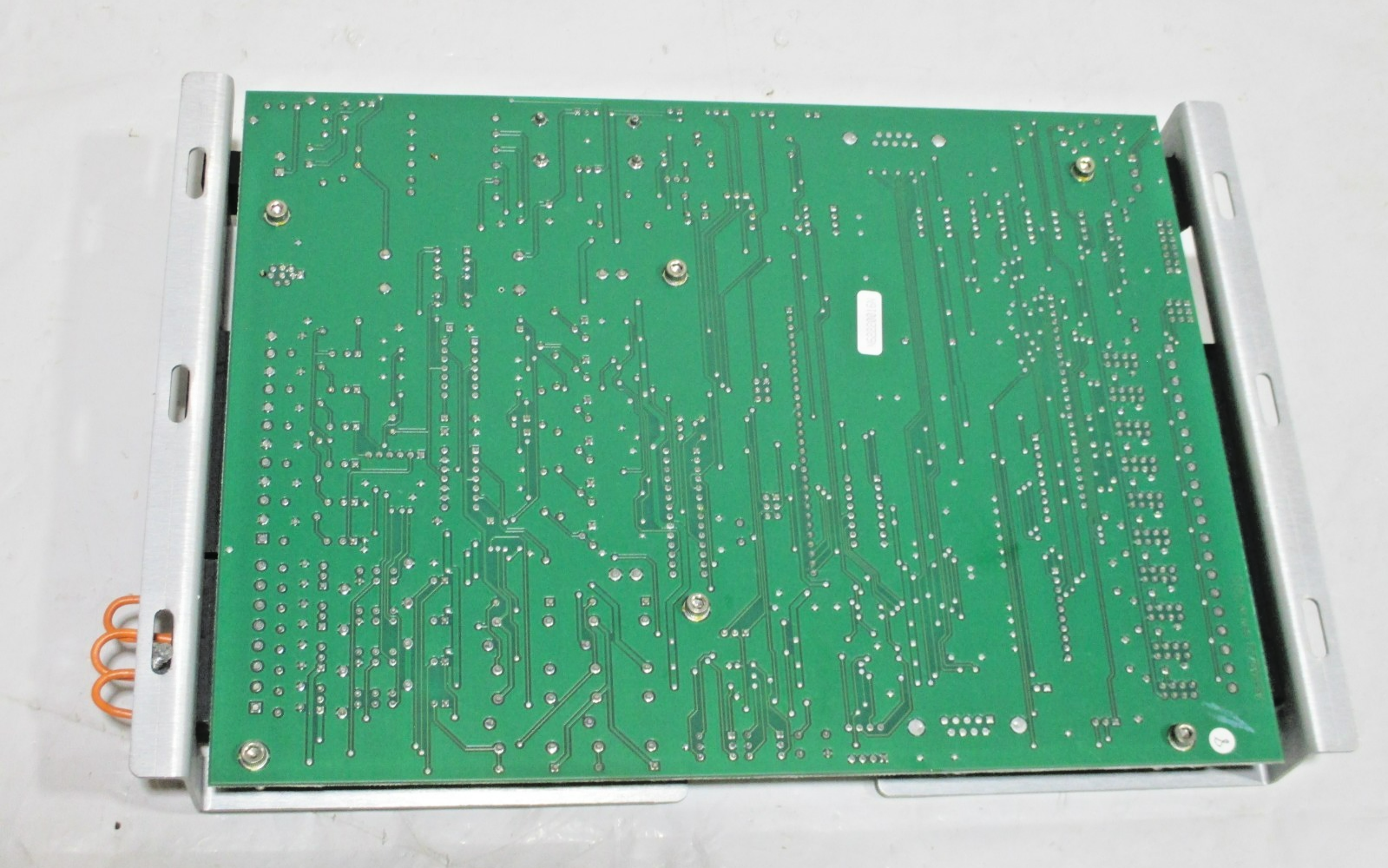

The M4106 is a flagship multi-equipment controller within Automated Logic's native BACnet architecture. It is uniquely designed to scale effortlessly; while it functions powerfully as a standalone node, its modular architecture allows system integrators to add expansion boards, scaling the total capacity up to an impressive 192 I/O points. Building engineers heavily utilize this controller because it fully supports ALC's EIKON graphical programming, which allows users to design, simulate, and document complex control sequences visually without writing raw code. Furthermore, the unit’s printed circuit board is shielded by a rugged aluminum cover that serves as a ground plane, providing the sensitive electronics with exceptional noise immunity and electrical protection.
Key Features:
● Native BACnet Integration: Communicates flawlessly using native BACnet over a high-speed 156 Kbps ARCNET network, ensuring rapid data transmission and total system interoperability.
● Versatile I/O Configuration: Features a high-density footprint consisting of 4 analog outputs, 10 universal inputs, and 6 digital outputs to accommodate diverse HVAC equipment.
● Massive Scalability: Designed with onboard expansion connectors that allow system integrators to incrementally scale the controller's capacity up to a massive 192 I/O points.
● EIKON Graphical Programming: Fully supports Automated Logic's EIKON software, empowering engineers to build, verify, and deploy complex control logic visually without advanced coding.
● Rugged Aluminum Shielding: Enclosed in a heavy-duty aluminum cover that acts as a ground plane, protecting the microprocessor from severe electrical noise and physical damage.
● BACview Interface Support: Features integral support for the BACview local operator interface, allowing facility maintenance teams to monitor and adjust system parameters directly at the panel.
The M4106 delivers the processing power, massive scalability, and network speed required to automate the most demanding mechanical plants and multi-equipment commercial HVAC environments.
