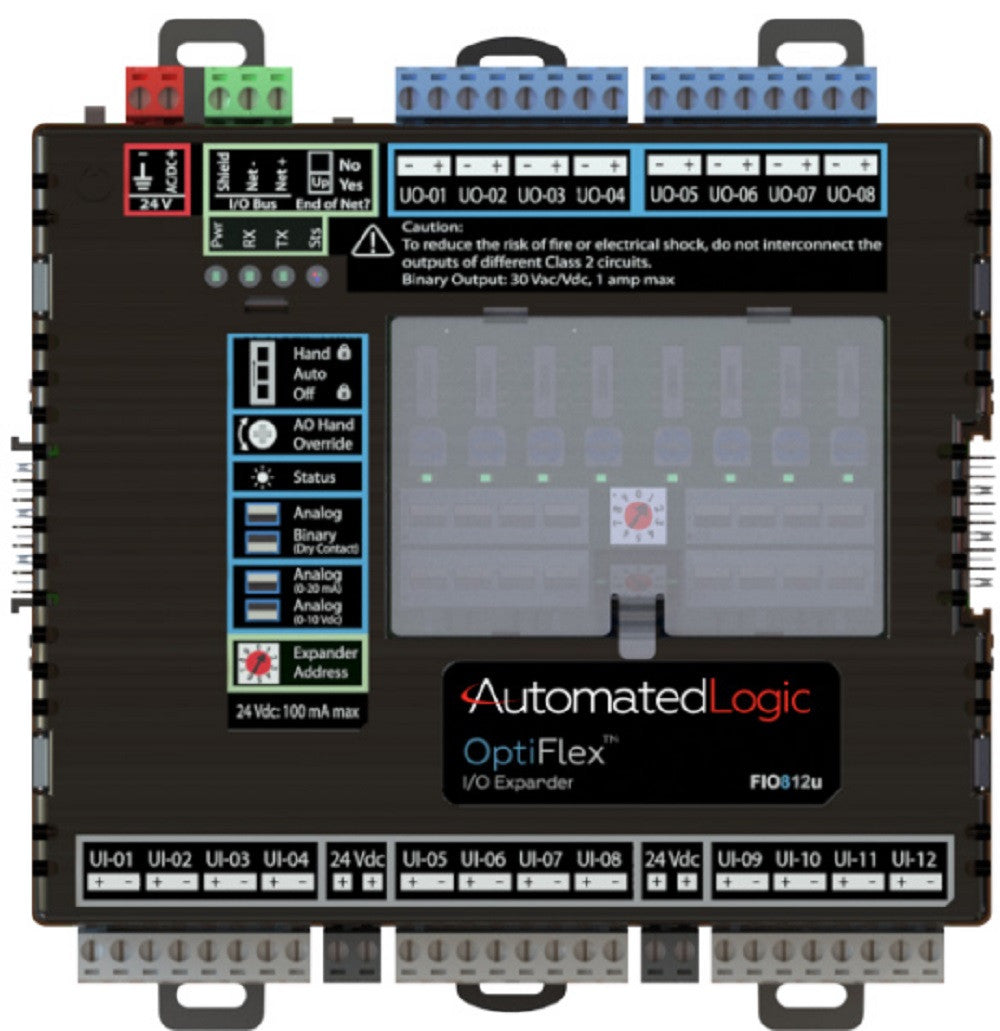

Automated Logic FIO812U OptiFlex I/O Expander with 12 Inputs and 8 Outputs
- Regular price
- $3,259.00
- Sale price
- $3,259.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FIO812U
Description
The Automated Logic FIO812U is an OptiFlex I/O expander designed to add input and output capacity to compatible Automated Logic building controllers. It provides 12 universal inputs and 8 universal outputs for HVAC and building automation applications, with configurable signal types and local output override controls.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | HVAC Controls |
| Part Number | FIO812U |
| Subcategory | I/O Expanders |
| Product Family | OptiFlex |
| Universal Inputs | 12 |
| Universal Outputs | 8 |
| Input Signals | 0–5 VDC, 0–10 VDC, 0–20 mA, RTD, thermistor, dry contact, pulse counter |
| Input Resolution | 16-bit A/D |
| Analog Output Signals | 0–10 VDC, 0–20 mA |
| Binary Output Rating | Up to 1 A, 30 VAC/VDC |
| Output Resolution | 12-bit D/A |
| Power Supply | 24 VAC ±10% or 26 VDC ±10% |
| Mounting | DIN rail or screw mounting |
| Communication | I/O Bus |
| Weight | 0.88 lb |
Information About FIO812U
The FIO812U is part of the Automated Logic OptiFlex I/O Expander family and is intended for integration with OptiFlex BACnet building controllers. Its 12 configurable inputs can accept voltage, current, RTD, thermistor, dry-contact, and pulse-counter signals. The eight outputs can operate as analog or binary outputs, with Hand-Auto-Off switches and potentiometers for manual analog adjustment. The expander supports DIN-rail or screw mounting and can be connected directly to a controller or remotely within the supported system configuration.
Key Features
- 12 Universal Inputs: Supports multiple configurable input signal types for HVAC and building automation equipment.
- 8 Universal Outputs: Provides eight outputs configurable for analog or binary operation.
- Configurable Inputs: Accepts 0–5 VDC, 0–10 VDC, 0–20 mA, RTD, thermistor, dry contact, and pulse-counter signals.
- Analog Outputs: Supports 0–10 VDC and 0–20 mA analog devices.
- Binary Outputs: Uses built-in relays for switching compatible external devices.
- Hand-Auto-Off Control: Provides local override switches for each output.
- DIN-Rail Mounting: Allows installation on a standard DIN rail or by screw mounting.
- Controller Expansion: Adds I/O capacity to compatible OptiFlex BACnet building controllers.
The FIO812U delivers the reliability and precision required for expanding I/O capacity in HVAC and building automation control systems.
