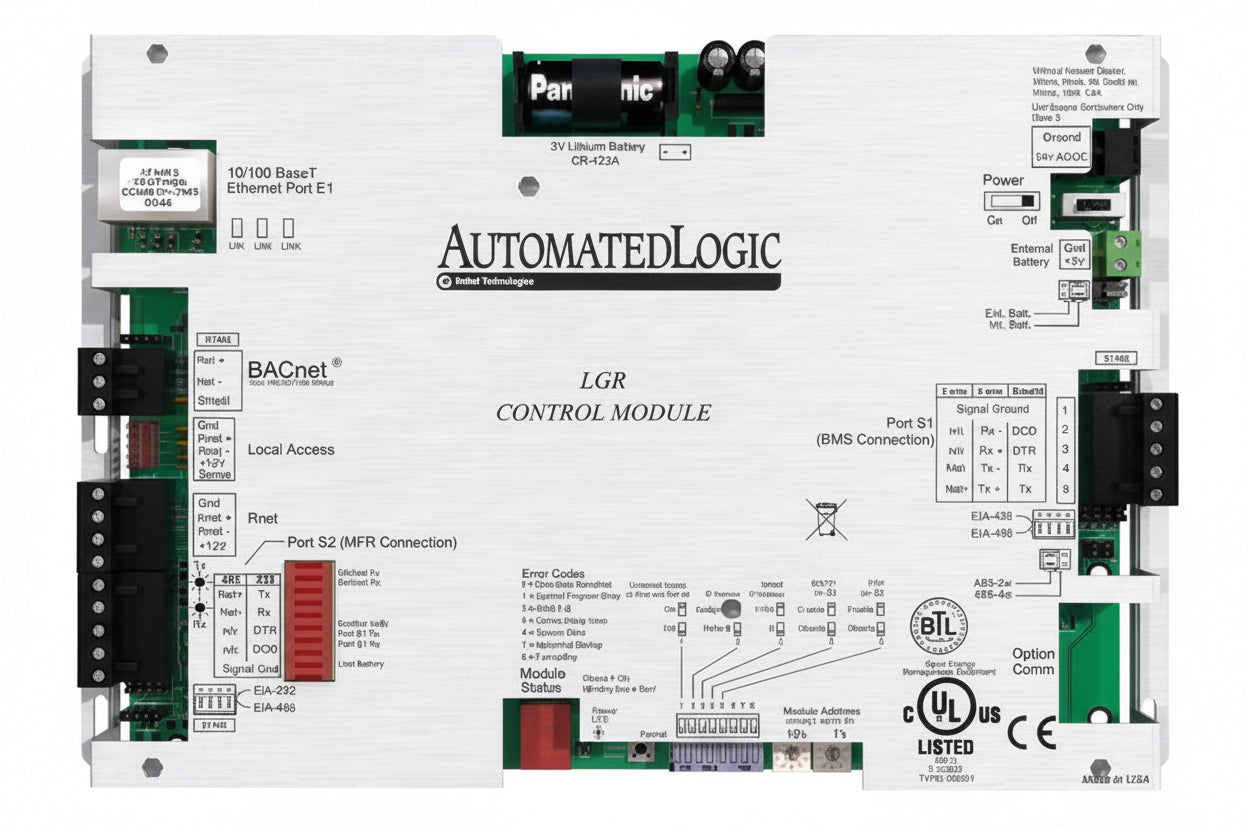

Automated Logic LGR25 BACnet Network Router and Control Module
- Regular price
- $3,799.00
- Sale price
- $3,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGR25
Description
The Automated Logic LGR25 is a high-speed BACnet network router and gateway designed to connect large numbers of control modules to a BACnet/IP backbone. It provides routing and protocol translation across BACnet/IP, BACnet-over-Ethernet, ARCNET, MS/TP, and BACnet PTP networks while supporting programmable control strategies for system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | Computer |
| Part Number | LGR25 |
| Subcategory | Networking Router |
| Product Type | Control Module / Network Router |
| Communication Protocols | BACnet/IP, BACnet-over-Ethernet, ARCNET 156 Kbps, BACnet MS/TP, BACnet PTP |
| Ethernet Interface | 10/100Base-T Fast Ethernet |
| Processor | True 32-bit microprocessor with cache memory |
| SDRAM | 16 MByte battery-backed SDRAM, 32-bit wide; 12 MBytes available for use |
| Flash Memory | 8 MByte, 32-bit wide |
| Local Interface | Rnet port and EIA-232 port |
| Real-Time Clock | Battery-backed |
| Battery | 10-year lithium battery |
| Operating Temperature | -20°F to 140°F |
| Input Power | 24 VAC |
| Frequency | 50–60 Hz |
| Power Consumption | 10 W |
| Replacement Model | ME-LGR25 |
| Weight | 2.00 lbs |
Information About LGR25
The LGR25 is an Automated Logic control module designed for building automation network routing and high-level system integration. Its 32-bit processing architecture, Fast Ethernet controller, serial communications co-processor, and ARCNET co-processor support demanding communications and protocol translation tasks. The unit supports Automated Logic control programs, Rnet-connected room sensors and BACview6 interfaces, and local access through an EIA-232 port. Battery-backed memory and real-time clock functions allow application data, trends, programs, and operating functions to remain available through power interruptions.
Key Features:
- BACnet Routing: Routes communications between BACnet/IP and field-device subnetworks using supported BACnet media.
- Fast Ethernet: Provides 10/100Base-T Ethernet connectivity for high-speed BACnet/IP backbone communication.
- Multi-Network Support: Supports BACnet/IP, BACnet-over-Ethernet, ARCNET 156 Kbps, MS/TP, and BACnet PTP communications.
- Protocol Translation: Supports open and proprietary protocol translator drivers for integration with third-party equipment.
- 32-Bit Processing: Uses a high-speed true 32-bit microprocessor with cache memory for demanding routing and control applications.
- Memory Capacity: Provides 16 MByte battery-backed SDRAM and 8 MByte Flash memory for applications, trends, data, and field upgrades.
- Local Interfaces: Includes an Rnet port for Automated Logic room sensors and BACview6, plus an EIA-232 port for enhanced local access.
- Power Recovery: Battery-backed memory and real-time clock support continuity of operation following power interruptions.
The LGR25 delivers the reliability and precision required for building automation network routing and system integration.
