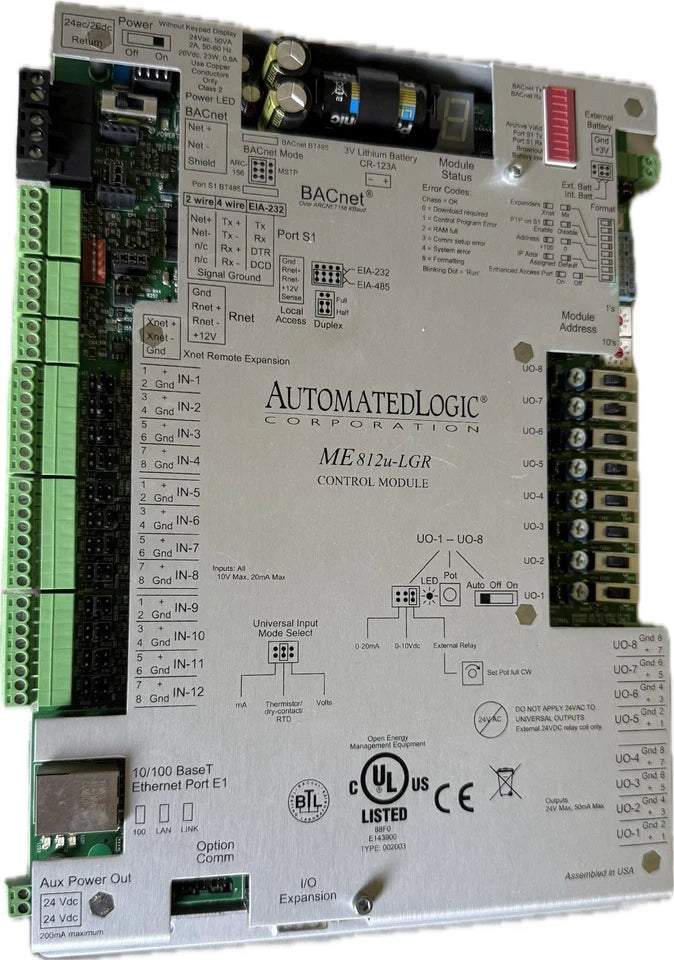

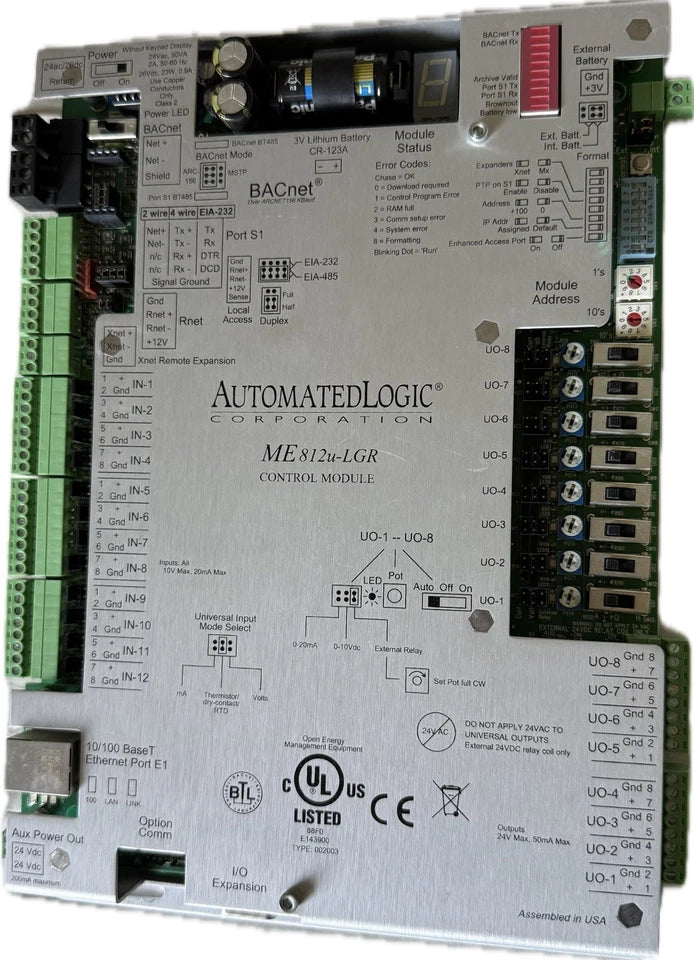

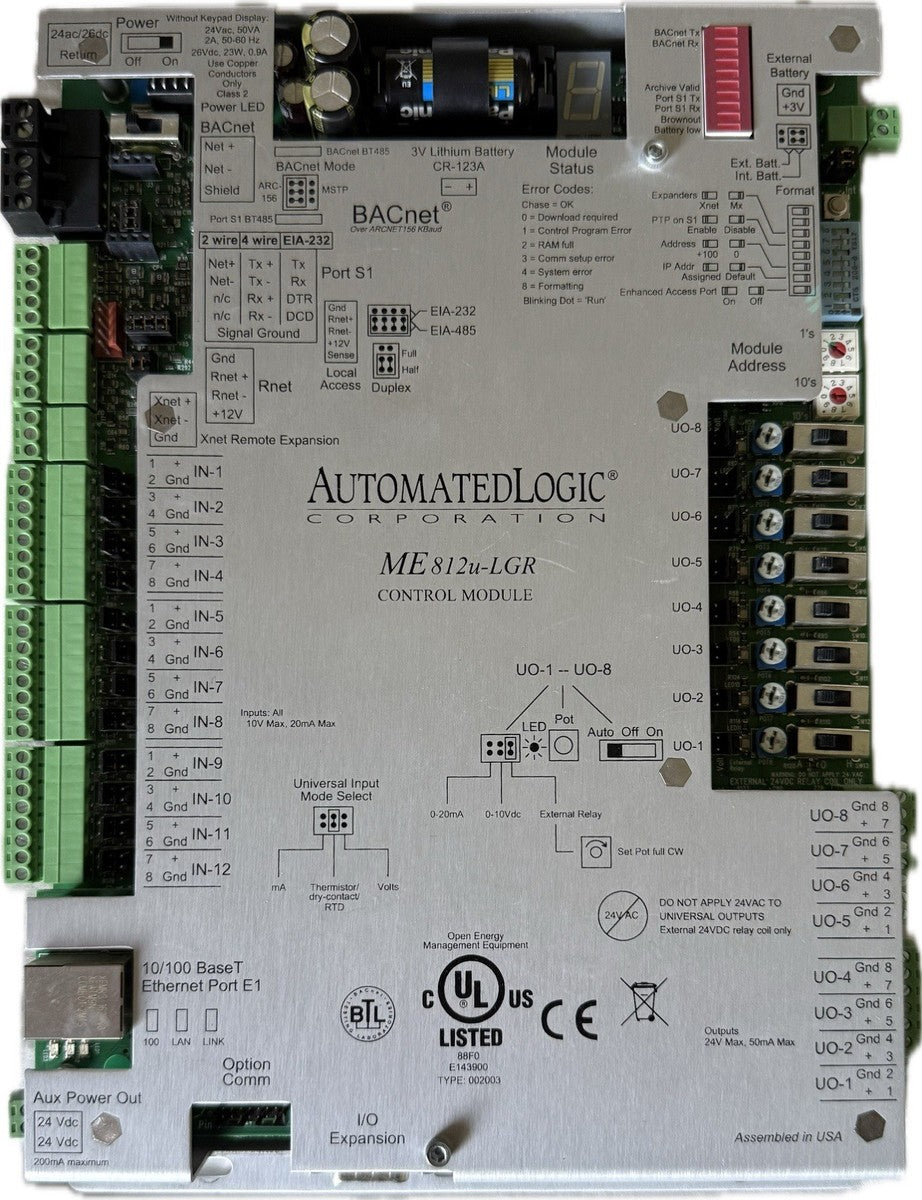

Automated Logic ME812U-LGR BACnet Programmable Controller 12 Inputs 8 Outputs Ethernet
- Regular price
- $7,384.00
- Sale price
- $7,384.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ME812U-LGR
Description
The Automated Logic ME812U-LGR is a high-performance programmable controller designed for advanced building automation and HVAC system management. It supports BACnet communication and features extensive I/O capabilities, including 12 universal inputs and 8 universal outputs for flexible control applications. With multiple communication ports and Ethernet connectivity, this controller enables seamless integration across diverse automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | Building Automation |
| Part Number | ME812U-LGR |
| Subcategory | System Controllers |
| Series | ME812U Series |
| Communication Protocol | BACnet (IP, MS/TP, PTP) |
| Power Supply | 24 VAC / 26 VDC |
| Frequency | 50/60 Hz |
| Processor | 32-bit Motorola PowerPC |
| Memory | 8 MB Flash, 16 MB SDRAM (Battery-backed) |
| Universal Inputs | 12 (14-bit A/D, multi-signal support) |
| Universal Outputs | 8 (0-10V, 0-20mA, relay drive) |
| Ethernet Port | 10/100 Mbps |
| EIA-485 Port | ARCNET / BACnet MS/TP |
| EIA-232/485 Port | Configurable (BACnet PTP support) |
| Rnet Port | RS Sensors and BACview6 Displays |
| Xnet Port | 500 Kbps for I/O Expansion |
| Expansion Capability | Up to 5 MEx Modules |
| Operating Temperature | -20°F to 140°F (-29°C to 60°C) |
| Humidity Range | 10–90% Non-condensing |
| Protection | Built-in Surge and Transient Protection |
| Certifications | UL916, CE, FCC Class A |
| Enclosure | Aluminum Cover with Removable Terminals |
| Dimensions | 7.5” W x 11.31” H x 1.25” D |
| Weight | 1.4 lb |
Information About ME812U-LGR
The ME812U-LGR is part of the Automated Logic ME812U series, engineered for scalable and high-capacity building automation control within BACnet-based systems. It incorporates a powerful 32-bit Motorola PowerPC microprocessor along with a dedicated communication co-processor for efficient data handling and system responsiveness. The controller supports BACnet/IP, BACnet MS/TP, and BACnet PTP protocols, ensuring compatibility with a wide range of third-party and native devices. It includes multiple communication interfaces such as Ethernet, EIA-485, and configurable EIA-232/485 ports, along with Rnet and Xnet ports for sensor integration and I/O expansion. Designed for demanding commercial environments, it provides reliable control, monitoring, and expansion capabilities for complex HVAC and facility systems.
Key Features:
- BACnet Multi-Protocol Support: Supports BACnet/IP, BACnet MS/TP, and BACnet PTP for flexible network integration.
- High I/O Capacity: Includes 12 universal inputs and 8 universal outputs for comprehensive control and monitoring.
- Advanced Microprocessor Architecture: Utilizes a 32-bit Motorola PowerPC processor with communication co-processors for high performance.
- Multiple Communication Ports: Features Ethernet, EIA-485, EIA-232/485, Rnet, and Xnet ports for extensive connectivity options.
- Universal Input Compatibility: Supports voltage, current, thermistor, RTD, and dry contact inputs with pulse counting capability.
- Configurable Universal Outputs: Provides analog and relay output options with HOA switches for manual control.
- I/O Expansion Capability: Supports up to five MEx expansion modules for scalable system design.
- Robust Protection and Reliability: Includes built-in surge protection and operates in wide environmental conditions.
The ME812U-LGR delivers the reliability and precision required for complex building automation and HVAC control systems.
