Automated Logic OF1628-NR OptiFlex BACnet Building Controller with Expandable I/O
- Regular price
- $8,642.00
- Sale price
- $8,642.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OF1628-NR
Description

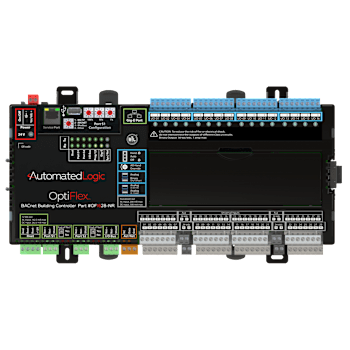

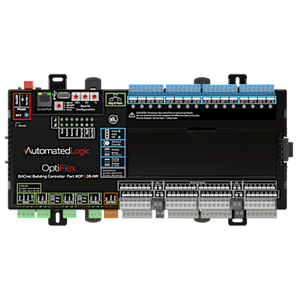

The Automated Logic OF1628-NR is a high-performance BACnet building controller engineered for complex HVAC and facility automation applications. Designed for the WebCTRL® Building Automation System, the Automated Logic OF1628-NR combines powerful processing, extensive onboard input/output capability, and flexible networking to provide reliable monitoring and control of multiple building systems. Its scalable architecture supports demanding commercial and industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automated Logic |
| Category | PLCs/Machine Control |
| Part Number | OF1628-NR |
| Subcategory | PLC Module/Rack |
| Product Type | BACnet Building Controller |
| Series | OptiFlex™ |
| Controller Profile | BACnet Building Controller (B-BC) |
| Communication Protocols | BACnet/IP, BACnet/Ethernet, BACnet MS/TP, ARCNET |
| Power Supply | 24 VAC ±15% or 24 VDC ±10% |
| Frequency | 50/60 Hz |
| Universal Inputs | 28 Configurable |
| Universal Outputs | 16 Configurable |
| Maximum Expansion | Up to 9 OptiFlex™ FIO Expansion Modules |
| Maximum I/O Capacity | 224 Total Points |
| Third-Party Integration | Up to 1,500 BACnet Points and 200 Modbus Points |
| Programming Software | EIKON® |
| Mounting | DIN Rail or Screw Mount |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Weight | 1.22 kgs |
Information About OF1628-NR
The OF1628-NR is an OptiFlex™ BACnet Building Controller developed by Automated Logic for advanced building automation and energy management applications. It supports native BACnet/IP, BACnet/Ethernet, BACnet MS/TP, and ARCNET communications, allowing seamless integration with HVAC equipment, energy systems, and third-party devices. The controller is graphically programmed using EIKON® software and integrates directly with the WebCTRL® platform for centralized operation, diagnostics, and scheduling. Designed for large mechanical systems and central plant applications, it also supports modular expansion through OptiFlex™ I/O modules, allowing installation sizes to grow without replacing the primary controller.
Key Features:
- Native BACnet Communications: Supports BACnet/IP, BACnet/Ethernet, BACnet MS/TP, and ARCNET protocols for broad interoperability.
- High-Capacity Processing: Equipped with a powerful processor and large memory to execute sophisticated control strategies.
- Flexible Onboard I/O: Includes 28 configurable universal inputs and 16 configurable universal outputs for diverse HVAC applications.
- Expandable Architecture: Supports up to nine OptiFlex™ FIO expansion modules for a maximum of 224 I/O points.
- WebCTRL Integration: Provides seamless integration with the WebCTRL Building Automation System for centralized management.
- Third-Party Connectivity: Supports up to 1,500 BACnet points and 200 Modbus points for external system integration.
- Advanced Programming: Uses EIKON® graphical programming software for custom HVAC control sequences.
- Multiple Mounting Options: DIN rail or screw mounting simplifies installation in equipment panels and control cabinets.
The OF1628-NR delivers the reliability and precision required for large-scale HVAC equipment control and integrated building automation systems.
